Bypass Installation; Figure 4. Example Of Nature - Zodiac Pool Systems Nature2 Fusion soft Installation And Operation Manual

Nature 2 Fusion Soft
Flow
Figure 4. Example of Nature
3.5

Bypass Installation

If plumbing size is greater than 2" (5 cm) diameter or if fl ow rates are greater than 120 gpm (450 lmp), the vessel
MUST be plumbed on by-pass (see Figure 5). It is recommended that 2" (5 cm) PVC Schedule 40 pipe is used to
plumb the by-pass line. A control valve must be installed to regulate the fl ow through the vessel. It can be installed on
the inlet side of the vessel or between the inlet and discharge side of the bypass piping.
1. Make sure the pool pump is turned off.
2. Remove the temporary cap on the cartridge side of the vessel, and install the Nature
in the box. Do not throw out the cap. It will be used for winterization of the system.
3. Locate a suitable section of pipe in the by-pass line to install the vessel, approximately 17" (43 cm) long, that
conforms to the installation requirements outlined in Section 3.2.
" (35 cm) section of the 2" (5 cm) pipe to insert the vessel (see Figure 3).
4. Cut out a 13 /
7
8
5. Install tees in the return line to allow water to be diverted to the Nature
6. Connect the bypass line from the fi rst tee to the inlet of the vessel and from the outlet of the vessel to the second
tee.
Nature Fusion Soft Installation and Operation Manual
2®
Optional ChemLink or
other ORP Control
Heater
Flow/Temperature/
Salinity Sensor
Flow
Flow/Temperature/
Salinity Sensor
Pool Return

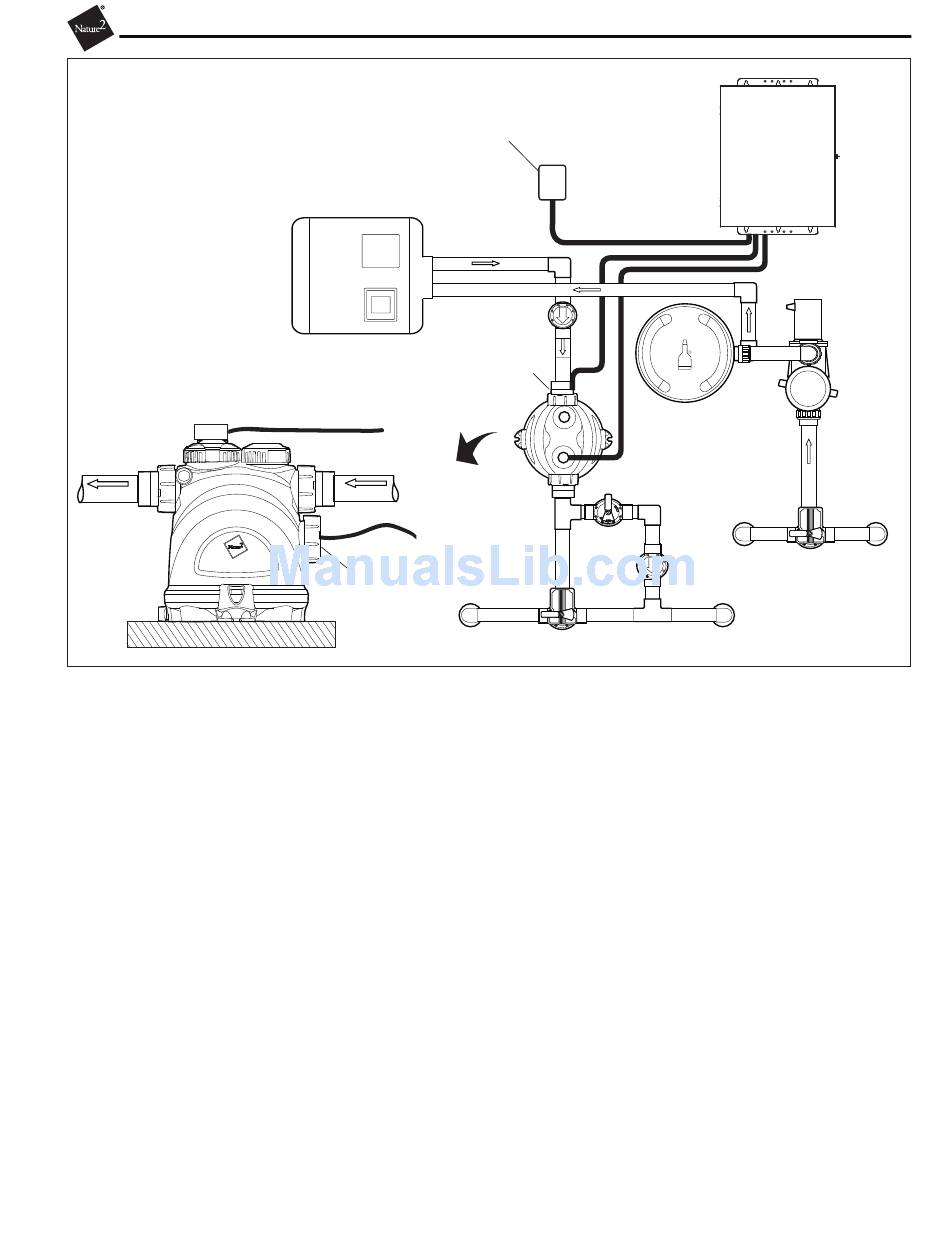

Fusion Soft Installation With Options
