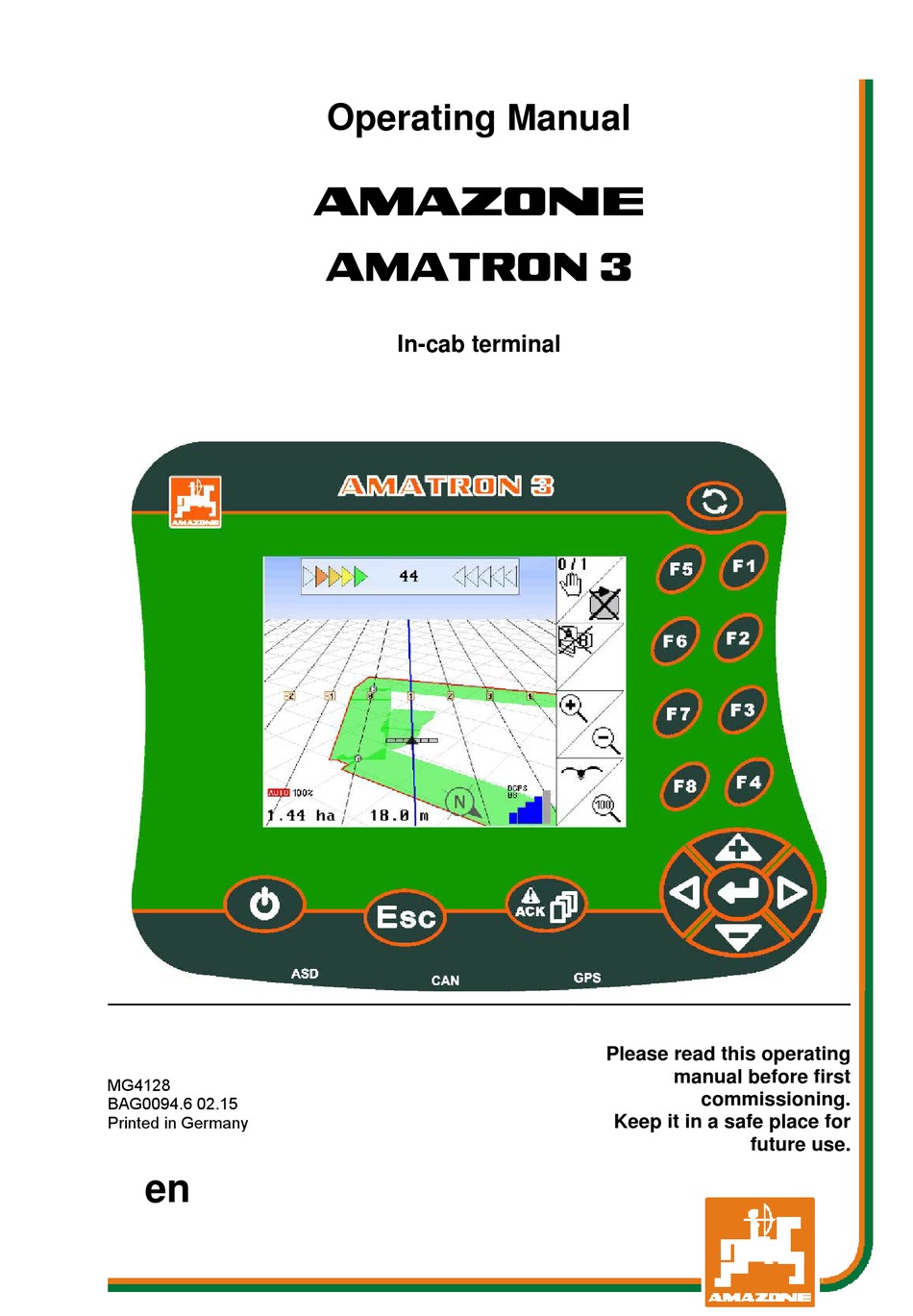

Operating Manual
az

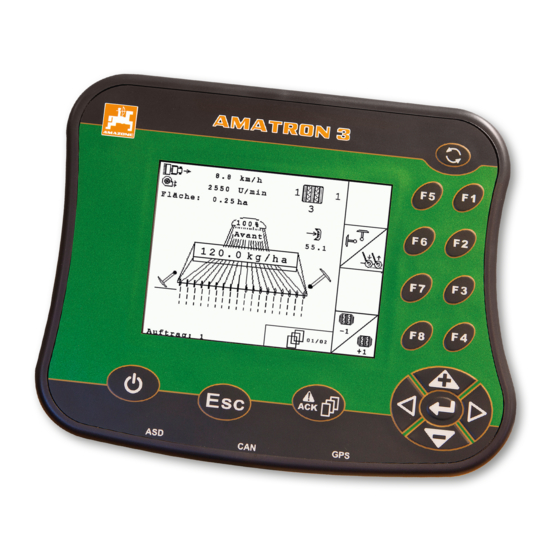

AMATRON 3
In-cab terminal
Please read this operating
manual before first
MG4128
commissioning.
BAG0094.6 02.15
Printed in Germany
Keep it in a safe place for
future use.
en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMATRON 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amazone AMATRON 3

Summary of Contents for Amazone AMATRON 3

  • Page 1 Operating Manual AMATRON 3 In-cab terminal Please read this operating manual before first MG4128 commissioning. BAG0094.6 02.15 Printed in Germany Keep it in a safe place for future use.
  • Page 2 Only in this way could you be satisfied both with the machine and with yourself. This goal is the purpose of this instruction manual. Leipzig-Plagwitz 1872. AMATRON 3 BAG0094.6 02.15...
  • Page 3 + 49 5405 501-0 E-mail: amazone@amazone.de Spare part orders Spare parts lists are freely accessible in the spare parts portal at www.amazone.de. Please send orders to your AMAZONE dealer. Formalities of the operating manual Document number: MG4128 Compilation date: 10.14 ...
  • Page 4 We update our operating manuals regularly. Your suggestions for improvement help us to create ever more user-friendly manuals. Send us your suggestions by fax. AMAZONEN-WERKE H. DREYER GmbH & Co. KG Postfach 51 D-49202 Hasbergen Tel.: + 49 5405 501-0 E-mail: amazone@amazone.de AMATRON 3 BAG0094.6 02.15...

  • Page 5: Table Of Contents

    GPS-Maps importing application maps (optional) ..............15 Software version ........................16 USB interface ......................... 16 Rating plate and CE marking ....................16 Operation of the AMATRON 3 terminal ............ 17 5.1.1 Selection of the AMATRON 3 application ................17 Keys and function fields ......................18 5.2.1...
  • Page 6 GPS Track im Arbeitsmenü ....................86 12.3 Use of the GPS track......................87 12.4 Creating lead tracks ......................88 12.4.1 Lead tracks via AB guide pattern or identical ................ 88 12.4.2 Lead tracks via A+ guide pattern................... 88 AMATRON 3 BAG0094.6 02.15...
  • Page 7 Guide pattern ......................... 89 12.5.2 Travel beds ..........................90 12.6 Light bar ..........................91 Fault ......................92 Maintenance ....................96 14.1 USB stick data management ....................96 14.2 Carrying out a software update ....................97 14.3 Storage ........................... 97 AMATRON 3 BAG0094.6 02.15...

  • Page 8: User Information

    Lists Lists without an essential order are shown as a list with bullets. Example: • Point 1 • Point 2 Number items in diagrams Numbers in round brackets refer to the item numbers in the diagrams. AMATRON 3 BAG0094.6 02.15...

  • Page 9: General Safety Instructions

    Non-compliance with these instructions can cause faults on the machine or in the environment. NOTE Indicates handling tips and particularly useful information. These instructions will help you to use all the functions of your machine to the optimum. AMATRON 3 BAG0094.6 02.15...

  • Page 10: Safety Precautions For The Gps Application

    Safety precautions for the GPS application WARNING In automatic mode, the spread fan of the fertiliser spreader pos- es a danger to persons in the working area. The danger may arise through the automatic opening of the shutter. AMATRON 3 BAG0094.6 02.15...

  • Page 11: Installation Instructions

    The software is configured to have the GPS antenna mounted on the tractor; see page 77. • The AMATRON 3 can be connected with the tractor basic equipment or with the ISOBUS wiring. • The tractor's basic equipment (console with distributor) must be...

  • Page 12: Isobus / Isobus Light

    Installation instructions ISOBUS / ISOBUS Light Fig. 1 For machines that are connected to an ISOBUS tractor using the ISOBUS light cabling: • the ISOBUS function of the tractor terminal must be deactivated. Connecting the second terminal AMATRON 3 BAG0094.6 02.15...

  • Page 13: Cabling Of External Light Bars And Simulated Tractor Ecu

    Installation instructions Cabling of external light bars and simulated tractor ECU Lightbar Simulierte Traktor ECU Lightbar und simulierte Traktor ECU AMATRON 3 BAG0094.6 02.15...

  • Page 14: Product Description

    Product description Product description The AMATRON 3 can be applied in two operating modes, depending on the machine equipment: • As AMAZONE terminal for AMAZONE machines (AMABUS). • As ISOBUS terminal for all machines with ISOBUS equipment (ISOBUS certification according to AEF 2013).

  • Page 15: Gps Application

    Fields for which the application maps are imported, are processed according to the stored set values. The set values can be edited after import. The application is integrated into the GPS switch, see page 86. A 50 hour test version has been released. AMATRON 3 BAG0094.6 02.15...

  • Page 16: Software Version

    The GPS-Switch has a USB interface for data exchange with a USB memory stick. Rating plate and CE marking The following diagrams show the positions of the rating plate and the CE marking. The rating plate shows: (1) Machine ID no.: (2) Type AMATRON 3 BAG0094.6 02.15...

  • Page 17: Operation Of The Amatron 3 Terminal

    Operation of the AMATRON 3 terminal Operation of the AMATRON 3 terminal The AMATRON 3 always starts in the operation mode which was started last. Alternatively • the operating mode can be selected after switching the machine ο ISO-VT (ISOBUS) ο...

  • Page 18: Keys And Function Fields

    Operation of the AMATRON 3 terminal Keys and function fields The functions indicated at the right display edge by a function field are controlled via the two rows of keys to the right of the display. AMABUS • Quadratic function field (A) →...
  • Page 19 Operation of the AMATRON 3 terminal On / Off (Always switch off the AMATRON 3 when driving on public roads). Switching between the applications • Return to last menu • Switch between work menu - main menu • Cancel entry •...

  • Page 20: Shift Key

    Operation of the AMATRON 3 terminal 5.2.1 Shift key The Shift key is required in the Work menu of the implement control. Active in work menu and lot data menu. • The shift key is located on the back of the unit (1).

  • Page 21: Entries On The Terminal

    Operation of the AMATRON 3 terminal Entries on the terminal For operation of the terminal, the func- tion fields appear in this operating manual in order to make clear that the key for the respective function field must be pressed.

  • Page 22: Entering Numbers

    Operation of the AMATRON 3 terminal 5.3.2 Entering numbers • Increment the number • Decrement the number Selection of the decimal place • • Adjust the selected dec- imal place The limit values for the entry are displayed on the right of the input value: To enter negative values (e.g.

  • Page 23: Toggle Function

    Operation of the AMATRON 3 terminal 5.3.4 Toggle function Switching functions on/off: • Press function key (2) once → Function on (1). • Again press function key → Function off. 5.3.5 Entry for ISOBUS, terminal setup and TaskController (1) Entry by selecting a function line.

  • Page 24: Implement Control

    Implement control Switch to the implement control control menu Operating mode as ISO-VT terminal The AMATRON 3 can be used as an ISOBUS terminal, if the ma- chines meet the corresponding requirements. Please also observe the operating instruction of the corresponding ISOBUS software for the implement control.

  • Page 25: Terminal Setup

    (see page 34) • Configure the start application terminal (see page 34) • Configure the parallel operation terminal (see page 35) • Terminal program manager (see page 35) Return to the terminal setup from the sub-menu AMATRON 3 BAG0094.6 02.15...

  • Page 26: Terminal Settings

    • Set the decimal separator (only ISOBUS) • Set the date format • ASD-Baud rate • ISOBUS- UT number (only ISOBUS) → When using multiple terminals, assign a number to the AMATRON 3 for identifica- tion. AMATRON 3 BAG0094.6 02.15...

  • Page 27: Tractor Ecu (Simulated)

    A separate connecting cable is required for this purpose, see Page 13. Tractor ECU created and active - Tractor ECU created and not active - Display selectable tractors: Display tractor data: • create additional tractor • edit selected tractor • delete selected tractor AMATRON 3 BAG0094.6 02.15...
  • Page 28 ο before the axis – positive value ο after the axis - negative value • C: Position of the trailer coupling / lower link mounting points in relation to the rear axle in the longitudinal direction AMATRON 3 BAG0094.6 02.15...
  • Page 29 100 m: 2. Drive straight ahead for exactly 100 m, stop. → The pulses determined are displayed. → Display current speed PTO shaft settings • Enter number of pulses per revolution. → Display current PTO shaft speed AMATRON 3 BAG0094.6 02.15...

  • Page 30: Aux-N Assignment (Isobus)

    Alternatively, select a key assign- ment in the menu confirm the selection. → The selected key is assigned to the select- ed function. • Delete all assignments • Delete an assignment • Back AMATRON 3 BAG0094.6 02.15...
  • Page 31 Terminal Setup WARNING Performing unintended functions due to incorrect operation with a freely configurable multi-function stick. After starting the AMATRON 3, the assignment of the connected mul- ti-function stick is displayed. 1. Carefully check the key assignment. Confirm the key assignment.

  • Page 32: License Manager

    Terminal Setup License manager • After new licenses have been purchased, select the application for activation and en- ter the code number provided. • The remaining time is displayed for all 50 hour test versions. AMATRON 3 BAG0094.6 02.15...

  • Page 33: Terminal Diagnosis

    Reset the AMATRON 3 Terminal settings: all settings in the AMATRON 3 (language, etc) are reset. Factory settings: reset the GPS switch / track and AMATRON 3. the whole Amatron 3 with all of its applica- tion is reset. •...

  • Page 34: Toggle Button Settings

    Terminal start application Start the terminal with the Boot menu • • Start the terminal in AMABUS mode • Start the terminal in ISOBUS mode AMATRON 3 BAG0094.6 02.15...

  • Page 35: Configure The Parallel Operation Terminal

    GPS input on the Terminal and the GPS receiver, see page 13. • Select the GPS driver corresponding to the GPS receiver ο Deactivated ο GPS_A100/101 ο GPS_NovAtel ο GPS_SGR1 ο GPS_STD (standard) To configure the GPS receiver, see page 50. AMATRON 3 BAG0094.6 02.15...

  • Page 36: Taskcontroller Task Management

    The USB stick must always be plugged in during operation. Display - USB stick not inserted / Task Data folder not created: The TaskController consists of the • Jobs • Master data AMATRON 3 BAG0094.6 02.15...
  • Page 37 USB-Stick, delete data. Set TaskController mode, see page 45 ο • Save data to USB stick. Save the data before removing the USB stick in all cases. Otherwise you may lose all of the task data. AMATRON 3 BAG0094.6 02.15...

  • Page 38: Jobs

    • copy job / split ended task • back Empty jobs cannot be changed: Open marked job. Edit job Starting a new or finished job: • Start the marked job before starting work • back AMATRON 3 BAG0094.6 02.15...
  • Page 39 • Entries in the started job ο Working phases ο Adjust the target quantity and allocate the implement ο Customer ο Farm ο Field ο Worker responsible ο Tractor ο Driver ο Type of work AMATRON 3 BAG0094.6 02.15...

  • Page 40: Master Data

    The sub-menus can be called up separately. Changes cannot be carried out here. • Open highlighted object • Search for object • Create new object • Delete object • Edit object • back (always back to the main page) AMATRON 3 BAG0094.6 02.15...

  • Page 41: Setpoints

    Jobs can contain application maps Display: digit, unit, medium • Setpoints can be imported via GPS maps (shape file). Display: GPS maps • Setpoints can be provided through the ASD interface. Display: ASD Enter setpoints Value Unit Medium AMATRON 3 BAG0094.6 02.15...

  • Page 42: Enter Implements

    Amazone eqpt. geometry settings • Implement active • Implement not active • Create new implement • Change settings for an existing im- plement • Delete highlighted implement • Back and confirm the activation of a new or changed implement AMATRON 3 BAG0094.6 02.15...
  • Page 43 Fertiliser spreader (AMABUS): To adjust the switch-off point of the fertiliser spreader, the GPS X1 value can be manipulated. Manipulate the switch-on point over the headland distance, see page AMATRON 3 BAG0094.6 02.15...
  • Page 44 Cayena 8000 6001-C Citan 9000 12001 1107 1257 Condor 12000 15001 1107 1257 12001 RoteC RoteC+ 15001 1105 Especially for seed drills, the GPS X1 value should be entered / de- termined with the maximum accuracy. AMATRON 3 BAG0094.6 02.15...

  • Page 45: Working With Or Without The Taskcontroller

    Only the connected implement is displayed. ο Possible to work without a USB stick. This is how to change the mode of the TaskCon- troller application: • with job management using TaskController • without job management using TaskController (implement-internal job management) AMATRON 3 BAG0094.6 02.15...

  • Page 46: Implements With Amabus Software And Taskcontroller (Iso)

    • settings, see page 42 8.3.2 Implements without TaskController Instead of the TaskController, the screen to enter the implement geome- try appears. Current implement • AMAZONE implement geometry settings, see page 42 • Switch TaskController on/off AMATRON 3 BAG0094.6 02.15...

  • Page 47: Overview Gps Application

    Coupling data of the tractor: (automatic with ISOBUS or TECU entry simulat- The main menu is divided into submenus into which the required data must be entered before beginning work. • Lot data menu • Application information • GPS-Switch menu AMATRON 3 BAG0094.6 02.15...

  • Page 48: Work Menu

    GPS switch Work menu Working data from Implement control Work menu • Display depends on the software version • Work data is only shown when Section Con- trol and the implement control are running on one terminal. AMATRON 3 BAG0094.6 02.15...
  • Page 49 Display of partially treated field in the work menu. (2D mode) Display of treated headlands with parallel driving support systems GPS track in the Work menu. (3D mode) Display in 3D, Application maps loaded in the Work menu. AMATRON 3 BAG0094.6 02.15...

  • Page 50: Gps Diagnosis Menu

    The light bar must be deactivated in the Terminal Program Man- ager sub-menu in the Setup Terminal, see page 35. • Connect the GPS receiver directly to the AMATRON 3 (remove the light bar). GPS receiver A100 / A101, NovAtel, standard •...
  • Page 51 Output rate of 5 Hz is standard → Output rate 10 Hz • Confirm output rate • GPS data display The GPS diagnosis shows current data about the GPS signal and the raw data for troubleshooting. AMATRON 3 BAG0094.6 02.15...

  • Page 52: Hierarchy Of The Gps-Switch Menu

    Compass Overlap tolerance of field Import 2D <-> 3D border Export Set/calibrate Machine modelling reference point Zoom Detect lots Setup GPS Free memory Acoustic field border switch Memory reor- warning (Adjustment ganisation GPS track) Preview time AMATRON 3 BAG0094.6 02.15...

  • Page 53: Definition Of The Gps Parameters

    Thus the worked area is also not marked, which means that neither automatic mode nor creating a field border is possible. Poor GPS or malfunctions always cause the GPS-Switch to switch over to manual mode! Switching to manual mode always causes the machine to switch off. AMATRON 3 BAG0094.6 02.15...

  • Page 54: Commissioning The Gps Application

    GPS-Switch to receive DGPS signals. 10.1.1 Connection to a third-party GPS system If using a third-party GPS system instead of the AMAZONE GPS receiver, the following entries must be made on the GPS system: • Serial interface must be present, Connection via 9-pin sub-D RS232 connector ο...

  • Page 55: Setup Gps Switch Menu

    Switch preview time for width sections on in advance, only for field sprayers and seed drills, see page 60. • Switch preview time for width sections on with delay, only for field sprayers and seed drills, see page 60. AMATRON 3 BAG0094.6 02.15...
  • Page 56 Page three • Field sprayer, AMABUS: Automatic boom lowering within the field boundary. Enter the time in milliseconds. Time before switching on the sprayer in which the booms are lowered. Default: 0 ms Maximum: 5000 ms AMATRON 3 BAG0094.6 02.15...

  • Page 57: Degree Of Overlap

    For field sprayer and fertiliser spreaders: At the border, work is always carried out with a degree of overlap of 0%. Only for seed drills: Degree of overlap of 100 % is recommended. AMATRON 3 BAG0094.6 02.15...

  • Page 58: Overlap Tolerance

    Setting range: 0 to 50 cm. Example 1: Degree of overlap: 0 % Overlap tolerance: 50 cm Example 2: Degree of overlap: 100 % Overlap tolerance: 50 cm AMATRON 3 BAG0094.6 02.15...

  • Page 59: Overlap Tolerance At Field Border

    In order to adjust the switch-on and switch-off points of the fertiliser spreader, the value GPS X1 and headland distance can be manipu- lated. Set the switch-on point by entering the headland distance only when the switch-off point (GPS X1) is correct. AMATRON 3 BAG0094.6 02.15...

  • Page 60: Preview On / Off

    Switching on – Moving off a worked area: ο Sprayer: decrease lead in/delay off ο Sprayer: decrease lead in/delay off time. time. ο Seed drill: increase lead in/delay off ο Seed drill: decrease lead in/delay off time. time. AMATRON 3 BAG0094.6 02.15...
  • Page 61 Switching on – Moving off a worked area: ο Sprayer: increase lead in/delay off ο Sprayer: increase lead in/delay off time. time. ο Seed drill: decrease lead in/delay off ο Seed drill: increase lead in/delay off time. time. AMATRON 3 BAG0094.6 02.15...
  • Page 62 EDX: Section Control switches complete singling units or individual rows. 1200 Switch on singling unit Switch off 1160 Switch on EDX single row control Switch off The stated values are recommendations, they should be checked in every case. AMATRON 3 BAG0094.6 02.15...
  • Page 63 For precise switching on the headland – particularly in the case of seed drills – the following points are essential: • RTK precision of the GPS receiver (update rate min. 5 Hz) • Even speed when driving onto and leaving the headland AMATRON 3 BAG0094.6 02.15...

  • Page 64: Lot Data Menu

    USB stick. • Optimise the memory of the USB stick if the available memory is not suffi- cient. After 50 save procedures, the memory is optimised automatically. → Confirm message on the display. AMATRON 3 BAG0094.6 02.15...

  • Page 65: Loading/Deleting Lot Data

    Call up load submenu. Save the current area. ο Only fields in the set radius are displayed - see page 55. ο Display all fields. Select desired field ο search for field after entering a text passage. Confirm selection. AMATRON 3 BAG0094.6 02.15...
  • Page 66  → → Grey field attributes cannot be selected. Load field attribute. → Selected field appears on the display. Back to main menu. • Delete a field on the USB stick Select desired field. 2. Press AMATRON 3 BAG0094.6 02.15...

  • Page 67: Gps-Maps - Importing Shape Files

    Confirm selection. Select the directory where the Shape file is located. Change directory → \ Highest directory level \.. One directory level higher \xxx Change to this directory Shape file was saved to the current field. AMATRON 3 BAG0094.6 02.15...

  • Page 68: Info Menu

    Main menu: The available applications are displayed in the Info menu. The following is displayed along with the applica- tions: • the remaining running time for test versions • the activation for full versions AMATRON 3 BAG0094.6 02.15...

  • Page 69: Use Of The Gps Switch Application

    (12) "Machine at field border" warning (5) Working width (13) Prompt to calibrate (6) GPS signal strength (14) up to three overlaps (only for field sprayer) (7) Degree of overlap (15) Inserted obstacle (8) Automatic mode or manual mode AMATRON 3 BAG0094.6 02.15...
  • Page 70 (1) Working length (2,3) Switch-on / off point, depending on the ma- chine setting AMAZONE field sprayer: see ISOBUS operating manual, configure part width section. AMATRON 3 BAG0094.6 02.15...

  • Page 71: Function Fields In Work Menu Gps-Switch

    • Delete field border. • GPS track: Create GPS track guide- lines • GPS track: Delete guidelines • Increase field view • Decrease field view • Display entire field • Centre location AMATRON 3 BAG0094.6 02.15...
  • Page 72 → Before a new trace of a field. • Calibrate the field. → When working an already traced field. • Switch to Setup menu, machine re- mains in automatic mode, see page 55 and page 89. AMATRON 3 BAG0094.6 02.15...

  • Page 73: Configurable Headland / Gps Headland

    2. Till the inside of the field. Activate headland → grey headland – headland tillable. 4. Till headland. • Delete headland. • Switch to till the inside of the field AMATRON 3 BAG0094.6 02.15...

  • Page 74: Automatic Mode And Manual Mode

    6. ISOBUS: if necessary, set Section Control to automatic in the implement control. 7. If necessary, switch on the implement 8. Start up and begin work. → Part width sections are switched automatically. → Worked area is shown in the GPS switch work menu. AMATRON 3 BAG0094.6 02.15...
  • Page 75 Seed coulters must be in working position. ο Spreader: the spreading discs must be switched on. • The GPS signal must have sufficient quality: ο GPS with HDOP </= 6 ο DGPS with HDOP </= 8 AMATRON 3 BAG0094.6 02.15...
  • Page 76 The GPS-Switch functions properly in the direction of travel only. Therefore, for safety reasons, switch the GPS-Switch to manual mode for shunting, particularly in combination with reversing. Alternatively on the implement control: • Field sprayer - switch off sprayers • Fertiliser spreader - close shutters, AMATRON 3 BAG0094.6 02.15...

  • Page 77: The Reference Point

    In this case, calibration is not sufficient. 11.4.1 Incorrect calibration Incorrectly calibrated data cannot be used. Should you have inadvertently carried out a calibration at a wrong location, it is possible to drive to the correct location and repeat the calibration. AMATRON 3 BAG0094.6 02.15...

  • Page 78: Assign New Reference Point

    RTK signal fails. • Processing the GPS data when setting or calibrating the reference point takes approx- imately 15 seconds and is indicated on the display. • Confirm the reference point. AMATRON 3 BAG0094.6 02.15...

  • Page 79: Marking Of Obstacles

    The position of the obstacle in relation to → the GPS antenna is displayed. Confirm position Delete the obstacles within a circum- ference of 30 metres. Before reaching the obstacles, an acoustic and visual warning is re- leased. AMATRON 3 BAG0094.6 02.15...

  • Page 80: Procedure For New Trace Of The Field

    Automatic mode when manoeuvring and reversing. Before new trace: Display without field/field border. Switch on the AMATRON 3. → After approximately 30 seconds, the AMATRON 3 receives DGPS signals. Select GPS application. Select the Lot data menu. New trace of a field.
  • Page 81 Switch between the GPS and implement control applica- tions were necessary. After use: 1. Implement control: Switch off machine. 2. If necessary: Save lot data to USB stick (see page 65). Switch off the AMATRON 3. AMATRON 3 BAG0094.6 02.15...

  • Page 82: Procedure For Loading A Field Border / A Field

    Automatic mode when manoeuvring and reversing. Stored/loaded field border Switch on the AMATRON 3. → After approximately 30 seconds, the AMATRON 3 receives DGPS signals. Select GPS application. 3. Load field border / field via Lot data menu (see page 65).

  • Page 83: Interrupting The Work

    • Saving the field to a USB stick is necessary if tilling another field after the interruption and before resuming work. Field loaded after interrupting the work. AMATRON 3 BAG0094.6 02.15...

  • Page 84: During The Work

    Before reaching the field boundary, an acoustic and visual warning is released. If a reference point has been set: Carry out a new calibration as soon as possible if the last calibration was four hours ago and the GPS-Switch prompts you to do so. AMATRON 3 BAG0094.6 02.15...

  • Page 85: Rec For Manual Device Geometry

    Once the field borders have been recorded by driving around the perimeter, the field borders can be created and saved in the terminal, and used for machines with automatic part width section control. AMATRON 3 BAG0094.6 02.15...

  • Page 86: Gps Track Application

    (3) Following lead track (4) Light bar for finding the lead track (5) Distance from the lead track in cm (A) Starting point for creating the lead tracks (B) Terminal point for creating the lead tracks AMATRON 3 BAG0094.6 02.15...

  • Page 87: Use Of The Gps Track

    When the lead track is reached, it is marked in blue. 4. Drive down the lead track. → Observe the light bar in the process. 5. When travelling the first time, register the obstacles present, see page 79. AMATRON 3 BAG0094.6 02.15...

  • Page 88: Creating Lead Tracks

    Lead tracks via A+ guide pattern Establish starting point A to create the lead tracks. Enter the angle for the course of the lead tracks. → The lead tracks are calculated and displayed on the terminal. AMATRON 3 BAG0094.6 02.15...

  • Page 89: Setup Gps Switch (Gps Track)

    AB → The lead tracks are straight, parallel lines to connect the set points A and B. • A+ → The lead tracks are straight, parallel lines established by points A and B. and an angle in which the lead tracks should run. AMATRON 3 BAG0094.6 02.15...

  • Page 90: Travel Beds

    When travelling the beds, one lead track is not travelled after the other, but one or more lead tracks are left out and worked later. Thus, the adjacent lead track can be avoided when manoeuvring. The lead track interval is to be entered. AMATRON 3 BAG0094.6 02.15...

  • Page 91: Light Bar

    The light bar is set to a baud rate of 19,200 as standard. The AMATRON 3 and the GPS receiver must be set to the same baud rate as the light bar. The baud rate of the light bar can be adjusted in the Configuration menu.

  • Page 92: Fault

    • Check GPS quality. Is the GPS signal too poor? See list of signal requirements. AMATRON 3 cannot be switched on AMATRON 3 switched on and off too fast. • Wait a few seconds and switch on again. • Pull out 9-pin connector of basic equipment and reconnect.
  • Page 93 Check whether the number of part width One or more part width sections in the sections in the GPS switch corresponds to AMATRON 3 do not respond to the GPS those in the AMATRON 3. switch, or vice versa. •...
  • Page 94 → The GPS-Switch switches from automatic to manual mode. A switch to automatic mode is possible only with defined field border. → Define the field border in manual mode. → Load field border. AMATRON 3 BAG0094.6 02.15...
  • Page 95 GPS signal is marked in yellow. → The safety zone is increased. No GPS signal present. → Display of the field is not possible. Machine not prepared: • Spreader disc drive not switched on? • Sprayer boom not unlocked? AMATRON 3 BAG0094.6 02.15...

  • Page 96: Maintenance

    The USB stick contains two folders for storing the data: • Data Three files with all stored fields and field borders. → "Data" folder for storage on computer, if memory of the USB stick is full. • GPS-Switch Export Shape data for GIS program. AMATRON 3 BAG0094.6 02.15...

  • Page 97: Carrying Out A Software Update

    AMAZONE logo appears. 9. Remove the stick and delete the five files from the computer. Switch off the AMATRON 3. Switch the AMATRON 3 back on. 14.3 Storage Store the on-board computer in a dry place when you remove it from the tractor cab.
  • Page 98 H. DREYER GmbH & Co. KG Postfach 51 Phone: +49 5405 501-0 D-49202 Hasbergen-Gaste e-mail: amazone@amazone.de Germany http:// www.amazone.de Plants: D-27794 Hude • D-04249 Leipzig • F-57602 Forbach Branches in England and France Manufacturers of mineral fertiliser spreaders, field sprayers, seed drills, soil cultivation machines,...
