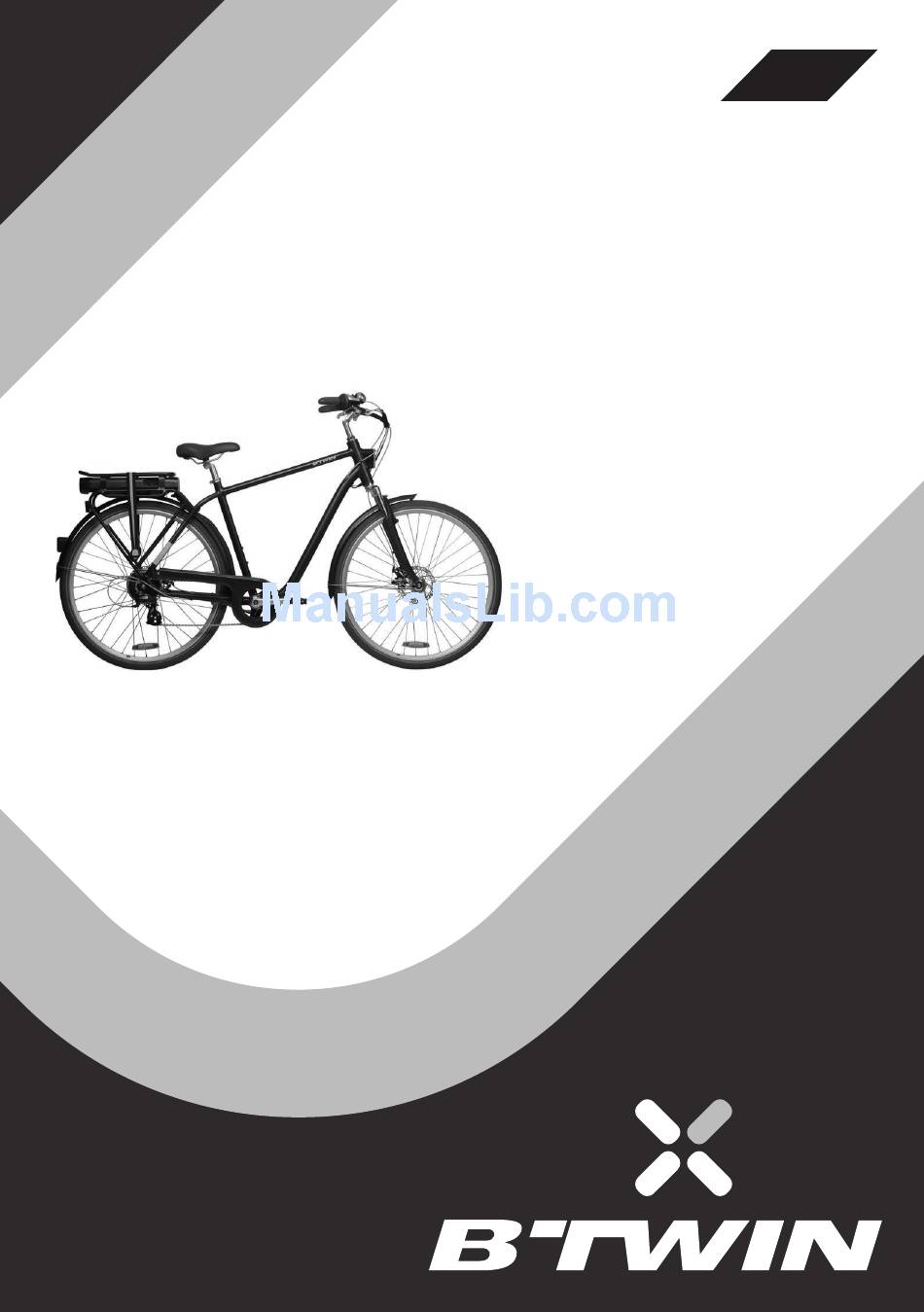

- Page 1 User manual Elops 900E...
- Page 2 You must refer to the B’TWIN user guide and warranty instructions that are shared by all of our bikes and which are provided with this document. They can also be found on our website at www.btwin.com or requested at our DECATHLON stores.
- Page 3 10 best practices for getting the most out of your electrically-assisted bicycle. 3,5 ─ 5 bar In order to improve battery life and efficiency, pump the tyres to You need to pedal to go further between 3.5 and 5 bar <...
-
Page 4: Table Of Contents
TABLE OF CONTENTS PRODUCT DESCRIPTION ........5 Electrically-assisted bike technical features ......5 SCREEN AND CONTROL ELEMENTS ....6 Screen data and function .............6 BATTERY AND CHARGER ......... 7 Precautions for use ..............8 Installing and removing the battery ........10 Recharging the Battery ............11 Maintenance and lifetime (warranty conditions) ....11 Battery self-diagnostic ............12 Putting the battery into hibernation mode......13... -
Page 5: Product Description
PRODUCT DESCRIPTION Electrically-assisted bike technical features Rear LED light Battery and controller Beam + connectors: brakes / control screen Control screen Braking detector Front LED light Motor wiring harness Motor Pedalling detector General operation of the electrical assistance The electrically-assisted bike can be used with or without assistance by pressing the ON/OFF button. Always lock the battery with the key when in use. The electrical assistance will only operate if you pedal. -
Page 6: Screen And Control Elements
SCREEN AND CONTROL ELEMENTS Screen data and function Power assistance mode (0-1-2-3): »0» no power assistance. »1» is the default power assistance mode. Each mode corresponds to the maximum assistance speeds set out below: Mode Maximum assistance speeds** 0 km/h 15 km/h 20 km/h 25 km/h... -
Page 7: Battery And Charger
Additional battery and system information: Indicates the battery charge level as a percentage «Error»: System error, see page 17 Setting Hold the «Lighting» button down for a few seconds to enter or quit the settings Briefly press the «Lighting» button to display the different settings Briefly press the «+»... -
Page 8: Precautions For Use
Precautions for use Do not expose to temperatures exceeding 50°C. +50° < +10°C +10°C / +50°C > +50°C Storage conditions: It is essential to store the battery charged and in a dry, cool place (between +10°C and +25°C), out of sunlight. +10°C +25°C <... - Page 9 Never permit children to play with or handle the battery. Do not immerse in water. Do not clean using a high-pressure washer. Rain resistant. x : 1..500 Your battery can be completely charged and drained 500 times. Hereafter, the capacity and autonomy of the battery is reduced.
-
Page 10: Installing And Removing The Battery
Installing and removing the battery Insertion: Prior to inserting your battery into its slot, unlock it using the key and check that there are no foreign objects or matter in the battery sheath. Then turn on the power switch. Removal: Prior to removing your battery from its slot, unlock it using the key. -
Page 11: Recharging The Battery
Recharging the Battery The LED is red as charging starts. Green LED when charging is complete. LED flashes red, charging problem, contact the after-sales service. Maintenance and lifetime (warranty conditions) Do not store the discharged battery to prevent deep discharge that may cause malfunction. In cases of extended storage, recharge the battery once every 3 months. -
Page 12: Battery Self-Diagnostic
Battery self-diagnostic 6 months 11% - 20% 21% - 40% 41% - 60% 61% - 80% 81% - 100% Battery re- charge is nee- ded urgently <10% Undervoltage protection Temperature protection Short-circuit protection Return your battery to your af- Other protection ter-sales service LED off LED on... -
Page 13: Putting The Battery Into Hibernation Mode
Putting the battery into hibernation mode The battery can be put into hibernation in case of prolonged storage (maximum 1 year). Press for 10 seconds on the button of the battery until the battery LEDs go out. The battery is now in hiberna- tion mode. -
Page 14: Maintenance
You must refer to the B’twin user guide and warranty instructions that are shared by all of our bikes and which are provided with this document. They can also be found on our website www.btwin.com or by request from our DECATHLON stores. -
Page 15: Error Codes
The rims are subject to wear which must be checked to ensure they are intact. The motorised wheel is also subject to higher stress than a standard bike wheel, and although it is reinforced, it is possible that spokes may break. If a spoke breaks, contact your DECATHLON store. If the bike or battery suffers a fall, check that your battery is intact. -
Page 16: Contents Of The Commercial Warranty For Your Electrically-Assisted Bike
DECATHLON store loyalty card and register his/her purchase on it at the time of checkout, or complete the warranty certificate available online on the www.btwin.com site within one month of the purchase date. During this registration, the buyer must provide the following information: last name, first name, purchase date, e-mail address, and bicycle tracking number. - Page 17 BP 299 F-59665 VILLENEUVE D’ASCQ Declares to be authorised to establish the technical file Declares the product hereafter described : Commercial name : Elops 900E Model code : 8379380 / 8379381 Type : Electrically Power Assisted Cycle Brand : B’twin...
- Page 18 To use your electric bike to its full potential, see our complete user guide on the Decathlon website. 8379380 / 8379381 DECATHLON - 4 Boulevard de Mons - BP 299 59650 Villeneuve d’Ascq cedex - France...
