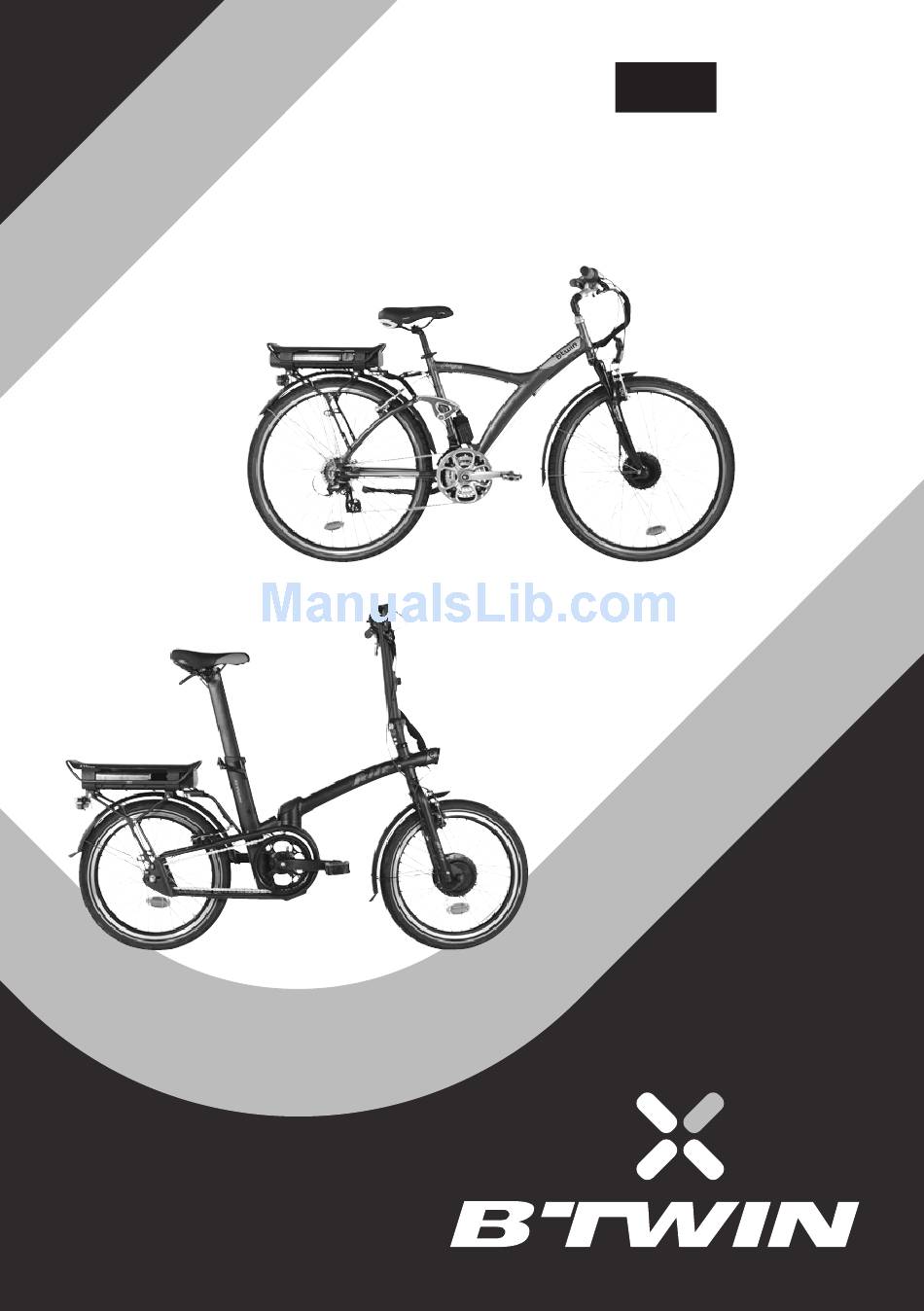

  • Page 1 User manual Original 7E Tilt E ref. 2849...
  • Page 2 Dear Customers, Thank you for purchasing a B'TWIN electrically-assisted bike. It will introduce you to the joys of travelling on 2 wheels for your leisure, it will be the most practical and economical way for you to get around in town and will allow you to burn calories to keep fit.
  • Page 3 6. " you don't get 100% of the range at the first push on the pedals" The range is only at its maximum after 5 full battery charges. All the batteries used on our electrically-assisted bikes are memory-free (an average of 300 cycles at 100% charge) and recyclable, but they only acquire their full range after several full charges.
  • Page 4 Important, this instruction manual only applies to the electrical characteristics of your bicycle. You must refer to the B'TWIN user guide and warranty instructions and to the instructions for the 15 kg luggage rack used on all our bikes which are provided with this document and which can also be found on our website www.b’twin.com or by request from our Decathlon stores.
  • Page 5: Table Of Contents

    TABLE OF CONTENTS PRODUCT DESCRIPTION ............. 6 Description of the equipment on your bike and its technical characteristics ................. 6 Bicycle ......................6 Battery ......................7 Charger ......................7 Key ....................... 8 General operation of your bike ................8 General operation of the electrical assistance ..........8 General rules concerning range ..............10 SCREEN AND CONTROL ELEMENTS .........
  • Page 6: Product Description

    PRODUCT DESCRIPTION DESCRIPTION OF THE EQUIPMENT ON YOUR BIKE AND ITS TECHNICAL CHARACTERISTICS BICYCLE Your electrically-assisted bike comprises various components which it is important to recognise; ► Cycle part • Aluminium frame and suspended fork • Sram Altus 21-speed transmission • V brake •...
  • Page 7: Battery

    Rear LED light Battery sheath and controller Wiring harness: Control / Motor / Pedalling detector Control screen Braking detector Front LED light Motor wiring harness Motor Pedalling detector • Motor: 24 C, 250 Watts, placed in the wheel for improved balance and optimum consumption.
  • Page 8: Key

    Your bike is supplied with battery security key and a spare. It is essential to note down the number of this key on the user guide supplied with your bike on the day you buy it. This number is also affixed inside the battery sheath.
  • Page 9 below 23 km/h. In order to preserve your range, the bike is fitted with a "power" limiter which will limit your assistance on steep gradients. During intensive use and in exceptional weather conditions, the assistance may switch off to avoid overheating and safeguard the entire system.
  • Page 10: General Rules Concerning Range

    GENERAL RULES CONCERNING RANGE ► Range and tyre inflation You are advised to inflate the tyres to between 3.5 and 4.5 bars. A bike loses on average 1 to 1.5 bars per week. IMPORTANT: Insufficient tyre pressure reduces the battery range as the tyre surface in contact with the ground is greater. Range Max. pressure Original 7 E 4.5 bars Pressure (bar)
  • Page 11 ► Range and temperature The lithium battery draws its energy from an electrochemical reaction between the components it contains. A temperature of between 20 and 30°C is the optimum situation to obtain the maximum amount of energy. Range vs. T°C T°C ► Range and driving mode Like a motor vehicle, a responsible driving style will result in a larger range. If you allow the bike to "carry"...
  • Page 12: Screen And Control Elements

    SCREEN AND CONTROL ELEMENTS DESCRIPTION OF THE SCREEN AND ITS OPERATION (ORIGINAL 7 E) Assistance mode (0-1-2-3) 0 = no assistance. 1 = the default assistance mode. Each mode corresponds to the maximum assistance speeds given below: Mode Speed 0 km/h 17 km/h 22 km/h 25 km/h ON/OFF button...
  • Page 13: Push Button Description (Tilt-E)

    ODO: Global distance counter (in km) 0-99999 km By default, ODO mode appears on the screen. TRIP: Partial distance counter (in km) 0-1000 km Reset by pressing for 1.5 seconds on the MODE button. Battery level Five battery levels When the battery level is too low, the indicator starts to flash. Warning, when you make heavy use of the assistance, the charge indicator is likely to vary temporarily to indicate the instantaneous overconsumption.
  • Page 14: Battery And Charger

    BATTERY AND CHARGER FIRST USE OF THE BATTERY Your battery is fitted with "intelligent" electronics. It will be delivered in "sleep" mode in order to economise its consumption (pressing the battery status button will serve no useful purpose as nothing will be shown on the LED's).
  • Page 15: Storage Conditions

    STORAGE CONDITIONS It is essential to store the battery in a dry, cool place (between -10°C and +25°C), out of sunlight. INFORMATION CONCERNING THE BATTERY • Always use your battery between -10°C and 50°C. • The battery is waterproof and can therefore withstand the rain. However, high-pressure washing and submerging the battery and the bike in water are strictly forbidden.
  • Page 16: Installing And Removing The Battery

    INSTALLING AND REMOVING THE BATTERY INSERTION Before inserting your battery into its position (sheath), ensure that the key is in the unlocked position (key in vertical position) and that no object or foreign body is inside the sheath. Once inserted, ensure the battery is correctly locked by turning the key (key in horizontal position), then remove your key.
  • Page 17: Recharging The Battery

    The electrically-assisted bike has a lithium-ion battery which powers the motor. Unlike other batteries, it is "memory free". It can therefore be charged whatever its status may be. When it is used for the first time, charge it up fully (100%) RECHARGING THE BATTERY Remove the protective cover on the charging connector located on the side of the battery.
  • Page 18: Important Notes

    ► Battery charge indication table Charger Battery Charging LED's status Charger only connected to the Permanent mains power supply (battery green not connected to the charger) 0 to 20% 21 to 40% Permanent Charging 41 to 60% orange 61 to 80% 81 to 99% 100% Permanent Fully charged After 10 green minutes Flashing Problem during charging orange = LED off, = LED flashing, = LED permanently on...
  • Page 19: Maintenance And Lifetime (Warranty Condition)

    MAINTENANCE AND LIFETIME (WARRANTY CONDITION) • Never store the battery discharged (1 flashing green LED) to avoid any deep discharge which could lead it to malfunction. • In case of extended storage, recharge the battery at least every 3 months. •...
  • Page 20: Additional Precautions For Use

    • If charging starts, your battery was in safe mode. Terminate charging and ensure you do not leave your battery in this status as this will lead to your battery being out of service • If charging does not start, your battery is out of service and you must return it to your after-sales service ADDITIONAL PRECAUTIONS FOR USE •...
  • Page 21: Maintenance

    It is therefore very important to have the brakes services at regular intervals. For all bike maintenance operations, consult the instructions on our btwin.com website. These instructions can also be obtained by request from the store. If the bike or battery suffers a fall, check that your battery is intact. Caution, as the watertightness of your battery is no longer guaranteed following a fall.
  • Page 22: Contents Of The Commercial Warranty For Your Electrically-Assisted Bike

    ► Brake The brake pads must be adjusted according to the recommendations in the bike instructions on b’twin.com. It is important to remember that your electrically-assisted bike is subject to more frequent and more intense stress. Its braking system will therefore be subject to more rapid wear.
  • Page 24 OXYLANE 4 Boulevard de Mons – BP 299 59665 Villeneuve d’Ascq cedex – France...
