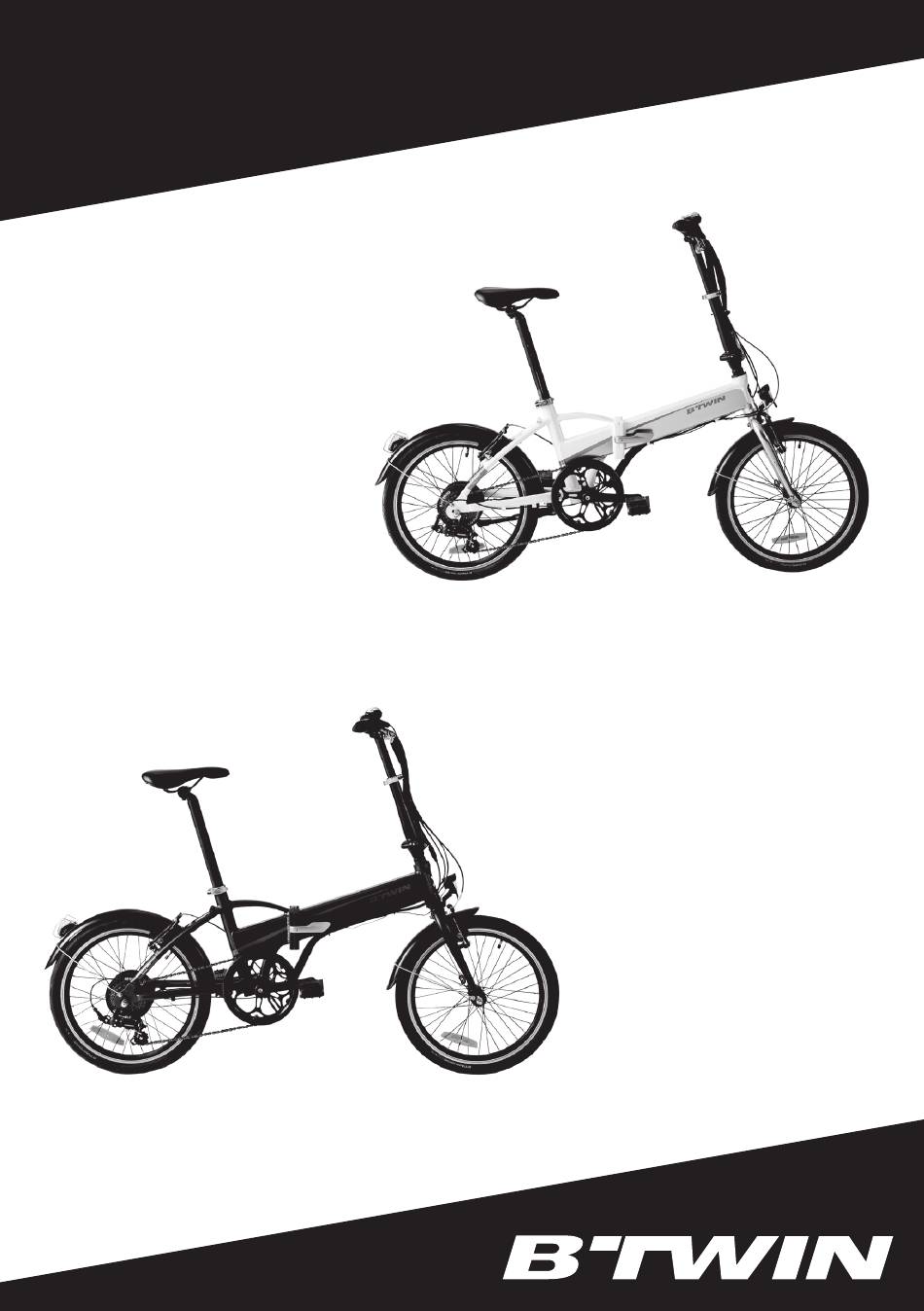

- Page 1 EN - User manual TILT 500E...
- Page 3 Important, this instruction manual only applies to the electrical characteristics of your bicycle. You should refer to the B’TWIN user manuals common to all our bicycles that ac- company this document and are also available on our website www.btwin.com or on request in our DECATHLON stores.
- Page 4 10 best practices for getting the most out of your electrically-assisted bicycle. 3,5 - 4,5 bar 2. In order to improve battery life and efficiency, pump 1. You need to pedal to go further the tyres to between 3.5 and 4,5 bar <...
-
Page 5: Table Of Contents
TABLE OF CONTENTS PRODUCT DESCRIPTION ................6 Electrically-assisted bike technical features ..............6 General operation of the electrical assistance ..............6 SCREEN AND CONTROL ELEMENTS ............7 Screen data and function ....................7 BATTERY AND CHARGER ................8 Precautions for use ......................9 Installing and removing the battery.................. -
Page 6: Product Description

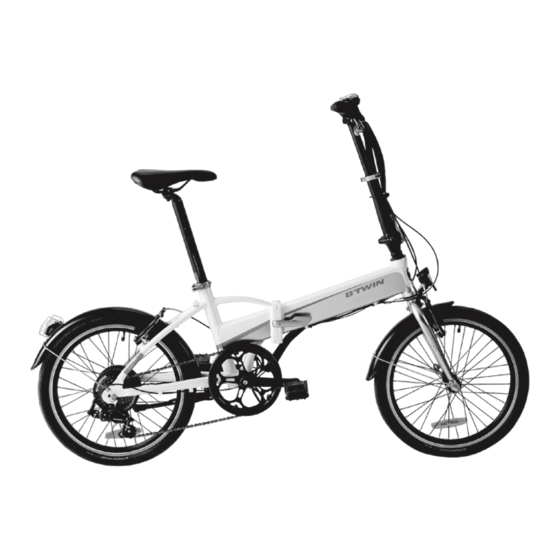

PRODUCT DESCRIPTION Electrically-assisted bike technical features Rear LED light Battery and controller Beam + connectors: brakes / control screen Control screen Braking detector Front LED light Motor wiring harness Motor Pedalling detector General operation of the electrical assistance The electrically-assisted bike can be used with or without assistance by pressing the ON/OFF button. Always lock the battery with the key when in use. -
Page 7: Screen And Control Elements
SCREEN AND CONTROL ELEMENTS Screen data and function light Assistance mode : Each mode corresponds to the maximum assistance speeds given below: Mode normal sport Maximum assistance speeds** 0 km/h 15 km/h 20 km/h 25 km/h Average autonomous range** 20 - 35 km ON/OFF button: Switch the electrically-assisted bike on and off with a short press on the ON/OFF button. -
Page 8: Battery And Charger
BATTERY AND CHARGER All our electric bike batteries use lithium-ion technology and are not subject to the memory effect. Recharging the battery after each use is recommended. Charge the battery to 100% prior to its first use. Battery Charger Input: 100-240 V Battery 24 V / 7.8 Ah Output: 29.4 V Your battery is guaranteed for 2 years or 500 charging and discharging cycles (1 cycle = 1 charge from 0% to... -
Page 9: Precautions For Use
Precautions for use Do not expose to temperatures exceeding 50°C. +50° < +10°C +10°C / +50°C > +50°C Storage conditions: It is essential to store the battery charged and in a dry, cool place (between +10°C +10°C and +25°C), out of sunlight. +25°C <... - Page 10 Never permit children to play with or handle the battery. Do not immerse in water. Do not clean using a high-pressure washer. Rain resistant. x : 1..500 Your battery can be completely charged and drained 500 times. Hereafter, the capacity and autonomy of the battery is reduced. Always make sure that the battery and charger are compatible.
-
Page 11: Installing And Removing The Battery
Installing and removing the battery Insertion: Prior to inserting your battery into its slot, unlock it using the key and check that there are no foreign objects or matter in the battery sheath. Removal: Prior to removing your battery from its slot, unlock it by lifting the loop of the battery. -
Page 12: Recharging The Battery
Recharging the Battery The LED is red as charging starts. 4h30 Green LED when charging is complete. LED flashes red, charging problem, contact the after-sales service. Maintenance and lifetime (warranty conditions) Do not store the discharged battery to prevent deep discharge that may cause malfunction. -
Page 13: Additional Precautions For Use
Additional precautions for use Always carry out maintenance operations in sufficient light. Warning, in the event of wheel removal, you must ensure the direction of rotation of your wheel is correct. Before each use you must make sure that your brakes and electric system are working properly The weight, power, manufacturing year and maximum speed are indi- cated on your bicycle’s frame. -
Page 14: Maintenance
The bicycle must be parked with its kickstand on flat, stable ground or using a parking device. Maintenance Warning - the maintenance of electrical components requires special skills and is not carried in stores but in Decathlon regional workshops and can take several days. All cleaning and electrical or mechanical maintenance must be carried out with the power switched off and the battery removed from the bike! Maintenance operations specific to the electric system must be perfor-... - Page 15 The rims are subject to wear which must be checked to ensure they are intact. The motorised wheel is also subject to higher stress than a standard bike wheel, and although it is reinforced, it is possible that spokes may break.
-
Page 16: Contents Of The Commercial Warranty For Your Electrically-Assisted Bike
DECATHLON store loyalty card and register his/her purchase on it at the time of checkout, or complete the warranty certificate available online on the www.btwin.com site within one month of the purchase date. During this re- gistration, the buyer must provide the following information: last name, first name, purchase date, e-mail address, and bicycle tracking number.
