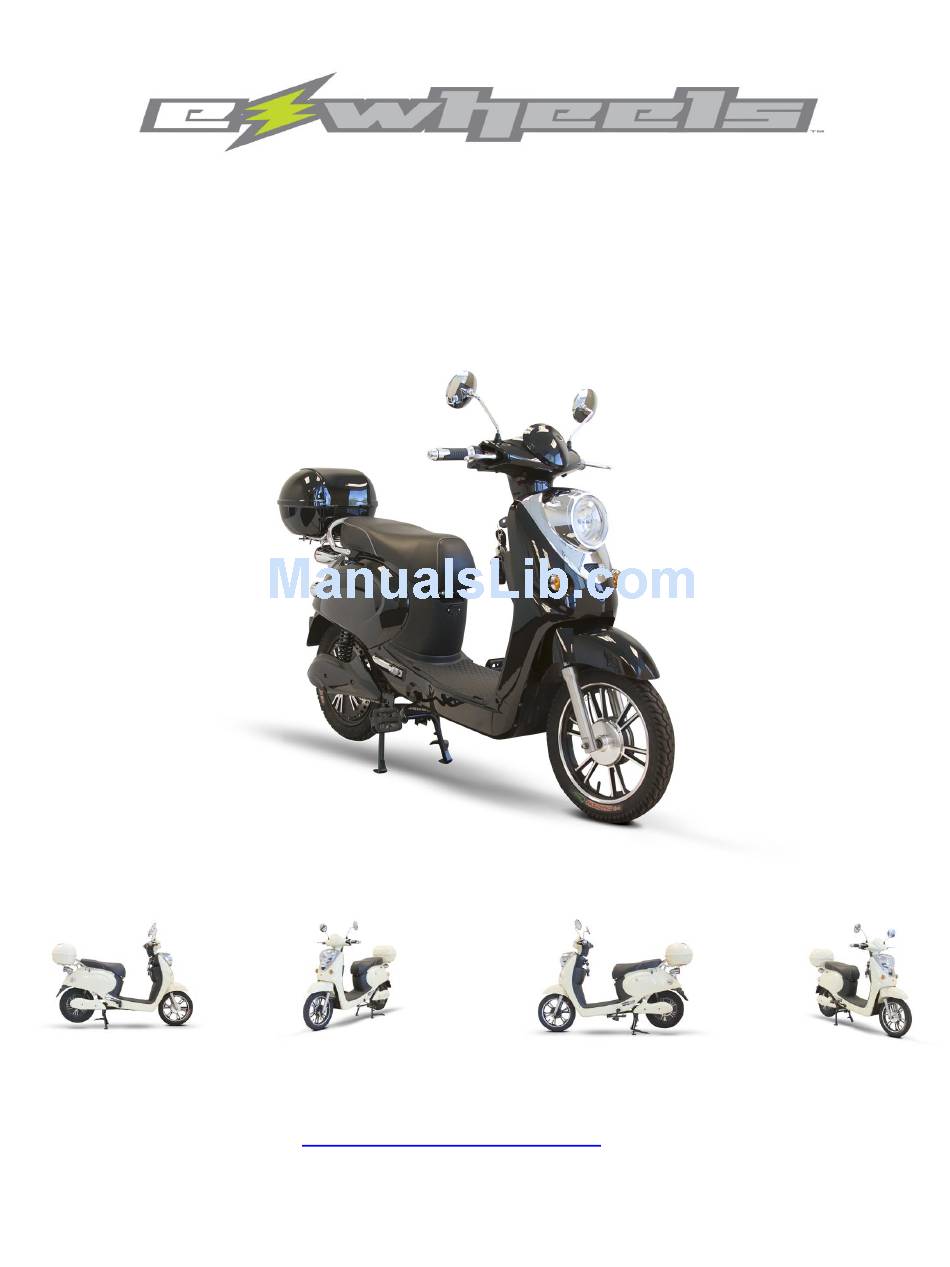

- Page 1 EW-09 Owner’s Manual www.ewheelsdealers.com (888) 305-0881 Customer Service (888) 571-2845 Service...
-
Page 2: Table Of Contents
Table of Contents Page 2 - Feature Guide Page 3 - Product Specifications Page 4 - Operation of Scooter Page 7 - Mirror Assembly Page 8 - Charging and Battery Information Page 8 - Ramps and Curbs Page 9 - General Page 9 - Use While Under Influence Page 10 - Safety Requirements Page 11 –... - Page 3 Throttle Speedometer Cluster Seat Rear View Mirrors Front Headlight Rear Storage Box Rear Kickstand Front Turn Signals Rear Passenger Folding Foot Pedals Front Fork Suspension...
-
Page 4: Technical Specifications
Technical Specifications Model EW-09 Weight Capacity 300Lbs Speed: Up to 20mph Distance: 25 miles per charge (distance varies on terrain, riders weight, road surface, etc.) Front Seat: Type Extended Saddle Seat with 2 rider capacity Front seat: Size 20 “x 10“(LxW) Front Seat: 29”... -
Page 5: Operation Of Scooter
Operation of Scooter: 1. Turning on the power Insert key into ignition and turn clockwise to turn the scooter on. The battery indicator will display the current charge level when on. Turn the key counter-clockwise to power off when stopped. 2. - Page 6 4. Rear Kickstand To activate the rear kickstand, stand on either side of the machine while holding the machine stable with the handlebars, and push downwards on the rear kickstand with either foot 5. Horn There is a yellow horn button on the left side of the handlebars. Press button to sound the horn.
- Page 7 9. Security System and Remote Start The security system is controlled with the security key fob. The remote start allows you to use the machine without inserting the key into the ignition. Arm Security System -Disarm Security System -Panic Button -Activate Remote Start (Double click to activate remote start) 10.
-
Page 8: Mirror Assembly
11. Removable Battery Pack To remove the battery pack, lift the battery pack up with the handle, and disconnect the power cable from the battery pack. You can charge the battery pack separate from the machine with the provided smart charger. Mirror Assembly: Your power scooter is shipped partially disassembled for protection during shipping. - Page 9 Charging Instructions: The smart charger included with your scooter will shut off when the scooter is fully charged. When the light on the charger is red, the scooter is still charging. When the light turns green, this means the scooter is fully charged.
-
Page 10: Ramps And Curbs
Ramps and Curbs: 1. Check that the ramp surface is roughened to prevent slipping. Never drive across a slope or turn sharply on a slope. 2. When driving up curbs, always check the height of the curb to ensure that it does not exceed 4” height. -
Page 11: Safety Requirements
Safety Requirements: Driving Surface The EW-09 has the best stability and performs the best under the normal driving conditions (dry, level ground with concrete or asphalt). Extra care must be taken when riding on other surfaces (grass, gravel, etc.). DO NOT exceed the specified climbing angle. Do not operate the scooter before you have fully read and understood the manual. -
Page 12: Warranty
Make sure the batteries are fully charged before operating. Do not let the batteries every go completely dead. When low, do not let sit for an extended period or damage may occur. Always use required safety equipment while operating. ...
