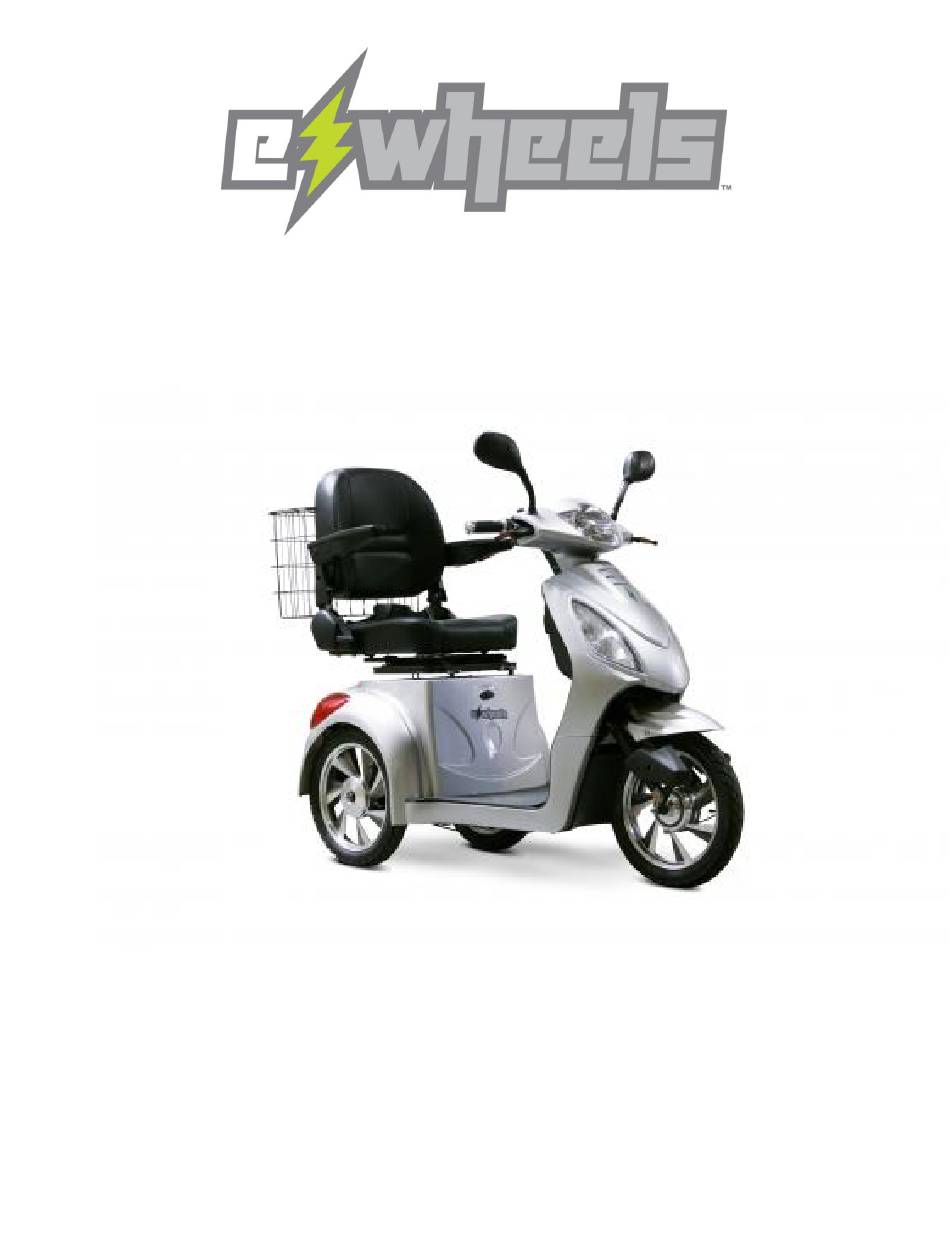

- Page 1 EW-36 OWNER'S MANUAL...
-
Page 5: Table Of Contents
Contents Riding Safety …………………………………………..5 Safety Basics & Operating Instructions………….6 Wet Weather & Night Riding ……..……………….10 Specifications .……………………….……….…………. 11 Components ..………………………………….……….. 14 Assembly and Setup ..……………………………….. 16 Routine Operation ………..………………………….. 17 Battery Care and Maintenance.…………………. 19 Battery Charging ………………..…………………… 22 Other Maintenance ……..…….……………………. 24 Fuse ..…………………………….…………………………... -
Page 6: Riding Safety
“Pop a Wheelie” when the throttle is engaged. Use caution! Like any sport, cycling carries the risk of injury and damage. By choosing to ride the EW-36 you assume all responsibility for these risks. Thus, you need to know and practice the rules of safe and responsible. - Page 7 Safety Basics: Do’s and Don’ts The Do’s o Always conduct a Safety Check before you ride your EW-36. Be thoroughly familiar with the controls of your EW-36. o Always wear an approved helmet when riding your EW-36. Follow the helmet manufacturer’s instructions for fit, use and care of your helmet.
- Page 8 Don’t jump with your EW-36. It puts great stress on everything from frame and forks to drive train. Riders who are jumping their EW-36 risk serious damage to their EW-36 and will void their warranty. o Never carry anything which obstructs your vision or your complete control of the EW-36 or which could become entangled in the moving parts of the EW-36.
-
Page 9: Wet Weather & Night Riding
o Ride defensively. To other road users, you may be hard to see. o Concentrate on the path ahead. Avoid potholes, gravel and dirt, wet road, oil, curbs, speed bumps, drain grates and other obstacles. o Be alert for unexpected events, such as opening car doors or cars backing out of concealed driveways. - Page 10 Rules of the Road, and take the following precautions: Make sure that your EW-36 is equipped with correctly positioned and securely mounted reflectors. Make sure your clothing or cargo does not obstruct a reflector or light. Ensure that the front lights are on.
- Page 11 Release the throttle before braking. Do not “ride” the brakes. The EW-36 has a speed control dial to regulate the speed output. The rider can turn it from low to high and set it anywhere in between. On the first ride, set the knob to its slowest position...
- Page 12 The battery does NOT require deep discharging. If your EW-36 is put into storage, re-charge its battery at least once every 30 days. Do not store your EW-36 in direct sunlight for an extended time. Store your EW-36 in a dry place. Exposing your EW-36 to rain, snow, or other precipitation may result in damage.
-
Page 13: Specifications
SPECIFICATIONS COLOR: Red, Silver, Blue, Orange, Black POWER: Electric WATTS: 500 Watt MOTOR TYPE: Transaxle differential brushless motor AMPS: 20 AH VOLTS: 48 Volt DIMENSIONS: 61”*29”*41” BATTERIES: 48 volt lead acid maintenance free battery TIRE SIZE: 16”/2.5” CHARGER: Smart charger included SPEED: Up to 18mph DISTANCE: Up to 45 miles per charge (distance varies by riders weight , terrain, road surface etc.) THROTTLE TYPE: Variable speed control- Twist Throttle... -
Page 16: Assembly And Setup
ASSEMBLY AND SETUP 1) Remove your EW-36 from its shipping carton. EW-36 weighs about 150 lbs, so get help, and use care. Cut away any residual packing materials with a knife or scissors. 2) Attach the Rear View Mirrors to the mounting holes. A wrench can be used to tighten the lock nuts at the base of each mirror. -
Page 17: Routine Operation
4) Verify the proper adjustment and function of the brakes. 5) Make sure the EW-36 is in good mechanical order. Visually inspect and hand- check the vehicle, and snug any loose bolts, screws, or other fasteners. 6) With the EW-36 visually inspected, turn the key switch and apply the throttle, to verify the motor’s smooth operation. - Page 18 You will control the speed of the bike by using both the accelerator and the brakes. When the brake handle is squeezed it cuts power to the accelerator. 6) Give the EW-36 some acceleration and speed by first applying the throttle gently. Try not to brake and accelerate needlessly.
-
Page 19: Battery Care And Maintenance
Battery Care and Maintenance What to Expect of Your Batteries, Ideally The battery is a sealed lead-acid type, with a gel electrolyte. With normal use, it can last for well over 300 charge/discharge cycles. Know that normal use should mean partial, and not complete discharging. - Page 20 What’s Inside Your EW-36 Battery The Battery is composed of four 12 Volt, 20 Amp-hour capacity batteries, in series, for a total capacity of 48 V, 20 Ah. The component batteries are a standard, commercially available size. Keep three things in mind, however, should you choose to service your battery.
- Page 21 0 ºF, the battery power will decline more than one third. So it is natural that the EW-36 will not reach its normal mileage in winter or in cold weather. When the air temperature is up to 68 ºF, the EW-36 will achieve its normal range capability.
-
Page 22: Battery Charging
Frequent braking and acceleration, driving into headwinds, up hills or with cargo will all cost a lot of battery energy. In these conditions, the EW-36 will not reach its normal range. Battery Charging Be sure to charge the battery completely if you will not use it for a long period. - Page 23 The electric bike is powered by four 12V/20Ah batteries wired in series to provide 48 volts of potential. All batteries charge simultaneously. You should charge your EW-36 after each ride. You should charge your EW-36 if it has not been used for 30 days or more.
-
Page 24: Other Maintenance
Do not place the battery near heat or fire. Do not expose the chargers to water. OTHER MAINTENANCE Your EW-36 should be checked once a year for a thorough inspection and adjustment. This can guarantee the comfort, safety and the normal operating life of the EW-36 Front and Rear Brakes The adjustment of the front brake is the same as in a common motorcycle. -
Page 25: Fuse
If you are not comfortable with undertaking this operation, you can ask your servicing dealer or mechanic to change it. Fuse The EW-36 comes with one 25A Glass Fuse. The fuse is located under the headlight fairing. Lubrication You should inspect and maintain your EW-36 and lubricate the mechanical power transmission components. -
Page 26: Scheduled Maintenance
Scheduled Maintenance EW-36 should be checked from time to time. Refer to the maintenance schedule in the following chart: If you find problems that you cannot solve them yourself during your inspection and maintenance, please send your bike to your servicing dealer for help. Never take apart or repair the bike by yourself. -
Page 27: Troubleshooting
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION Battery gauge 1. Loose connection 1. Check the connections, does not near the power switch reconnecting any that are register or battery pack. loose. anything when 2. Battery is completely 2. Charge the battery vehicle is on. discharged Battery gauge 1. - Page 28 SERVICE: Warranty service can be performed by EWheels or by an authorized EWheels service facility. Do not return faulty parts to EWheels without prior consent. A request for a Return Authorization is required prior to returning items. All transportation costs and shipping damage incurred while...
- Page 29 • Used other than for the purpose of the purchaser’s mobility. • Repairs and/or modifications made to any part of the scooter without specific and prior consent from EWheels. • Labor, service calls, shipping, and other charges incurred for repair of the product not approved by EWheels.
Need help?
Do you have a question about the EW-36 and is the answer not in the manual?
Questions and answers
How to replace 25 amp fuse
To replace the 25 amp fuse in the EWheels EW-36:
1. Locate the fuse under the headlight fairing.
2. Remove the headlight fairing to access the fuse.
3. Take out the old 25A glass fuse.
4. Install a new 25A glass fuse in its place.
5. Reattach the headlight fairing.
This answer is automatically generated
