Operating Factory on Fire
OPERATOR'S MANUAL
Add some real excitement to your layout with this realistic
all-new accessory. While the "fire" isn't real, the smoke and
water are!!

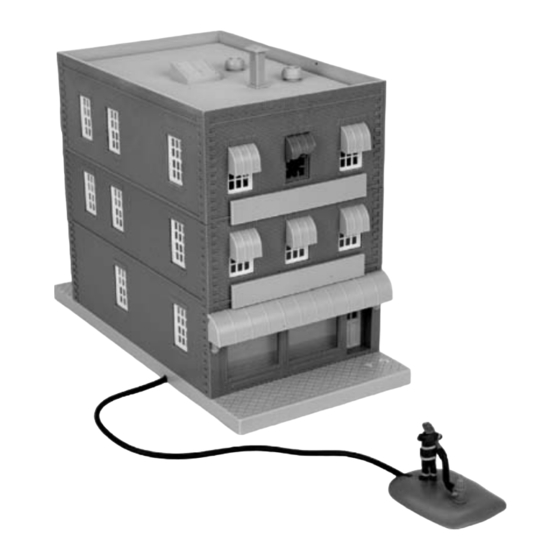

Watch as the smoke pours out of the factory. The fire glow from
inside gives off the impression that the factory is ablaze.
Fortunately, the fireman outside is on alert and is diligently
washing down the factory with his hose as real water streams out
and water is going in the window. The water is self-contained
M.T.H.
inside the structure and recirculates through the fireman's hose.
Everything comes painted and assembled. Installation is easy
ELECTRIC TRAINS, INC.
7020 Columbia Gateway Drive
and quick.
Columbia, MD 21046-1532
www.mth-railking.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rail King Operating Factory on Fire
Summary of Contents for Rail King Operating Factory on Fire

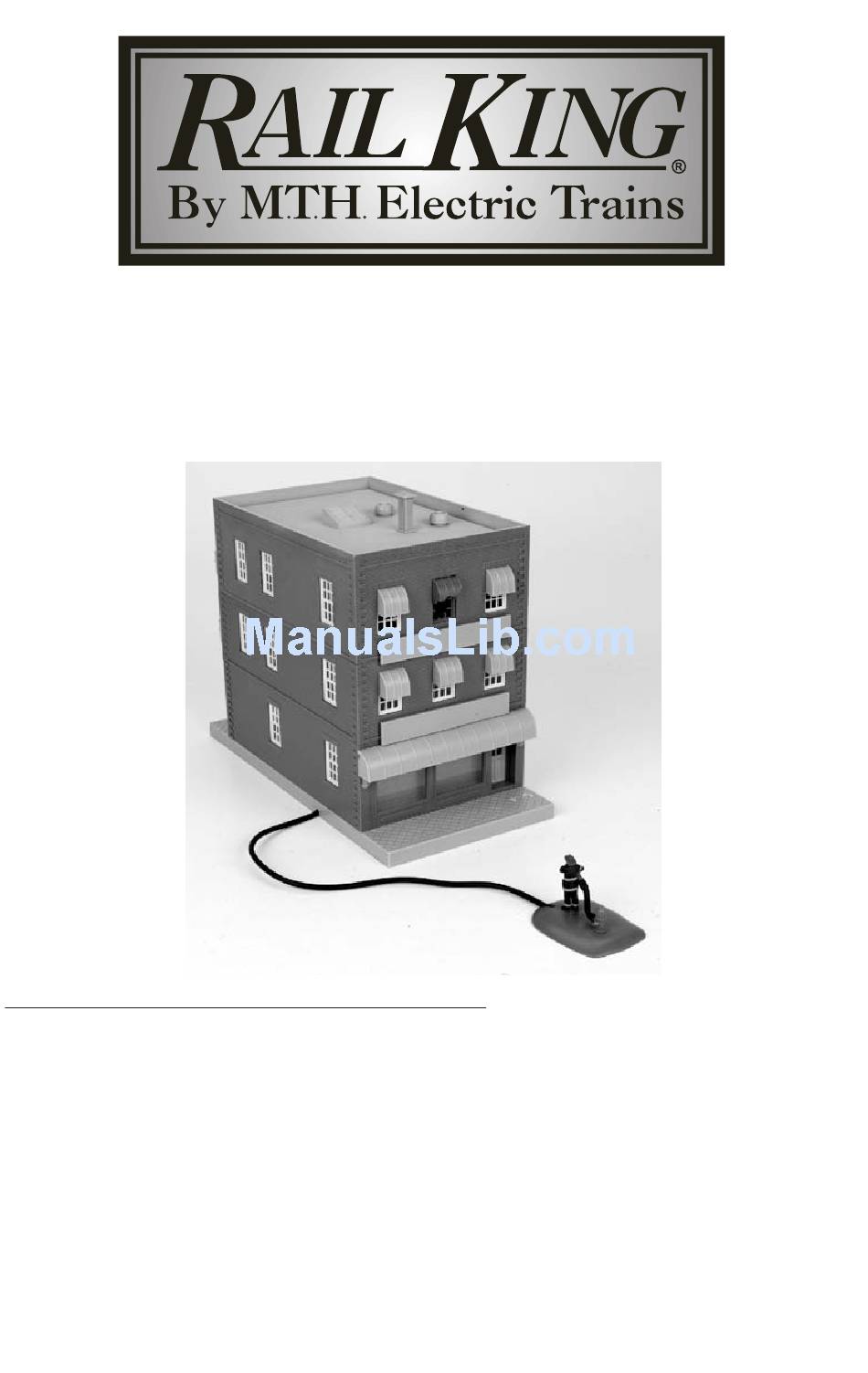

- Page 1 Operating Factory on Fire OPERATOR’S MANUAL Add some real excitement to your layout with this realistic all-new accessory. While the “fire” isn’t real, the smoke and water are!! Watch as the smoke pours out of the factory. The fire glow from inside gives off the impression that the factory is ablaze.
- Page 2 CAUTION: ELECTRICALLY OPERATED PRODUCT: Not recommended for children under 8 years of age without adult supervision. As with all electric products, precautions should be observed during handling and use to reduce the risk of electric shock. WARNING: When using electrical products, basic safety precautions should be followed including the following: •...
- Page 3 Components Hose Cap Fireman on Base Fireman that goes on Ladder w/Hose Nozzel Cleaning Pin Ladder Smoke Fluid Pipette...
- Page 4 Set Up Wiring Instructions Connect the red wire to the AC hot on your transformer, and the black wire to the ground on the transformer. Operate between 12 and 18v. Smoke Unit Remove cap from roof marked “S” and a dd 15-20 drops of smoke fluid through the smokestack before running.
- Page 5 Figure Set Up WARNING: This product shoots out water. If you wet any electrical components on your layout you could cause short-circuiting and serious injury could result. You must take the appropriate steps to waterproof the areas around this building. 1) For the figure on the platform, attach hose from building to bottom of platform.
- Page 6 2) For the figure on the ladder, attach hose from building to figure and attach figure to ladder. If you do not wish to use glue, you can clamp the figure’s feet down w/the ladder (see Figure 1). Position figure to shoot water inside the window without a window sheet (see Figure 2).
-
Page 7: Light Removal
Remove 6 Screws Light Removal 1) Remove 6 screws from base. 2) Remove 4 screws holding water fill and motor. 3) Remove two light housing mounting screws. 4) Remove red rotating light housing. 5) Pull out light bulbs. 6) Reassemble in reverse order. Light Housing Mounting Screws Light Bulbs... -
Page 8: Maintenance
Fuse In the event of a short circuit, the fuse will blow and need to be replaced. This product takes a standard, fast- acting 250V 2A Fuse. If you go to RadioShack®, we recommend part #270-1052. Fuse Maintenance Cleaning Rod: The nozzle needs to be cleaned after a few hours of use because the smoke fluid will settle into the water. - Page 9 Notes:______________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________...
-
Page 10: Service And Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty When you suspect an item is defective, please check the operator's manual for standard operation and trouble-shooting techniques that may correct the problem. Additional information may be found on the M.T.H.
