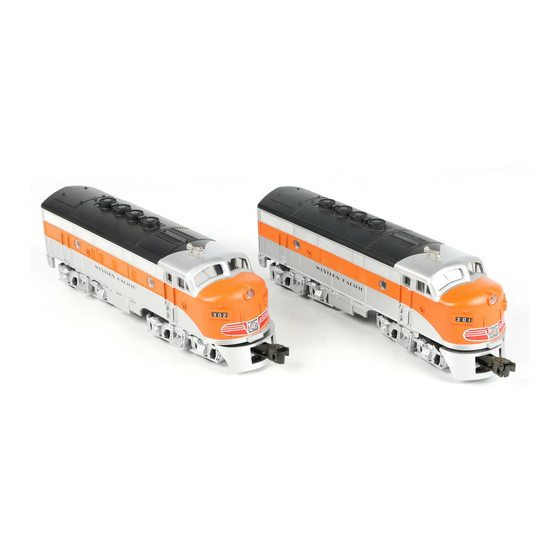

- Page 1 F-3 Passenger Set www.railking.com ® Operation Manual (3V PS2) Thank you for purchasing this RailKing product. PLEASE READ BEFORE USE AND SAVE...
-
Page 2: Table Of Contents
Table of Contents Set Up Set up Checklist ........3 Assembling RealTrax®... -
Page 3: Set Up Checklist
Set Up Checklist • Assemble RealTrax® • Connect the transformer • Lubricate the engine • Place the engine and cars on the track and couple them together • Apply power to run as described in the Basic Operation section of these instructions. -
Page 4: Assembling Realtrax
Assembling RealTrax™ Unlike other O Gauge track systems, each RealTrax section features a realistic built-in roadbed base, solid nickel-silver track rails, and realistic railroad ties, all designed to give you an authentic looking track system. The quick connectors and built-in roadbed allow you to set up RealTrax anywhere, including most carpeted surfaces, without the need for track nails or the worry of carpet stains. -
Page 5: Connecting The Transformer
Connecting the Transformer The transformer included with this set provides an easy-to-use, safe power source for AC-powered trains and accessories. To complete the connection between the track and the transformer, simply plug in the color-coded wire harness that was included in your set and plug the transformer into your wall outlet. -
Page 6: Basic Operation
Basic Operation The Throttle knob controls how fast your train will travel. Turn the throttle knob up ½-way, until the engine and caboose lights shine bright. Put the engine into motion by pressing the Direction button on your transformer once. (hold it for approximately 1 second) If the engine does not begin to move as soon as you firmly press the Direction button, you may not have sent enough voltage to the track to make the train move. -
Page 7: Activating Proto-Sound 2.0 Conventional Mode Feature
Figure 2: Volume Adjustment Proto-Sound 2.0 Operating Instructions This manual contains the operating instructions for Proto-Sound 2.0 in conventional mode only. Instructions for accessing DCS command mode features accompany the DCS Remote Control System equipment (sold seperately). Activating Proto-Sound 2.0 Conventional Mode Features: Proto-Sound 2.0 features are activated by sequences of Bell and Whistle button pushes described below. -
Page 8: Tips On Using Psa
3. After waiting about 30 seconds for that sequence to run, press the Direction button again to trigger the second sequence of PSA. 4. After about 30 seconds, press the Direction button again to trigger the third PSA sequence. 5. Again, after allowing about 30 seconds for that sequence to run, press the Direction button one more time to trigger the fourth and final PSA sequence. -
Page 9: Proto-Coupler® Operation
Proto-Coupler® Operation This locomotive is equipped with two coil-wound Proto-Couplers for remote uncoupling action. Because the Proto-Coupler is controlled through the Proto- Sound 2.0 microprocessor, it does not require an uncoupling track section or modification to your layout to function. Use the codes listed below to fire the coupler. -
Page 10: Lock Into A Direction State
Lock into a Directional State: You can lock your engine into a directional state (forward, neutral, or reverse) to prevent it from changing directions. To do this, put the engine into the direction you want or into neutral, to lock it into neutral, run it at a very slow speed (< 10 scale mph), and quickly but firmly press your remote’s Whistle button once followed immediately by three presses of the Bell button. -
Page 11: Maintenance
Maintenance: Lubrication and Greasing Instructions The engine should be oiled and greased in order to run properly. You should regularly oil the engine and pickup rollers to prevent them from squeaking. Use light household oil and follow the lubrication points marked “L”... -
Page 12: Cleaning The Wheels, Tires And Track
5. Repeat the procedure for the other motor and truck 6. Reassemble the chassis and body, being careful that the wires are not caught between the body and chassis, as this can lead to a short that may damage the electronics beyond repair. -
Page 13: Locomotive Traction Tire Replacement
Traction Tire Replacement Instructions Your locomotive is equipped with two neoprene rubber traction tires on the rear set of flanged drivers. While these tires are extremely durable, you may need to replace them at some point. 1. Remove the truck sides from the truck block in order to slip the new tire over the grooved drive wheel. -
Page 14: Locomotive Light Bulb Replacement
Locomotive Light Bulb Replacement To replace the light bulb in the locomotive, follow these instructions: Follow the cab removal instructions found in the “Lubrication and Greasing” section of this booklet. Once the body has been removed, rotate the headlight bulb counter-clockwise as seen in Figure 6 to remove. Figure 6: Light Bulb Replacement You can obtain replacement bulbs directly from the M.T.H. - Page 15 Figure 7: Passenger Car Light Bulb Replacement RailKing F-3 R-T -R Passenger Set with Proto-Sound® 2.0...
-
Page 16: Self-Charging Battery Back-Up
Self-Charging Battery Back-Up The special NiCad 2.4v self-charging battery pack recharges continuously during train operation and should last for up to five years. The battery is a dry battery that should not leak or cause any damage to your engine. Depending upon when your engine was built, it may need to be charged right out of the box. -
Page 17: Railware Interactive Cd-Rom
Quick-Start DVD The included DVD Quick-Start video demonstrates the start-up and basic operation of this set as well as other information about model railroading. You may find it helpful to view the DVD before operating this set. RailWare Interactive CD ROM M.T.H. -
Page 18: Troubleshooting
Troubleshooting Proto-Sound® 2.0 Problems Although Proto-Sound 2.0 has been designed and engineered for ease of use, you may have some questions during initial operation. The following table should answer most questions. If your problem cannot be resolved with this table, contact M.T.H. for assistance (telephone: 410-381-2580; fax: 410-423- 0009;... - Page 19 Lock-out Remedy I can't get the engine to run after I power up The engine maybe locked into the neutral the transformer. It sits still with the diesel position. Follow the procedure in the "Lock into a and compressor sounds running. Direction"...
-
Page 20: Compatibility
Compatibility While this Ready-To-Run set is equipped with everything you need to operate it, the design allows flexibility. The train will operate on any traditional O-31 or larger O Gauge track system, including the RealTrax® included with this set or traditional tubular track. -
Page 21: Additional Features With Dcs Remote Control System
Additional Features Accessible with the DCS Remote Control System: (additional equipment required) While conventional mode operation of a Proto-Sound 2.0 engine yields wonderfully realistic sound and several train control features, command mode operation allows the user to access a world of command functions never before accessible to O Gauge railroaders. -
Page 22: Service Parts
F-3 Diesel Locomotive Engine Parts $Price Name and Number Part # Per Unit Diaphragm ( black )( 3 rib ) FI-0000017 2.00 ( 26.0x50.0x10.0mm )( 2 center mount tabs ) Shell ( NY Yankees #1903 ) FC-2200376 *85.00 Shell ( New Haven #488 ) FC-2200377 *85.00 Shell ( Caterpillar # 2004 ) - Page 23 F-3 Diesel Locomotive Engine Parts $Price Name and Number Part # Per Unit 27.) Bracket ( black )( metal ) IH-0000386 3.00 ( 8.0x62.5mm )( 18.5mm step )( 2 mounting holes ) ( mounts speaker cone ) 28.) Volume pot ( small ) BI-0000040 5.00 ( blue pot mounted on green PC board )
- Page 24 F-3 Diesel Locomotive Engine Parts $ P r i c e Name and Number Part # Per Unit 54.) Truck side ( black ) DB-2150002 7.00 Truck side ( silver ) DB-2150006 7.00 (fits 2 axle truck)(truck side screws mount from bottom) 55.) Screw IA-0000058...
- Page 25 F-3 A Unit Diesel Engine Engine Parts RailKing F-3 R-T -R Passenger Set with Proto-Sound® 2.0...
-
Page 26: Service And Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty When you suspect an item is defective, please check the operator's manual for standard operation and trouble-shooting techniques that may correct the problem. Additional information may be found on the M.T.H. - Page 27 AUTHORIZED SERVICE CENTER AUTHORIZED SERVICE CENTER AUTHORIZED SERVICE CENTER 7020 Columbia Gateway Dr. - Columbia, MD 21046 Information: 410-381-2580 Fax: 410-381-6122 www.mth-railking.com PARTICIPATING A.S.C. RETAILER LIST ALABAMA COLORADO ILLINOIS SOUTHERLAND STATION CUSTOM RAILWA Y SUPPLY BERWYN'S TOY TRAINS & HUNTSVILLE COLORADO SPRINGS MODELS 256-533-4720...
- Page 28 HOLLY BEACH TRAIN DEPOT LOUISIANA MINNESOTA WILDWOOD AMERICA'S TRAIN YARD DON'S HOBBY CO. 609-522-2379 BATON ROUGE MANKATO 225-926-5592 507-387-1330 NEW YORK MAINE MISSOURI L B C MODEL TRAINS BUFFALO WHEELS, WINGS & THINGS SWITCH STAND 716-631-3081 LUDLOW SAINT LOUIS 207-532-6277 314-781-4458 KURT’S TRAINS &...
- Page 29 THE FREIGHT YARD CHARLEROI SWEEPER RHODE ISLAND SMITHFIELD CENTER GRANDMA'S HOUSE 919-934-6229 CHARLEROI GRANDPA'S TRAIN 724-483-3397 WARWICK LITTLE CHOO CHOO SHOP 401-463-7803 INC. JERRY QUINN TRAINS & TOYS SPENCER COATESVILLE SOUTH CAROLINA 704-637-8717 610-383-1931 EMERALD TRAIN & HOBBY GREENWOOD TRAIN LOFT CRANBERRY HOBBY DEPOT 864-223-2247 WINSTON-SALEM...
- Page 30 T S G HOBBIES SOMMERFELD'S TRAINS THE TRAIN ROOM WARRENTON BUTLER FERGUS 540-347-9212 262-783-7797 19-787-3280 HOBBY OUTLET NORGE STATION FOND DU LAC CREDIT VALLEY RAILWAY WILLIAMSBURG 920-924-3770 COMPANY 757-564-7623 TREETSVILLE G B T V & TRAINS 905-826-1306 WASHINGTON GREEN BAY 920-496-9697 B&H TRAINS EASTSIDE TRAINS...
