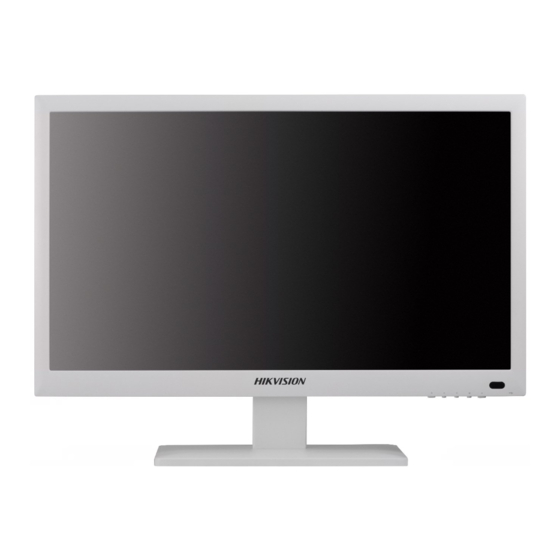

All-in-One Network Video Recorder User Manual All-in-One Network Video Recorder User Manual UD.6L0202D2084A01...
Page 2
(hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.
User Manual of All-in-One Network Video Recorder Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
User Manual of All-in-One Network Video Recorder Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
Page 5
● Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. The figures in the manual are for reference only. This manual is applicable to the model: DS-7600NI-E1/A. Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: •...
User Manual of All-in-One Network Video Recorder Product Key Features General Connectable to network cameras, network dome and encoders. Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO, and cameras that adopt ONVIF or PSIA protocol.
Page 7
User Manual of All-in-One Network Video Recorder Continuous and event video recording parameters. Multiple recording types: manual, continuous, alarm, motion, motion | alarm, motion & alarm, and VCA. 8 recording time periods with separated recording types each day. ...
Page 8
User Manual of All-in-One Network Video Recorder is supported for downloading files. Remote parameters setup; remote import/export of device parameters. Remote viewing of the device status, system logs and alarm status. Remote HDD formatting and program upgrading. ...
All-in-One Network Video Recorder User Manual TABLE OF CONTENTS Product Key Features ............................5 Chapter 1 Introduction ........................12 Front View ............................. 13 IR Remote Control Operations ...................... 14 USB Mouse Operation ........................17 Input Method Description ......................18 Rear View ............................19 Chapter 2 Getting Started ........................
Page 10
User Manual of All-in-One Network Video Recorder 5.2.6 Calling Patterns ......................... 57 5.2.7 Customizing Linear Scan Limit ..................58 5.2.8 Calling Linear Scan ......................59 5.2.9 One-touch Park ......................... 59 PTZ Control Panel ......................... 61 Chapter 6 Recording Settings......................62 Configuring Parameters .........................
Page 11
User Manual of All-in-One Network Video Recorder 10.2 Line Crossing Detection ......................116 10.3 Intrusion Detection ........................118 10.4 Region Entrance Detection ......................120 10.5 Region Exiting Detection ......................121 10.6 Loitering Detection ........................121 10.7 People Gathering Detection ......................121 10.8 Fast Moving Detection ........................
Page 12
17.1 Specifications ..........................183 17.2 Glossary ............................184 17.3 Troubleshooting ........................... 185 17.4 Summary of Changes ........................191 17.5 List of Compatible IP Cameras ....................193 List of Hikvision IP Cameras ...................... 193 List of Third-party IP Cameras ....................198...
User Manual of All-in-One Network Video Recorder 1.1 Front View Figure 1. 1 Front View Table 1. 1 Description of Buttons Icon Description Press it to switch input source. In main menu interface, press it to select and enter a sub-menu. In sub-menu interface, press it to exit the sub-menu.
User Manual of All-in-One Network Video Recorder 1.2 IR Remote Control Operations The NVR may also be controlled with the included IR remote control, shown in Figure 1. 2. Batteries (2× AAA) must be installed before operation. Figure 1. 2 Remote Control The keys on the remote control closely resemble the ones on the front panel.
Page 16
User Manual of All-in-One Network Video Recorder Name Description In Playback mode, it is used to show/hide the control interface. Press and hold for 3 second to call the LCD menu. Enter the Manual Record setting menu. In PTZ control settings, press the button and then you can call a PTZ preset REC Button by pressing Numeric button.
Page 17
User Manual of All-in-One Network Video Recorder 1. Go to Menu > Configuration > General > More Settings by operating the front control panel or the mouse. 2. Check and remember NVR ID#. The default ID# is 255. This ID# is valid for all the IR remote controls. 3.
User Manual of All-in-One Network Video Recorder 1.3 USB Mouse Operation A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this NVR. To use a USB mouse: 1. Plug USB mouse into one of the USB interfaces on the front panel of the NVR. 2.
User Manual of All-in-One Network Video Recorder 1.4 Input Method Description There are two input method supported, English and numbers. You can click the button to switch to English and numbers. Figure 1. 3 Soft Keyboard - English Description of the buttons on the soft keyboard: Table 1.
User Manual of All-in-One Network Video Recorder 1.5 Rear View Figure 1. 5 Rear View Table 1. 6 Description of Interfaces Name Description AOUT-VGA Audio output interface for NVR VGA signal. VGA OUT Video output interface for NVR VGA signal. Network interface.
User Manual of All-in-One Network Video Recorder 2.1 Starting Up and Shutting Down the NVR Purpose: Proper startup and shutdown procedures are crucial to expanding the life of the NVR. Before you start: Check that the voltage of the extra power supply is the same with the NVR’s requirement, and the ground connection is working properly.
User Manual of All-in-One Network Video Recorder 2.2 Setting Admin Password Purpose: For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation. Steps: 1. Input the same password in the text field of Create New Password and Confirm New Password. Figure 2.
User Manual of All-in-One Network Video Recorder 2.3 Using the Wizard for Basic Configuration Purpose: After admin password is set, the setup wizard pops up automatically. It can walk you through some basic settings of the NVR. Figure 2. 5 Start Wizard Interface Operating the Setup Wizard: 1.
Page 25
User Manual of All-in-One Network Video Recorder Figure 2. 7 Network Configuration Interface 4. Click Next button after you configured the basic network parameters. Then you will enter the EZVIZ Cloud P2P interface. Configure the EZVIZ Cloud P2P according to your need. Figure 2.
Page 26
User Manual of All-in-One Network Video Recorder Figure 2. 9 Advanced Network Parameters 6. Click Next button to save the settings and enter the HDD management window, shown in Figure 2. 10. Figure 2. 10 HDD Management 7. To initialize the HDD, check the checkbox of the HDD and click the Init button. Initialization removes all the data saved in the HDD.
Page 27
User Manual of All-in-One Network Video Recorder Figure 2. 11 Importing Advertising Interface. 9. Connect an USB storage device where advertising file stored, click to select the file and click Import. 10. Click Next button to enter the IP Camera Management interface. 11.
Page 28
User Manual of All-in-One Network Video Recorder Figure 2. 13 Record Settings 13. Click the to configure the all-day Continuous or Motion Detection recording for all channels. 14. Click OK to finish the startup Setup Wizard.
User Manual of All-in-One Network Video Recorder 2.4 Login and Logout 2.4.1 User Login Purpose: If NVR has logged out, you must login the device before operating the menu and other functions. Steps: 1. Select the User Name in the dropdown list. Figure 2.
Page 30
User Manual of All-in-One Network Video Recorder Figure 2. 16 Logout 2. Click Logout. After you have logged out the system, menu operation on the screen is invalid. It is required to input a user name and password to unlock the system.
User Manual of All-in-One Network Video Recorder 2.5 Operating LCD Menu 2.5.1 Configuring Displayer Parameters Purpose: You can press the buttons in front panel to adjust the displayer parameters, including picture mode, off time, on time, OSD language, volume and restore factory default. We take the example of adjusting picture mode to describe the operation.
User Manual of All-in-One Network Video Recorder 2.5.2 Switching Input Source Purpose: You can switch the input source to NVR, VGA or HDMI. Steps: 1. Press to enter input source interface. Input Source HDMI Figure 2. 19 Input Source Menu 2.
User Manual of All-in-One Network Video Recorder 2.6 Adding and Connecting the IP Cameras 2.6.1 Activating the IP Camera Purpose: Before adding the camera, make sure the IP camera to be added is in active status. Before you start: Ensure the network connection is valid and correct. For detailed checking and configuring of the network, please see Chapter 12.3 Checking Network Traffic and Chapter 12.4 Configuring Network Detection.
User Manual of All-in-One Network Video Recorder 3. Set the password of the camera to activate it. Use Admin Password: when you check the checkbox, the camera (s) will be configured with the same admin password of the operating NVR. Figure 2.
Page 35
User Manual of All-in-One Network Video Recorder Figure 2. 23 Right-click Menu Option 2: Menu > Camera > Camera Check the checkbox of Enable Auto Scan to Add. By default, the function is enabled. Manual Adding Steps: 1. Enter IP Camera Management interface. ...
Page 36
User Manual of All-in-One Network Video Recorder Figure 2. 25 IP Camera Management Interface (By Option 1) Figure 2. 26 IP Camera Management Interface (By Option 2) Table 2. 1 Explanation of Icons Icon Explanation Icon Explanation Edit basic parameters of the camera Add the detected IP camera.
User Manual of All-in-One Network Video Recorder 2.6.2 Editing the Connected IP Cameras and Configuring Customized Protocols After the adding of the IP cameras, the basic information of the camera lists in the page, you can configure the basic setting of the IP cameras. Steps: 1.
Page 38
User Manual of All-in-One Network Video Recorder customized protocols for them. Steps: 1. Click the Protocol button in the custom adding IP camera interface to enter the protocol management interface. Figure 2. 29 Protocol Management Interface There are 16 customized protocols provided in the system, you can edit the protocol name; and choose whether to enable the sub-stream.
Page 39
User Manual of All-in-One Network Video Recorder Figure 2. 30 Protocol Setting 3. Choose the protocols you just added to validate the connection of the network camera.
User Manual of All-in-One Network Video Recorder 3.1 Introduction of Live View Live view shows you the video image getting from each camera in real time. The NVR automatically enters Live View mode when powered on. It is also at the very top of the menu hierarchy, thus pressing the ESC many times (depending on which menu you’re on) brings you to the Live View mode.
User Manual of All-in-One Network Video Recorder 3.2 Operations in Live View Mode In live view mode, there are many functions provided. The functions are listed below. • Single Screen: showing only one screen on the monitor. • Multi-screen: showing multiple screens on the monitor simultaneously. •...
User Manual of All-in-One Network Video Recorder Figure 3. 1 Right-click Menu 3.2.2 Quick Setting Toolbar in Live View Mode On the screen of each channel, there is a quick setting toolbar which shows when you single click the mouse in the corresponding screen.
Page 44
User Manual of All-in-One Network Video Recorder Figure 3. 3 Digital Zoom Image Settings icon can be selected to enter the Image Settings menu. Figure 3. 4 Image Settings- Preset You can set the image parameters like brightness, contrast, saturation and hue. Figure 3.
Page 45
User Manual of All-in-One Network Video Recorder Live View Strategy can be selected to set strategy, including Real-time, Balanced, Fluency. Figure 3. 6 Live View Strategy...
User Manual of All-in-One Network Video Recorder 3.3 Adjusting Live View Settings Purpose: Live View settings can be customized according to different needs. You can configure the output interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc. Steps: 1.
User Manual of All-in-One Network Video Recorder 4.1 Importing Advertising Files Purpose: The device provides you with a function of previewing advertising files. You can import the customized videos, audios and pictures into the device as the advertising files. Before you start: 1.
User Manual of All-in-One Network Video Recorder Supported advertising file: video, audio and picture. The maximum capacity of imported advertising files is 4GB. The maximum quantity of imported advertising files is 100. 4.2 Advertising Preview Purpose: The device will play back the advertising files which are imported in the device or stored in the root directory of USB storage device, if the advertising preview function is enabled.
User Manual of All-in-One Network Video Recorder 4. Click to select the advertising type as Video, Audio or Picture. Then the advertising will start preview. 5. To exit the preview, you can right-click the preview image. 4.2.2 General Advertising Steps: 1.
User Manual of All-in-One Network Video Recorder Figure 4. 4 Advanced Configuration Interface 2. Select Advertising Type in the dropdown list. Advertising Type is selected as Video 1) Check the checkboxes of files you want to preview in the list of Play Sequence. 2) Click the button after the file to adjust the squence and click OK to save the setting.
Page 52
User Manual of All-in-One Network Video Recorder images or delete them. Steps: 1. Enter Advertising Preview interface. Menu > Advertising > Advertising Preview Figure 4. 6 Advertising Preview Interface 2. Click the button to check the file Click the button to delete the file.
User Manual of All-in-One Network Video Recorder 5.1 Configuring PTZ Settings Purpose: Follow the procedure to set the parameters for PTZ. The configuring of the PTZ parameters should be done before you control the PTZ camera. Steps: 1. Enter the PTZ Settings interface. Menu >Camera>...
User Manual of All-in-One Network Video Recorder 5.2 Setting PTZ Presets, Patrols & Patterns Before you start: Please make sure that the presets, patrols and patterns should be supported by PTZ protocols. 5.2.1 Customizing Presets Purpose: Follow the steps to set the Preset location which you want the PTZ camera to point to when an event takes place. Steps: 1.
User Manual of All-in-One Network Video Recorder Or press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel. 2.
User Manual of All-in-One Network Video Recorder 3. Click the Set button to add key points for the patrol. Figure 5. 6 Key point Configuration 4. Configure key point parameters, such as the key point No., duration of staying for one key point and speed of patrol.
User Manual of All-in-One Network Video Recorder 5.2.5 Customizing Patterns Purpose: Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the PTZ movement according to the predefined path. Steps: 1. Enter the PTZ Control interface. Menu >...
User Manual of All-in-One Network Video Recorder Figure 5. 9 PTZ Panel - General 3. Click the Call Pattern button to call it. 4. Click the Stop Pattern button to stop calling it. 5.2.7 Customizing Linear Scan Limit Purpose: The Linear Scan can be enabled to trigger the scan in the horizantal direction in the predefined range. This function is supported by some certain models.
User Manual of All-in-One Network Video Recorder The speed dome starts linear scan from the left limit to the right limit, and you must set the left limit on the left side of the right limit, as well the angle from the left limit to the right limit should be no more than 180º...
Page 61
User Manual of All-in-One Network Video Recorder Figure 5. 12 PTZ Panel - One-touch 3. There are 3 one-touch park types selectable, click the corresponding button to activate the park action. Park (Quick Patrol): The dome starts patrol from the predefined preset 1 to preset 32 in order after the park time.
User Manual of All-in-One Network Video Recorder 5.3 PTZ Control Panel To enter the PTZ control panel, there are two ways supported. OPTION 1: In the PTZ settings interface, click the PTZ button on the lower-right corner which is next to the Back button. OPTION 2: In the Live View mode, you can press the PTZ Control button on the front panel or on the remote control, or choose the PTZ Control icon...
User Manual of All-in-One Network Video Recorder 6.1 Configuring Parameters Purpose: By configuring the parameters you can define the parameters which affect the image quality, such as the transmission stream type, the resolution and so on. Steps: 1. Enter the Record settings interface to configure the recording parameters: Menu >...
Page 65
User Manual of All-in-One Network Video Recorder Figure 6. 2 Sub-stream Parameters 2) Configure the parameters of the camera. 3) Click Apply to save the settings.
User Manual of All-in-One Network Video Recorder 6.2 Configuring Recording Schedule Purpose: Set the recording schedule, and then the camera automatically starts/stops recording according to the configured schedule. Steps: 1. Enter the Record Schedule interface. Menu > Record > Schedule 2.
Page 67
User Manual of All-in-One Network Video Recorder Figure 6. 5 Edit Schedule III. To arrange other schedule, leave the All Day checkbox blank and set the Start/End time. Up to 8 periods can be configured for each day. And the time periods cannot be overlapped each other. IV.
Page 68
User Manual of All-in-One Network Video Recorder Click the Apply button to validate the settings. 3. (Optional) If the settings can also be used to other channels, click Copy, and then choose the channel to which you want to copy. 4.
User Manual of All-in-One Network Video Recorder 6.3 Configuring Motion Detection Recording Purpose: Follow the steps to set the motion detection parameters. In the live view mode, once a motion detection event takes place, the NVR can analyze it and do many actions to handle it. Enabling motion detection function can trigger certain channels to start recording, or trigger full screen monitoring, audio warning, notify the surveillance center and so on.
Page 70
User Manual of All-in-One Network Video Recorder 7) Click OK to back to the upper level menu. 8) Exit the Motion Detection menu. Edit the Motion Detection Record Schedule. For the detailed information of schedule configuration, see Chapter Configuring Recording Schedule.
User Manual of All-in-One Network Video Recorder 6.4 Configuring Alarm Triggered Recording Purpose: Follow the procedure to configure alarm triggered recording. Steps: 1. Enter the Alarm setting interface. Menu > Configuration > Alarm Figure 6. 10 Alarm Settings 2. Click Alarm Input tab and set the alarm parameters. Figure 6.
Page 72
User Manual of All-in-One Network Video Recorder Figure 6. 12 Alarm Settings Choose the alarm triggered recording channel. Check the checkbox to select channel. Click Apply to save settings. Click OK to back to the upper level menu. Repeat the above steps to configure other alarm input parameters. If the settings can also be applied to other alarm inputs, click Copy and choose the alarm input number.
User Manual of All-in-One Network Video Recorder 6.5 Configuring VCA Triggered Recording Purpose: The event triggered recording can be configured through the menu. Then events include the motion detection, alarm and VCA events (face detection/face capture, line crossing detection, intrusion detection, region entrance detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking detection, unattended baggage detection, object removal detection, audio loss exception detection, sudden change of sound intensity detection, and defocus detection).
Page 74
User Manual of All-in-One Network Video Recorder Figure 6. 15 Set Trigger Camera of VCA Alarm The PTZ Linking function is only available for the VCA settings of IP cameras. 4. Enter Record Schedule settings interface (Menu > Record > Schedule > Record Schedule), and then set VCA as the record type.
User Manual of All-in-One Network Video Recorder 6.6 Manual Recording Purpose: Follow the steps to set parameters for the manual record. Using manual record, you need to manually cancel the record. The manual recording is prior to the scheduled recording. Steps: 1.
User Manual of All-in-One Network Video Recorder 6.7 Configuring Holiday Recording Purpose: Follow the steps to configure the record schedule on holiday for that year. You may want to have different plan for recording on holiday. Steps: 1. Enter the Record setting interface. Menu >...
User Manual of All-in-One Network Video Recorder 6.8 Files Protection Purpose: You can lock the recorded files to protect the record files from being overwritten. Steps: 1. Enter Export setting interface. Menu > Export Figure 6. 19 Export Interface 2. Select the channels you want to investigate by checking the checkbox to 3.
User Manual of All-in-One Network Video Recorder 7.1 Playing Back Record Files 7.1.1 Instant Playback Purpose: Play back the recorded video files of a specific channel in the live view mode. Channel switch is supported. Instant playback by channel Steps: Choose a channel in live view mode using the mouse and click the button in the quick setting toolbar.
Page 80
User Manual of All-in-One Network Video Recorder Figure 7. 2 Right-click Menu under Live View Playback by Time Purpose: Play back video files recorded in specified time duration. Multi-channel simultaneous playback and channel switch are supported. Steps: 1. Enter playback interface. Menu>Playback 2.
Page 81
User Manual of All-in-One Network Video Recorder Figure 7. 4 Playback Interface Click the channel(s) to execute simultaneous playback of multiple channels. Figure 7. 5 Toolbar of Playback indicates the start/end time of the record. Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate specific frames.
User Manual of All-in-One Network Video Recorder 7.1.3 Playing Back by Event Search Purpose: Play back record files on one or several channels searched out by restricting event type (e.g. alarm input and motion detection). Steps: 1. Enter the Playback interface. Menu >...
Page 83
User Manual of All-in-One Network Video Recorder Figure 7. 7 Search Result Bar 5. Click button to play back the file. You can click the Back button to back to the search interface. Pre-play and post-play can be configured. 6. Playback interface. The toolbar in the bottom part of Playback interface can be used to control playing process.
User Manual of All-in-One Network Video Recorder 7.1.4 Playing Back by Tag Purpose: Video tag allows you to record related information like people and location of a certain time point during playback. You are also allowed to use video tag(s) to search for record files and position time point. Before playing back by tag: 1.
Page 85
User Manual of All-in-One Network Video Recorder Figure 7. 10 Tag Management Interface Steps: 1. Select the Tag from the drop-down list in the Playback interface. 2. Choose channels, edit start time and end time, and then click Search to enter Search Result interface. You can enter keyword in the textbox to search the tag on your command.
User Manual of All-in-One Network Video Recorder 7.1.5 Smart Playback Purpose: The smart playback function provides an easy way to get through the less effective information. When you select the smart playback mode, the system will analyze the video containing the motion or VCA information, mark it with green color and play it in the normal speed while the video without motion will be played in the 16-time speed.
Page 87
User Manual of All-in-One Network Video Recorder Button Operation Button Operation Button Operation Draw line for the Draw quadrilateral Draw rectangle line crossing for the intrusion for the intrusion detection detection detection Set full screen for Start/Stop Clear all motion detection clipping File management for Pause playing /...
User Manual of All-in-One Network Video Recorder 8. (Optional) You can click to filter the searched video files by setting the target characters, including the gender and age of the human and whether he/she wears glasses. Figure 7. 15 Set Result Filter 7.1.6 Playing Back by System Logs Purpose: Play back record file(s) associated with channels after searching system logs.
User Manual of All-in-One Network Video Recorder Figure 7. 17 Result of System Log Search 4. Playback interface. The toolbar in the bottom part of Playback interface can be used to control playing process. Figure 7. 18 Interface of Playback by Log 7.1.7 Playing Back External File Purpose: Perform the following steps to look up and play back files in the external devices.
Page 90
User Manual of All-in-One Network Video Recorder Figure 7. 19 Interface of External File Playback...
User Manual of All-in-One Network Video Recorder 7.2 Auxiliary Functions of Playback 7.2.1 Playing Back Frame by Frame Purpose: Play video files frame by frame, in case of checking image details of the video when abnormal events happen. Steps: 1. Enter Playback interface. 2.
Page 92
User Manual of All-in-One Network Video Recorder Steps: 1. Enter Playback interface. Menu > Playback 2. Select Sub-periods from the drop-down list in the upper-left corner of the page to enter the Sub-periods Playback interface. 3. Select a date and start playing the video file. 4.
User Manual of All-in-One Network Video Recorder 8.1 Backing up Record Files 8.1.1 Quick Export Purpose: Export record files to backup device(s) quickly. Steps: 1. Enter Video Export interface. Menu > Export > Normal Choose the channel(s) you want to back up and click Quick Export button. The time duration of record files on a specified channel cannot exceed one day.
Page 95
User Manual of All-in-One Network Video Recorder Figure 8. 2 Quick Export using USB1-1 Stay in the Exporting interface until all record files are exported. Figure 8. 3 Export Finished 4. Check backup result. The Player player.exe will be exported automatically during record file export. Figure 8.
User Manual of All-in-One Network Video Recorder 8.1.2 Backing up by Normal Video Search Purpose: The record files can be backup to various devices, such as USB devices (USB flash drives, USB HDDs, USB writer), SATA writer and e-SATA HDD. Backup using USB flash drives and USB HDDs Steps: 1.
Page 97
User Manual of All-in-One Network Video Recorder Figure 8. 6 Result of Normal Video Search for Backup 5. Export the video files or picture files. Click Export All button to export all the files. Or you can select recording files you want to back up, and click Export button to enter Export interface. If the inserted USB device is not recognized: •...
User Manual of All-in-One Network Video Recorder Figure 8. 8 Export Finished The backup of video files using USB writer or SATA writer has the same operating instructions. Please refer to steps described above. 8.1.3 Backing up by Event Search Purpose: Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer), SATA writer or eSATA HDD.
User Manual of All-in-One Network Video Recorder Figure 8. 10 Result of Event Search 6. Export the video files. Please refer to step5 of Chapter 8.1.2 Backing up by Normal Video Search for details. 8.1.4 Backing up Video Clips Purpose: You may also select video clips in playback mode to export directly during Playback, using USB devices (USB flash drives, USB HDDs, USB writer), SATA writer or eSATA HDD.
User Manual of All-in-One Network Video Recorder 8.2 Managing Backup Devices Management of USB flash drives, USB HDDs and eSATA HDDs Steps: 1. Enter the Export interface. Figure 8. 12 Storage Device Management 2. Backup device management. Click New Folder button if you want to create a new folder in the backup device. Select a record file or folder in the backup device and click button if you want to delete it.
User Manual of All-in-One Network Video Recorder 9.1 Setting Motion Detection Alarm Steps: 1. Enter Motion Detection interface of Camera Management and choose a camera you want to set up motion detection. Menu > Camera > Motion 2. Set up detection area and sensitivity. Tick Enable Motion Detection, and use the mouse to draw detection area(s) and drag the sensitivity bar to set sensitivity.
Page 103
User Manual of All-in-One Network Video Recorder Time periods shall not be repeated or overlapped. Figure 9. 3 Set Arming Schedule of Motion Detection 5. Click Handling tab to set up alarm response actions of motion alarm (please refer to Chapter Setting Alarm Response Actions).
User Manual of All-in-One Network Video Recorder 9.2 Setting Sensor Alarms Purpose: Set the handling action of an external sensor alarm. Steps: 1. Enter Alarm Settings of System Configuration and select an alarm input. Menu > Configuration > Alarm Figure 9. 4 Alarm Status Interface of System Configuration 2.
Page 105
User Manual of All-in-One Network Video Recorder Figure 9. 6 Set Arming Schedule of Alarm Input Choose one day of a week and Max. eight time periods can be set within each day, and click Apply to save the settings. Time periods shall not be repeated or overlapped.
Page 106
User Manual of All-in-One Network Video Recorder inputs to copy the settings to them. Figure 9. 8 Copy Settings of Alarm Input...
User Manual of All-in-One Network Video Recorder 9.3 Detecting Video Loss Alarm Purpose: Detect video loss of a channel and take alarm response action(s). Steps: 1. Enter Video Loss interface of Camera Management and select a channel you want to detect. Menu >...
User Manual of All-in-One Network Video Recorder 9.4 Detecting Video Tampering Alarm Purpose: Trigger alarm when the lens is covered and take alarm response action(s). Steps: 1. Enter Video Tampering interface of Camera Management and select a channel you want to detect video tampering.
Page 109
User Manual of All-in-One Network Video Recorder Figure 9. 12 Set Arming Schedule of Video Tampering 4. Select Linkage Action tab to set up alarm response actions of video tampering alarm (please refer to Chapter 9.6 Setting Alarm Response Actions). 5.
User Manual of All-in-One Network Video Recorder 9.5 Handling Exceptions Alarm Purpose: Exception settings refer to the handling action of various exceptions, e.g. • HDD Full: The HDD is full. • HDD Error: Writing HDD error or unformatted HDD. • Network Disconnected: Disconnected network cable.
User Manual of All-in-One Network Video Recorder 9.6 Setting Alarm Response Actions Purpose: Alarm response actions will be activated when an alarm or exception occurs, including Event Hint Display, Full Screen Monitoring, Audible Warning (buzzer), Notify Surveillance Center, Upload Picture to FTP, Trigger Alarm Output and Send Email.
Page 112
User Manual of All-in-One Network Video Recorder You must select during “Trigger Channel” settings the channel(s) you want to make full screen monitoring. Audible Warning Trigger an audible beep when an alarm is detected. Notify Surveillance Center Sends an exception or alarm signal to remote alarm host when an event occurs. The alarm host refers to the PC installed with Remote Client.
Page 113
User Manual of All-in-One Network Video Recorder Figure 9. 17 Set Arming Schedule of Alarm Output 4. Repeat the above steps to set up arming schedule of other days of a week. You can also use Copy button to copy an arming schedule to other days. Click the OK button to complete the video tampering settings of the alarm output No.
User Manual of All-in-One Network Video Recorder 9.7 Triggering or Clearing Alarm Output Manually Purpose: Sensor alarm can be triggered or cleared manually. If “Manually Clear” is selected in the dropdown list of dwell time of an alarm output, the alarm can be cleared only by clicking Clear button in the following interface. Steps: 1.
User Manual of All-in-One Network Video Recorder All VCA detection must be supported by the connected IP camera. 10.1 Face Detection Purpose: Face detection function detects the face appears in the surveillance scene, and some certain actions can be taken when the alarm is triggered.
User Manual of All-in-One Network Video Recorder 10.2 Line Crossing Detection Purpose: This function can be used for detecting people, vehicles and objects cross a set virtual line. The line crossing direction can be set as bidirectional, from left to right or from right to left. And you can set the duration for the alarm response actions, such as full screen monitoring, audible warning, etc.
Page 118
User Manual of All-in-One Network Video Recorder Up to 4 rules can be configured. Figure 10. 4 Draw Line for Line Crossing Detection Click Apply to activate the settings.
User Manual of All-in-One Network Video Recorder 10.3 Intrusion Detection Purpose: Intrusion detection function detects people, vehicle or other objects which enter and loiter in a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered. Steps: Enter the VCA settings interface.
Page 120
User Manual of All-in-One Network Video Recorder Up to 4 rules can be configured. Figure 10. 6 Draw Area for Intrusion Detection Click Apply to save the settings.
User Manual of All-in-One Network Video Recorder 10.4 Region Entrance Detection Purpose: Region entrance detection function detects people, vehicle or other objects which enter a pre-defined virtual region from the outside place, and some certain actions can be taken when the alarm is triggered. Steps: Enter the VCA settings interface.
User Manual of All-in-One Network Video Recorder 10.5 Region Exiting Detection Purpose: Region exiting detection function detects people, vehicle or other objects which exit from a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered. ...
User Manual of All-in-One Network Video Recorder Please refer to the Chapter 9.4 Intrusion Detection for operating steps to configure the fast moving detection. The Sensitivity in the Rule Settings defines the moving speed of the object which can trigger the alarm. The higher the value is, the more easily a moving object can trigger the alarm.
User Manual of All-in-One Network Video Recorder Please refer to the Chapter 9.4 Intrusion Detection for operating steps to configure the object removal detection. The Threshold [5s-20s] in the Rule Settings defines the time of the objects removed from the region. If you set the value as 10, alarm is triggered after the object disappears from the region for 10s.
User Manual of All-in-One Network Video Recorder Click Apply to activate the settings. 10.13 Sudden Scene Change Detection Purpose: Scene change detection function detects the change of surveillance environment affected by the external factors; such as the intentional rotation of the camera, and some certain actions can be taken when the alarm is triggered. ...
User Manual of All-in-One Network Video Recorder With the configured VCA detection, the NVR supports the VCA search for the people counting and heat map results. 11.1 People Counting Purpose: The People Counting is used to calculate the number of people entered or left a certain configured area and form in daily/weekly/monthly/annual reports for analysis.
User Manual of All-in-One Network Video Recorder 11.2 Heat Map Purpose: Heat map is a graphical representation of data represented by colors. The heat map function is usually used to analyze the visit times and dwell time of customers in a configured area. The heat map function must be supported by the connected IP camera and the corresponding configuration must be set.
User Manual of All-in-One Network Video Recorder 12.1 Configuring General Settings Purpose: Network settings must be properly configured before you operate NVR over network. Steps: 1. Enter the Network Settings interface. Menu > Configuration > Network 2. Select the General tab. Figure 12.
User Manual of All-in-One Network Video Recorder 12.2 Configuring Advanced Settings 12.2.1 Configuring PPPoE Settings Purpose: Your NVR also allows access by Point-to-Point Protocol over Ethernet (PPPoE). Steps: 1. Enter the Network Settings interface. Menu > Configuration > Network 2. Select the PPPoE tab to enter the PPPoE Settings interface, as shown in Figure 12. 2. Figure 12.
User Manual of All-in-One Network Video Recorder scanning tool of your phone to quickly get the code by scanning the QR code below. Figure 12. 3 EZVIZ Cloud P2P Settings Interface 7. Click the Apply button to save and exit the interface. After configuration, you can access and manage the NVR by your mobile phone on which the EZVIZ Cloud P2P application is installed or by the EZVIZ website (www.ezviz7.com).
Page 133
User Manual of All-in-One Network Video Recorder Figure 12. 4 IPServer Settings Interface • DynDNS: 1) Enter Server Address for DynDNS (i.e. members.dyndns.org). 2) In the NVR Domain Name text field, enter the domain obtained from the DynDNS website. 3) Enter the User Name and Password registered in the DynDNS website. Figure 12.
Page 134
User Manual of All-in-One Network Video Recorder Figure 12. 7 NO-IP Settings Interface • HiDDNS: 1) Select the continent/country of the server on which the device is registered. 2) The Server Address of the HiDDNS server appears by default: www.hik-online.com. 3) Enter the Device Domain Name.
Page 135
User Manual of All-in-One Network Video Recorder 2) Click to register an account if you do not have one and use the account to log in. Figure 12. 10 Register an Account 3) In the Device Management interface, click to register the device. Figure 12.
User Manual of All-in-One Network Video Recorder If you mapped the HTTP port on your router and changed it to port No. except 80, you have to enter http://www.hik-online.com/alias:HTTP port in the address bar to access the device. You can refer to Chapter 9.2.11 for the mapped HTTP port No.
User Manual of All-in-One Network Video Recorder Figure 12. 13 NTP Settings Interface 3. Check the Enable NTP checkbox to enable this feature. 4. Configure the following NTP settings: • Interval: Time interval between the two synchronizing actions with NTP server. The unit is minute. •...
User Manual of All-in-One Network Video Recorder the surveillance center. 12.2.6 Configuring Remote Alarm Host Purpose: With a remote alarm host configured, the NVR will send the alarm event or exception message to the host when an alarm is triggered. The remote alarm host must have the Network Video Surveillance software installed. Steps: 1.
User Manual of All-in-One Network Video Recorder 4. Click the Apply button to save and exit the interface. The multicast function should be supported by the network switch to which the NVR is connected. 12.2.8 Configuring RTSP Purpose: The RTSP (Real Time Streaming Protocol) is a network control protocol designed for use in communication systems to control streaming media servers.
User Manual of All-in-One Network Video Recorder 12.2.10 Configuring Email Purpose: The system can be configured to send an Email notification to all designated users if an alarm event is detected, etc., an alarm or motion event is detected or the administrator password is changed. Before configuring the Email settings, the NVR must be connected to a local area network (LAN) that maintains an SMTP mail server.
User Manual of All-in-One Network Video Recorder Sender: The name of sender. Sender’s Address: The Email address of sender. Select Receivers: Select the receiver. Up to 3 receivers can be configured. Receiver: The name of user to be notified. Receiver’s Address: The Email address of user to be notified. Enable Attached Pictures: Check the checkbox of Enable Attached Picture if you want to send email with attached alarm images.
Page 142
User Manual of All-in-One Network Video Recorder Figure 12. 22 UPnP™ Settings Interface checkbox to enable UPnP™. 3. Check 4. Select the Mapping Type as Manual or Auto in the drop-down list. OPTION 1: Auto If you select Auto, the Port Mapping items are read-only, and the external ports are set by the router automatically.
Page 143
User Manual of All-in-One Network Video Recorder Figure 12. 24 External Port Settings Dialog Box Click Apply button to save the settings. You can click Refresh button to get the latest status of the port mapping. Figure 12. 25 UPnP™ Settings Finished-Manual ...
User Manual of All-in-One Network Video Recorder Figure 12. 26 External Port Settings Dialog Box 5. Click OK to save the setting for the current port and return to the upper-level menu. 6. Click Apply button to save the settings. 7.
Page 145
User Manual of All-in-One Network Video Recorder Figure 12. 28 Network Traffic Interface 2. You can view the sending rate and receiving rate information on the interface. The traffic data is refreshed every 1 second.
User Manual of All-in-One Network Video Recorder 12.4 Configuring Network Detection Purpose: You can obtain network connecting status of NVR through the network detection function, including network delay, packet loss, etc. 12.4.1 Testing Network Delay and Packet Loss Steps: 1. Enter the Network Traffic interface. Menu >...
User Manual of All-in-One Network Video Recorder device, please check whether it is compatible with the NVR. You can format the backup device if the format is incorrect. Figure 12. 31 Export Network Packet 4. Click Export button to start exporting. 5.
User Manual of All-in-One Network Video Recorder If the network is normal the following message box pops out. Figure 12. 34 Network status checking result If the message box pops out with other information instead of this one, you can click Network button to show the quick setting interface of the network parameters.
User Manual of All-in-One Network Video Recorder 13.1 Initializing HDDs Purpose: The hard disk drive (HDD) must be initialized before it can be used with your NVR. A message box pops up when the NVR starts up if there exits any uninitialized HDD. Figure 13.
Page 151
User Manual of All-in-One Network Video Recorder Figure 13. 5 HDD Status Changes to Normal Initializing the HDD will erase all data on it.
User Manual of All-in-One Network Video Recorder 13.2 Managing Network HDD Purpose: You can add the allocated NAS or disk of IP SAN to NVR, and use it as network HDD. Steps: Enter the HDD Information interface. Menu > HDD > General Figure 13.
Page 153
User Manual of All-in-One Network Video Recorder Figure 13. 8 Add NAS Disk • Add IP SAN: 1) Enter the NetHDD IP address in the text field. 2) Click the Search button to search the available IP SAN disks. 3) Select the IP SAN disk from the list shown below. 4) Click the OK button to add the selected IP SAN disk.
User Manual of All-in-One Network Video Recorder 13.3 Configuring Quota Mode Purpose: Each camera can be configured with allocated quota for the storage of recorded files. Steps: 1. Enter the Storage Mode interface. Menu > HDD > Advanced 2. Set the Mode to Quota, as shown in Figure 13. 11. The NVR must be rebooted to enable the changes to take effect.
Page 155
User Manual of All-in-One Network Video Recorder Figure 13. 13 Copy Settings to Other Camera(s) 6. Select the camera (s) to be configured with the same quota settings. You can also click the checkbox of IP Camera to select all cameras. 7.
User Manual of All-in-One Network Video Recorder 13.4 Checking HDD Status Purpose: You may check the status of the installed HDDs on NVR so as to take immediate check and maintenance in case of HDD failure. Checking HDD Status in HDD Information Interface Steps: 1.
User Manual of All-in-One Network Video Recorder 13.5 HDD Detection Purpose: The device provides the HDD detection function such as the adopting of the S.M.A.R.T. and the Bad Sector Detection technique. The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system for HDD to detect and report on various indicators of reliability in the hopes of anticipating failures.
Page 158
User Manual of All-in-One Network Video Recorder Figure 13. 17 Bad Sector Detection And you can click Error info button to see the detailed damage information. And you can also pause/resume or cancel the detection.
User Manual of All-in-One Network Video Recorder 13.6 Configuring HDD Error Alarms Purpose: You can configure the HDD error alarms when the HDD status is Uninitialized or Abnormal. Steps: 1. Enter the Exception interface. Menu > Configuration > Exceptions 2. Select the Exception Type to HDD Error from the dropdown list. 3.
User Manual of All-in-One Network Video Recorder 14.1 Configuring OSD Settings Purpose: You can configure the OSD (On-screen Display) settings for the camera, including date /time, camera name, etc. Steps: 1. Enter the OSD Configuration interface. Menu > Camera > OSD 2.
User Manual of All-in-One Network Video Recorder 14.2 Configuring Privacy Mask Purpose: You are allowed to configure the four-sided privacy mask zones that cannot be viewed by the operator. The privacy mask can prevent certain surveillance areas to be viewed or recorded. Steps: 1.
User Manual of All-in-One Network Video Recorder 14.3 Configuring Video Parameters Steps: 1. Enter the Image Settings interface. Menu > Camera >Image Figure 14. 4 Image Settings Interface 2. Select the camera to set image parameters. 3. You can click on the arrow to change the value of each parameter. 4.
User Manual of All-in-One Network Video Recorder 15.1 Viewing System Information Steps: 1. Enter the System Information interface. Menu > Maintenance > System Info 2. You can click the Device Info, Camera, Record, Alarm, Network and HDD tabs to view the system information of the device.
User Manual of All-in-One Network Video Recorder 15.2 Searching & Export Log Files Purpose: The operation, alarm, exception and information of the NVR can be stored in log files, which can be viewed and exported at any time. Steps: 1. Enter the Log Search interface. Menu >...
Page 167
User Manual of All-in-One Network Video Recorder Figure 15. 3 Log Search Results Up to 2000 log files can be displayed each time. 5. You can click the button of each log or double click it to view its detailed information, as shown in Figure 15.
Page 168
User Manual of All-in-One Network Video Recorder Figure 15. 5 Export Log Files 7. Select the backup device from the dropdown list of Device Name. 8. Click the Export to export the log files to the selected backup device. You can click the New Folder button to create new folder in the backup device, or click the Format button to format the backup device before log export.
User Manual of All-in-One Network Video Recorder 15.3 Importing/Exporting IP Camera Info Purpose: The information of added IP camera can be generated into an excel file and exported to the local device for backup, including the IP address, manage port, password of admin, etc.. And the exported file can be edited on your PC, like adding or deleting the content, and copy the setting to other devices by importing the excel file to it.
User Manual of All-in-One Network Video Recorder 15.4 Importing/Exporting Configuration Files Purpose: The configuration files of the NVR can be exported to local device for backup; and the configuration files of one NVR can be imported to multiple NVR devices if they are to be configured with the same parameters. Steps: 1.
User Manual of All-in-One Network Video Recorder 15.5 Upgrading System Purpose: The firmware on your NVR can be upgraded by local backup device or remote FTP server. 15.5.1 Upgrading by Local Backup Device Steps: 1. Connect your NVR with a local backup device where the update firmware file is located. 2.
Page 172
User Manual of All-in-One Network Video Recorder directory as required. Steps: 1. Enter the Upgrade interface. Menu > Maintenance > Upgrade 2. Click the FTP tab to enter the local upgrade interface, as shown in Figure 15. 9. Figure 15. 9 FTP Upgrade Interface 3.
User Manual of All-in-One Network Video Recorder 15.6 Restoring Default Settings Steps: 1. Enter the Default interface. Menu > Maintenance > Default Figure 15. 10 Restore Defaults 2. Select the restoring type from the following three options. Restore Defaults: Restore all parameters, except the network (including IP address, subnet mask, gateway, MTU, NIC working mode, default route, server port, etc.) and user account parameters, to the factory default settings.
User Manual of All-in-One Network Video Recorder 16.1 Configuring General Settings Purpose: You can configure the BNC output standard, VGA output resolution, mouse pointer speed through the Menu > Configuration > General interface. Steps: 1. Enter the General Settings interface. Menu >...
User Manual of All-in-One Network Video Recorder 16.2 Configuring DST Settings Steps: 1. Enter the General Settings interface. Menu > Configuration > General 2. Choose DST Settings tab. Figure 16. 2 DST Settings Interface 3. You can check the checkbox before the Auto DST Adjustment item. Or you can manually check the Enable DST checkbox, and then you choose the date of the DST period.
User Manual of All-in-One Network Video Recorder 16.3 Configuring More Settings for Device Parameters Steps: 1. Enter the General Settings interface. Menu > Configuration > General 2. Click the More Settings tab to enter the More Settings interface, as shown in Figure 16. 3 Figure 16.
User Manual of All-in-One Network Video Recorder 16.4 Managing User Accounts Purpose: There is a default account in the NVR: Administrator. The Administrator user name is admin and the password is set when you start the device for the first time. The Administrator has the permission to add and delete user and configure user parameters.
Page 179
User Manual of All-in-One Network Video Recorder Address. Password: Set the password for the user account. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
User Manual of All-in-One Network Video Recorder 6. Set the operating permission of Local Configuration, Remote Configuration and Camera Configuration for the user. Local Configuration • Local Log Search: Searching and viewing logs and system information of NVR. • Local Parameters Settings: Configuring parameters, restoring factory default parameters and importing/exporting configuration files.
User Manual of All-in-One Network Video Recorder Figure 16. 8 User List 3. Click the icon to delete the selected user account. 16.4.3 Editing a User For the added user accounts, you can edit the parameters. Steps: 1. Enter the User Management interface. Menu >Configuration>User 2.
Page 182
User Manual of All-in-One Network Video Recorder STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
User Manual of All-in-One Network Video Recorder 17.1 Specifications Model DS-7600NI-E1/A IP video input 8-ch Video compression H.264/MPEG4 Video/Audio HDMI input 1-ch for HDMI video and audio input. input VGA input 1-ch for VGA video input. VGA audio input 1 MIC interface connector for VGA audio input.
User Manual of All-in-One Network Video Recorder 17.2 Glossary • Dual Stream: Dual stream is a technology used to record high resolution video locally while transmitting a lower resolution stream over the network. The two streams are generated by the DVR, with the main stream having a maximum resolution of 4CIF and the sub-stream having a maximum resolution of CIF.
User Manual of All-in-One Network Video Recorder 17.3 Troubleshooting No image displayed on the monitor after starting up normally. Possible Reasons No VGA or HDMI connections. Connection cable is damaged. Input mode of the monitor is incorrect. Steps 1. Verify the device is connected with the monitor via HDMI or VGA cable.
Page 187
User Manual of All-in-One Network Video Recorder Possible Reasons Network failure, and the NVR and IP camera lost connections. The configured parameters are incorrect when adding the IP camera. Insufficient bandwidth. Steps 1. Verify the network is connected. 1) Connect the NVR and PC with the RS-232 cable. 2) Open the Super Terminal software, and execute the ping command.
Page 188
User Manual of All-in-One Network Video Recorder Check the brand, model of the switch connecting IP camera and NVR, and contact with the manufacturer of the switch to check if it has the function of flow control. If so, please turn it down. 5.
Page 189
User Manual of All-in-One Network Video Recorder c) The performances of hardware are not good enough, including CPU, memory, etc.. Steps: 1. Verify the network between NVR and IP camera is connected. 1) When image is stuck, connect the RS-232 ports on PC and the rear panel of NVR with the RS-232 cable.
Page 190
User Manual of All-in-One Network Video Recorder c) The encoding standard is not supported with NVR. Steps: 1. Verify the cable between the pickup and IP camera is connected well; impedance matches and compatible. Log in the IP camera directly, and turn the audio on, check if the sound is normal. If not, please contact the manufacturer of the IP camera.
Page 191
User Manual of All-in-One Network Video Recorder Steps: 1. Verify the system time setting is correct. Select “Menu > Configuration > General > General”, and verify the “Device Time” is correct. 2. Verify the search condition is correct. Select “Playback”, and verify the channel and time are correct. 3.
User Manual of All-in-One Network Video Recorder 17.4 Summary of Changes Version 3.3.0 Added: 1. Support the VCA event triggered recording. (Chapter 6.5) 2. Support play back by sub-periods. (Chapter 7.2.3) 3. Add the volume adjust button on the playback interface. (Chapter 7) 4.
Page 193
User Manual of All-in-One Network Video Recorder Deleted Combine the smart search function with the smart playback function, and the smart search section is deleted. (Chapter 6.2.2 Smart Search)
User Manual of All-in-One Network Video Recorder 17.5 List of Compatible IP Cameras List of Hikvision IP Cameras For the list, our company holds right to interpret. Max. Type Model Version Sub-stream Audio Resolution √ √ DS-2CD2810F v5.2.6 build 141218 1280×...
Page 195
User Manual of All-in-One Network Video Recorder Max. Type Model Version Sub-stream Audio Resolution √ DS-2CD2110(D)-(I) v5.2.6 build 141218 1280× 960 × √ √ DS-2CD2110F(D)-I(W)(S) v5.2.6 build 141218 1280× 960 √ DS-2CD2112(D)-(I) v5.2.8 build141231 1280× 960 × √ √ DS-2CD2112F(D)-I(W)(S) v5.2.6 build 141218 1280×...
Page 196
User Manual of All-in-One Network Video Recorder Max. Type Model Version Sub-stream Audio Resolution √ DS-2CD2T20(D)-I3/I5/I8 v5.2.6 build 141218 1920× 1080 × √ √ DS-2CD4220F-I(S) v5.2.6 build 141218 1920× 1080 √ √ DS-2CD4220FWD-I(S) v5.2.6 build 141218 1920× 1080 √ √ DS-2CD4224FWD-I(Z)(S) v5.2.6 build 141218 1920×...
Page 197
User Manual of All-in-One Network Video Recorder Max. Type Model Version Sub-stream Audio Resolution √ DS-2CD2132(D)-(I) v5.2.8 build141231 2048× 1536 × √ √ DS-2CD2132F(D)-I(W)(S) v5.2.8 build141231 2048× 1536 √ DS-2CD2332(D)-I v5.2.8 build141231 2048× 1536 × √ √ DS-2CD2432F-I(W) v5.2.8 build141231 2048×...
Page 198
User Manual of All-in-One Network Video Recorder Max. Type Model Version Sub-stream Audio Resolution √ √ DS-2DM7220I Series V5.2.7 build 141112 1920× 1080 √ √ DS-2DF7276 Series V5.2.8 build 141222 1280× 720 √ √ DS-2DF5276 Series V5.2.8 build 141222 1280× 720 √...
User Manual of All-in-One Network Video Recorder List of Third-party IP Cameras ONVIF compatibility refers to the camera can be supported both when it uses the ONVIF protocol and its private protocols. Only ONVIF is supported refers to the camera can only be supported when it uses the ONVIF protocol.
Page 200
User Manual of All-in-One Network Video Recorder IP Camera Max. Manufacturer or Model Version Sub-stream Audio Resolution Protocol compatibility) √ WFB-100Ap V3.1.0.9 1280× 800 × √ VB-M400 Ver.+1.0.0 1280× 960 × Canon VB-M6000D Ver.+1.0.0 1280× 960 × × √ VB-M7000F Ver.+1.0.0 1280×...
Page 201
User Manual of All-in-One Network Video Recorder IP Camera Max. Manufacturer or Model Version Sub-stream Audio Resolution Protocol 1.8.2-20120327- √ IX30DN-ACFZHB3 × 2048× 1536 2.9080-A1.7852 √(Only ONVIF SAMSUNG √ SNB-5080P V3.10_130416 1280× 1024 is supported) (ONVIF compatibility) × × VCC-HD2300P 2.03-02(110318-00) 1920×...
Page 202
User Manual of All-in-One Network Video Recorder...
Need help?
Do you have a question about the DS-7600NI-E1/A and is the answer not in the manual?
Questions and answers
