Team C T8E Manual page 5

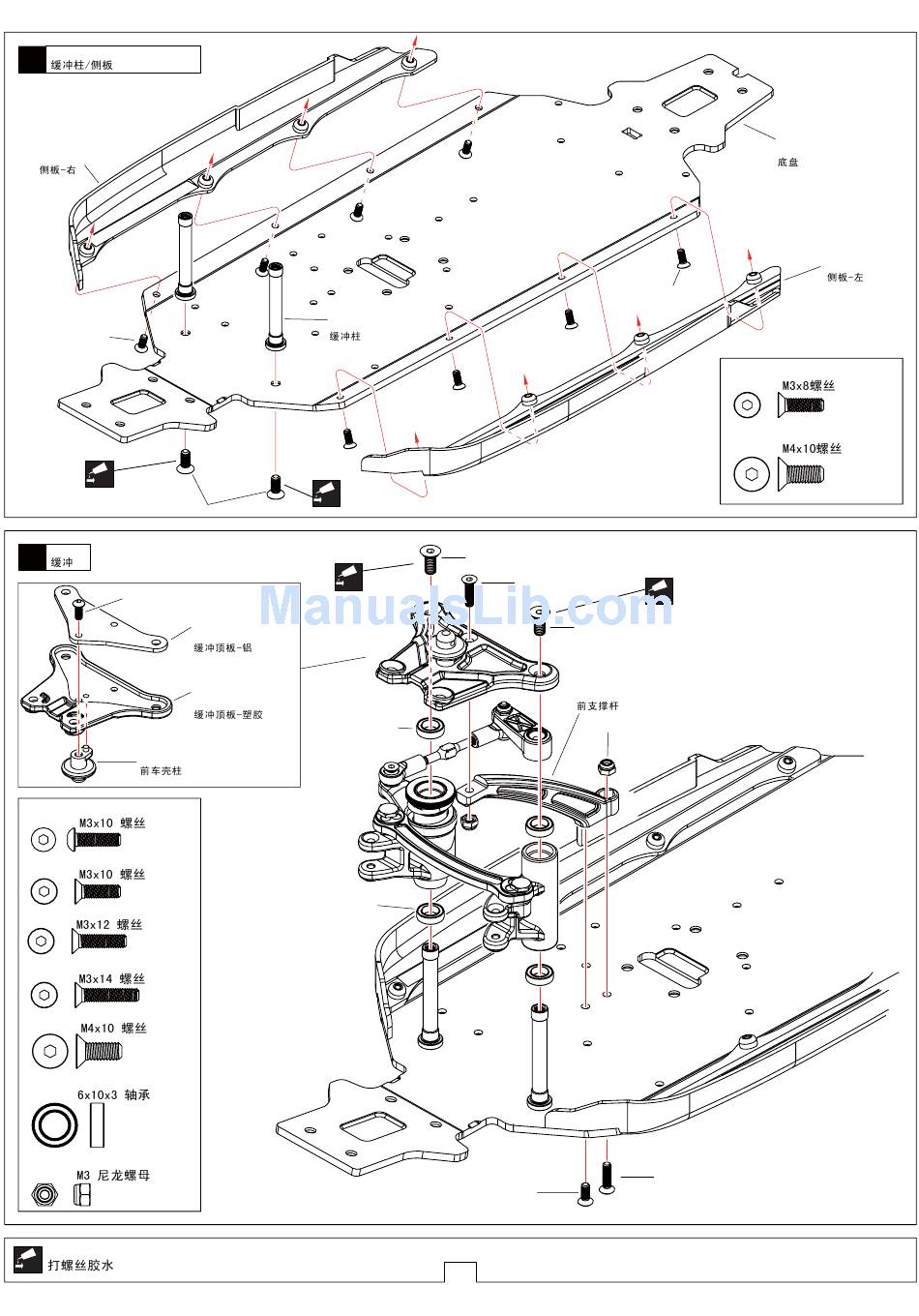

Servo Saver Post/Side Plate
3
A B
- -
Bag Bag
T08680
Side Plate-Right
T08674 M3x8
Screw
Cement
T08674 M4x10
A
-
Buffer
4 Bag
T08673 M3x10
T08612
Front Body Mount
T08673 M3x10 Screw
............1
T08674 M3x10 Screw
............1
T08674 M3x12 Screw
............1
T08674 M3x14 Screw
.........1
T08674 M4x10 Screw
............2
T08662 6x10x3 Ball Bearing
..................4
T08666 M3 Nylon Nut
.....................2
Apply threadlocker(screw cement)
Screw
Cement
T08650
Servo Saver Post
Screw
Cement
Screw
Cement
T08609
Buffer Plate-Aluminium
T08609
Buffer Plate-Plastic
T08662 6x10x3
T08662 6x10x3
T08674 M3x8
T08674 M4x10
T08674 M3x14
T08674 M4x10
T08681
Front Chassis Stiffener
T08666 M3
T08674 M3x10
2
T08683
Chassis
T08680
Side Plate-Left
T08674 M3x8 Screw
T08674 M4x10 Screw
Screw
Cement
T08674 M3x12
............8
............2
