Team C T8E Manual page 18

Rear Suspension
29 Bag
T08666 M3 Nylon Nut
...............1
T08674 M3x10 Screw
.........1
T08674 M3x12 Screw
.........1
T08674 M4x14 Screw
......4
F
-
Shock
30 Bag
T08627 2.75mm Plastic Washer
.....................4
T08627 1mm Plastic Washer
........................4
T08627 3.3x1.9 O-ring
........................8
T08625/T08626 9x1.0 O-ring
.....................4
T08624 2.7x5.8x0.5 Washer
........................4
T08624 M2.5 Nylon Nut
.....................4
T08624 6.8 Ball stud
...........................4

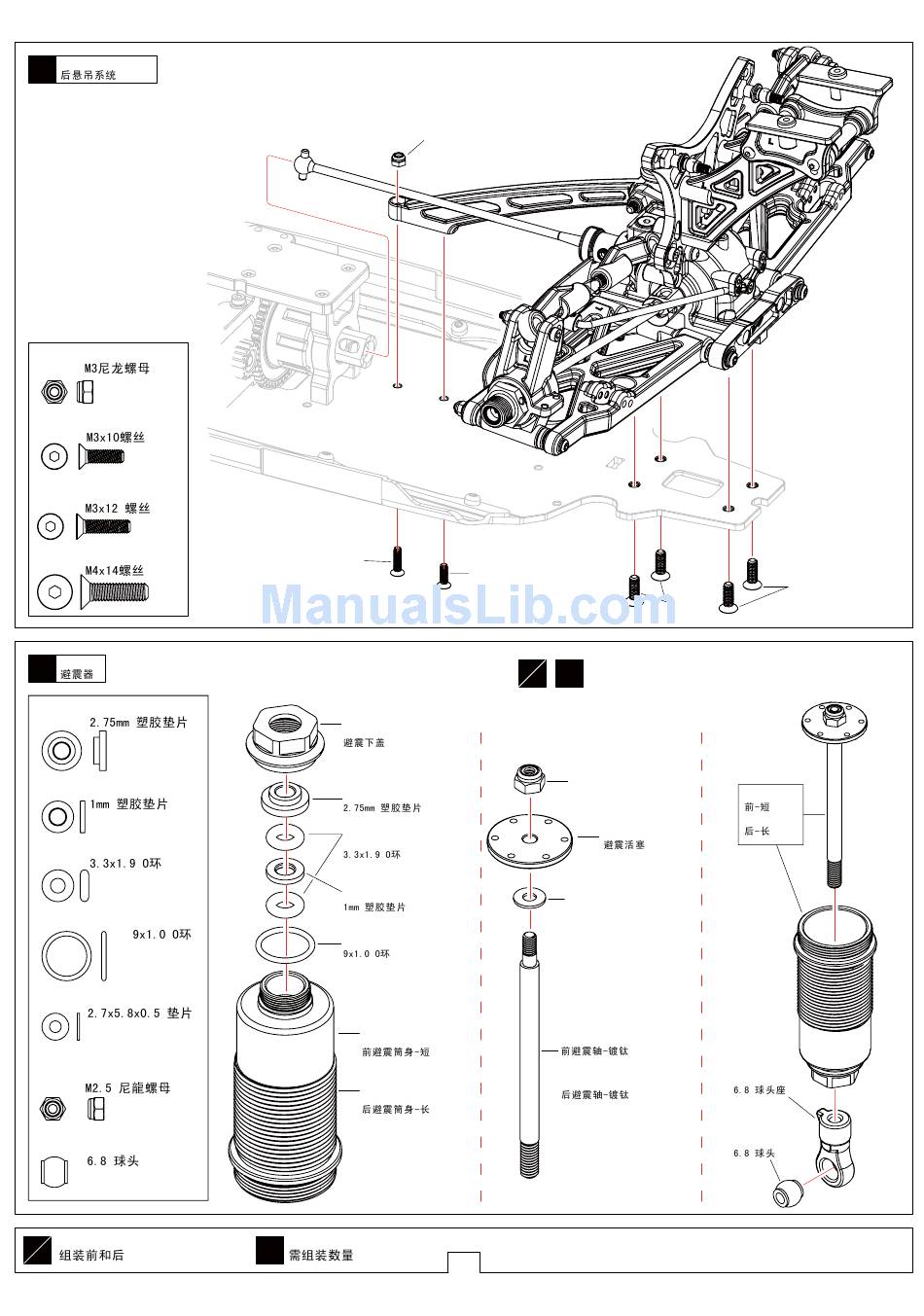

Assemble both Front and Rear
F
R
E
-
T08674 M3x12
T08625/T08626
Shock Bottom cover
T08627
2.75mm Plastic Washer
T08627
3.3x1.9 O-ring
T08627
1mm Plastic Washer
T08625/T08626
9x1.0 O-ring
T08625
Front Shock Body-Short
T08626
Rear Shock Body-Long
Assemble as many times as specified
x2
T08666 M3
T08674 M3x10
F
x2
R
T08666 M2.5
T08667 2.7x5.8x0.5
TU0880
Front Shock Shaft-Titan Coated
TU0882
Rear Shock Shaft-Titan Coated
15
T08674
M4x14
Front-Short
T08627
Rear-Long
Shock Piston
T08622
6.8 Ball End
T08624
6.8 Ball stud
T08674
M4x14
