Team C T8E Manual page 19

F
-

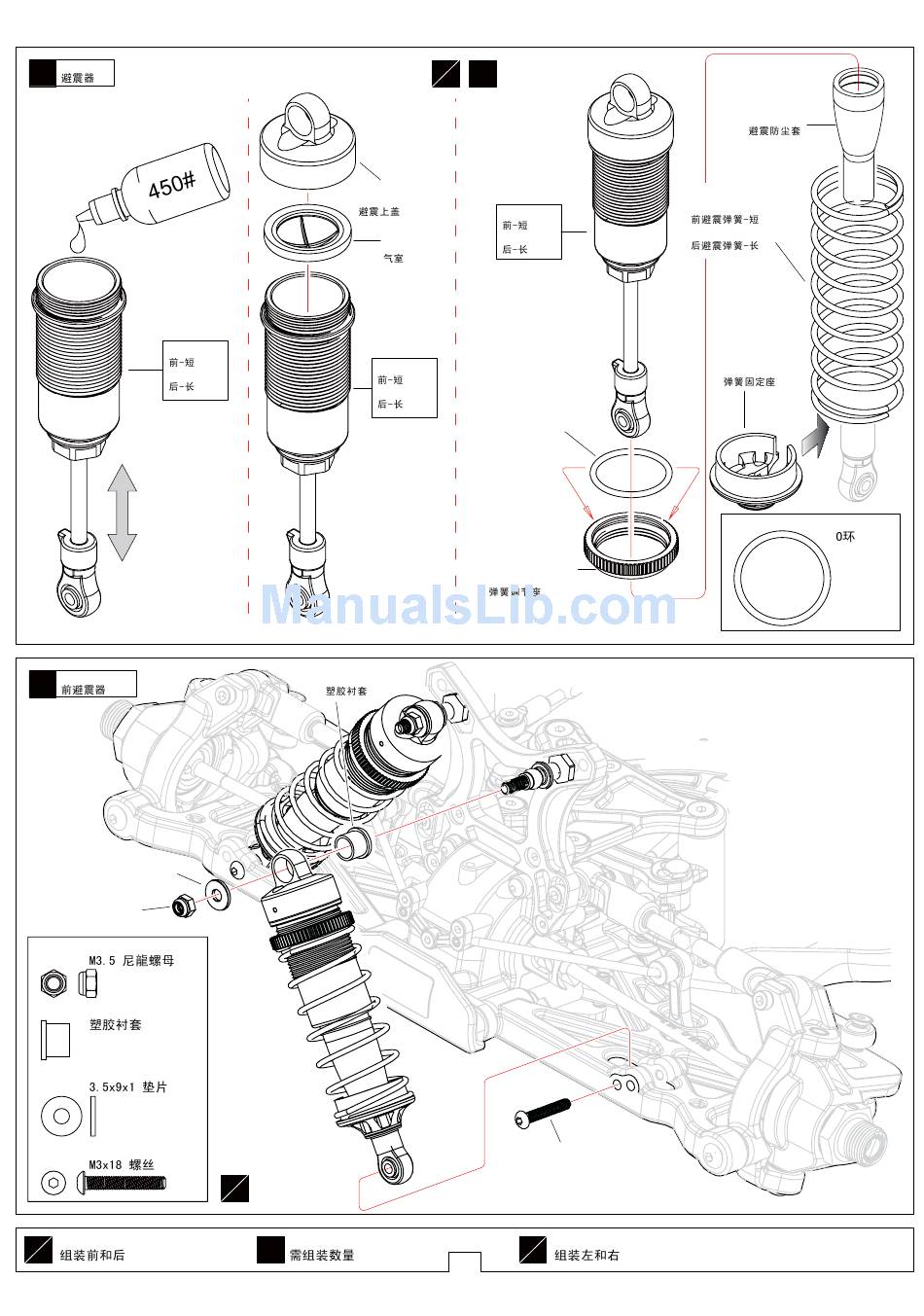

Shock
31
Bag
Front-Short
Rear-Long
Front Shock
32
F
-
Bag
T08670 3.5x9x1
T08666 M3.5
T08666 M3.5 Nylon Nut
.....................2
T08622 Plastic Bushing
...........................2
T08670 3.5x9x1 Washer
.....................2
T08673 M3x18 Screw
......2
Assemble both Front and Rear
F
R
T08625/T08626
Shock Top cover
T08622
Diaphragm
Front-Short
Rear-Long
T08622
Plastic Bushing
L
R
Assemble as many times as specified
x2
F
x2
R
Front-Short
Rear-Long
T08625/T08626
T08625/T08626
Spring Adjuster
T08673 M3x18
Assemble both Left and Right
L
R
16
T08623
Shock Boot
T08687
Front Shock Spring-Short
Rear Shock Spring-Long
T08622
Spring Mount
T08625/T08626 O-Ring
...............4
