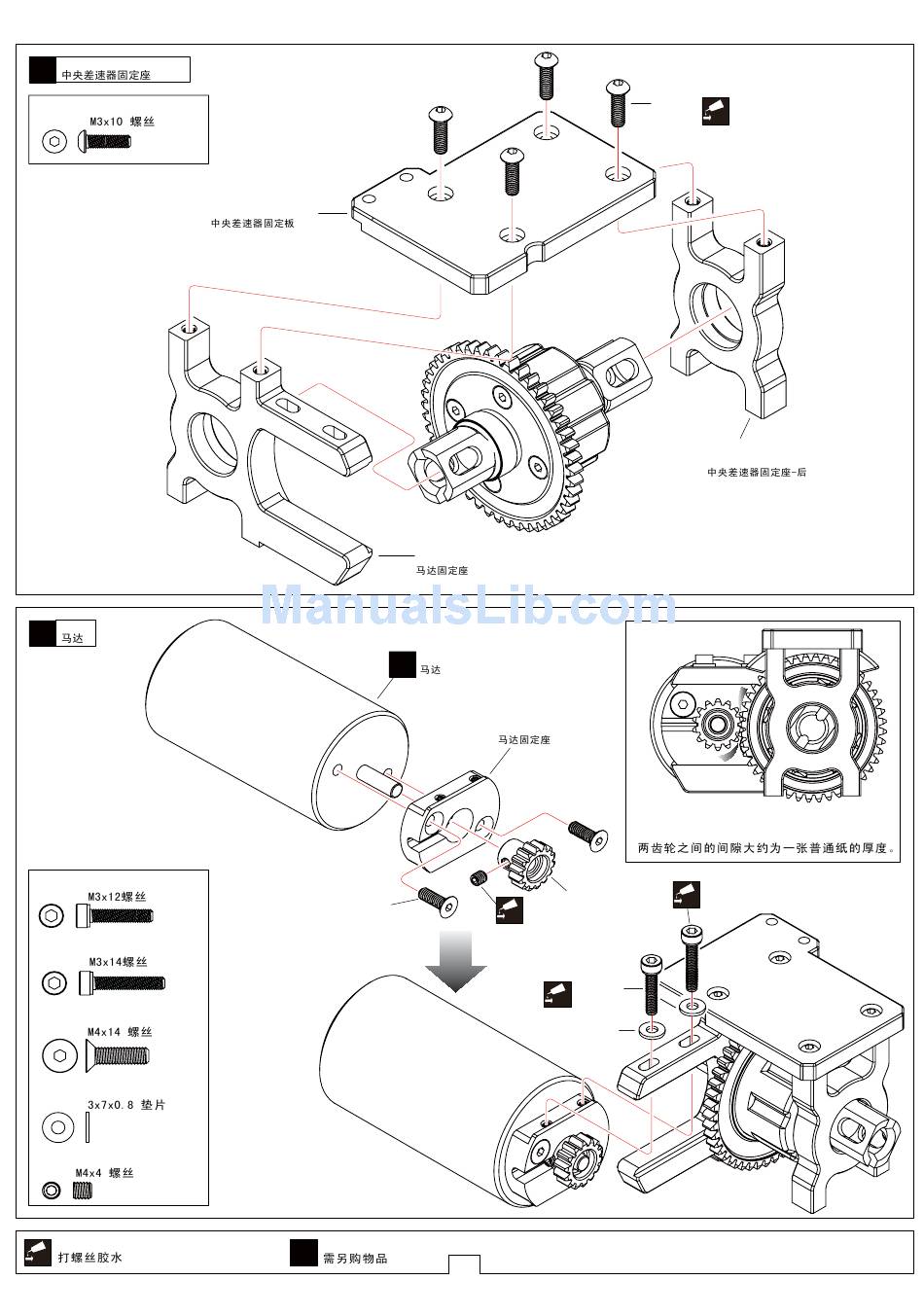

Center Differential Mount
17
Bag
T08681 M3x10 Screw
............4
Motor
18
C
-
Bag
T08686 M3x12 Screw
......1
T08686 M3x14 Screw
......1
T08686 M4x14 Screw
.........2
T08686 3x7x0.8 Washer
.....................2
H396 M4x4 Screw
.....................1
Apply threadlocker(screw cement)
Screw
Cement
C
-
T08681
Center Differential Plate
T08686 M4x14
Must be purchased separately
X
T08686
Motor Mount
Motor
X
T08686
Motor Mount
H396
H396
Screw
M4x4
Cement
Screw
Cement
T08686
3x7x0.8
9
T08673
Screw
M3x10
Cement
T08686
Center Differential Mount-Rear
Tighten the screws with one sheet of paper
inserted between both gears.
T08686
Screw
M3x14
Cement
T08686
M3x12
