Bedienungsanleitung / User manual COMPACT HX-2
3

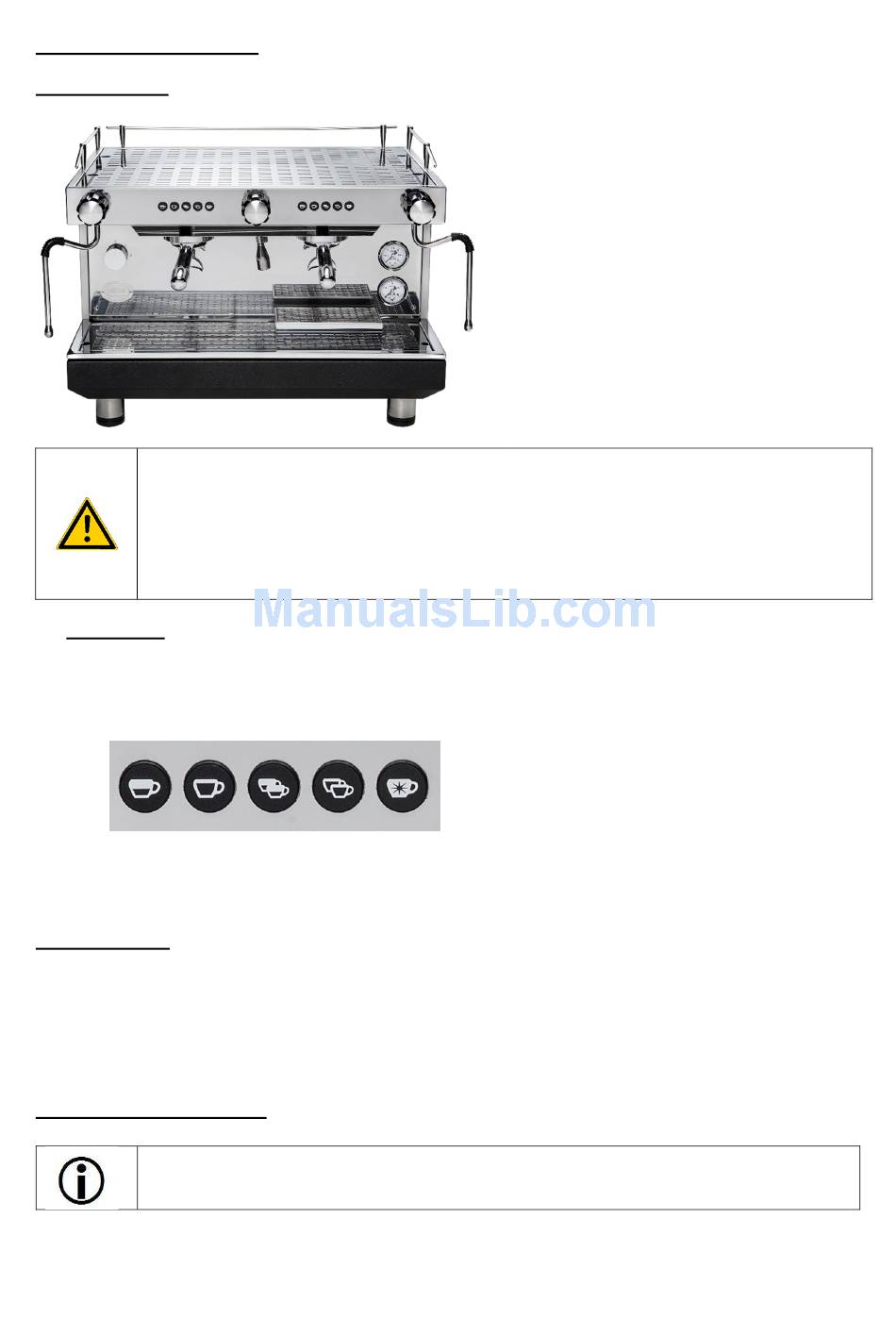

MACHINE DESCRIPTION

3.1 Machine parts

3
5
8
Caution!
Danger of injury: The following parts are hot or may become hot:
• area around the steam and hot water wands
• steam and hot water wands
• porta filter
• brew groups
• body (upper part and side frames)

3.2 Control panel

All buttons are illuminated when the machine is operational. After having pressed a button, only that respective
button will be illuminated.
1

3.3 Technical data

Compact HX-2
Voltages: 2 phases, 230 V each (different voltages available upon request)
Power:
3.000 W
Water tank: 9 L
Measurements: W x D x H / 650 mm x 510 mm x 480 mm without filterholder
4

MACHINE INSTALLATION

The installation is to be carried out exclusively by qualified specialists, according to the following
instructions and in compliance with valid laws.
The following chapters deal with the preparation of the machine, its electrical connection, water supply connection
and drainage connection.
1
3
4
7
7
6
2 3 4
1 Cup heating tray
2 Boiler / pump pressure gauge
5
3 Control panel
4 Hot water dispenser
5 Steam lever valve
2
6 Drip tray with drip-grid
7 Brew groups
8 On / Off switch 0/1/2
0= Off / 1=Pump / 2=Pump + Heater
Automatic programming of doses and quantity
of cups:
1 Single espresso
2 1 large cup
3 Double espresso
4 2 large cups
5
5 Programming button / manual
16
