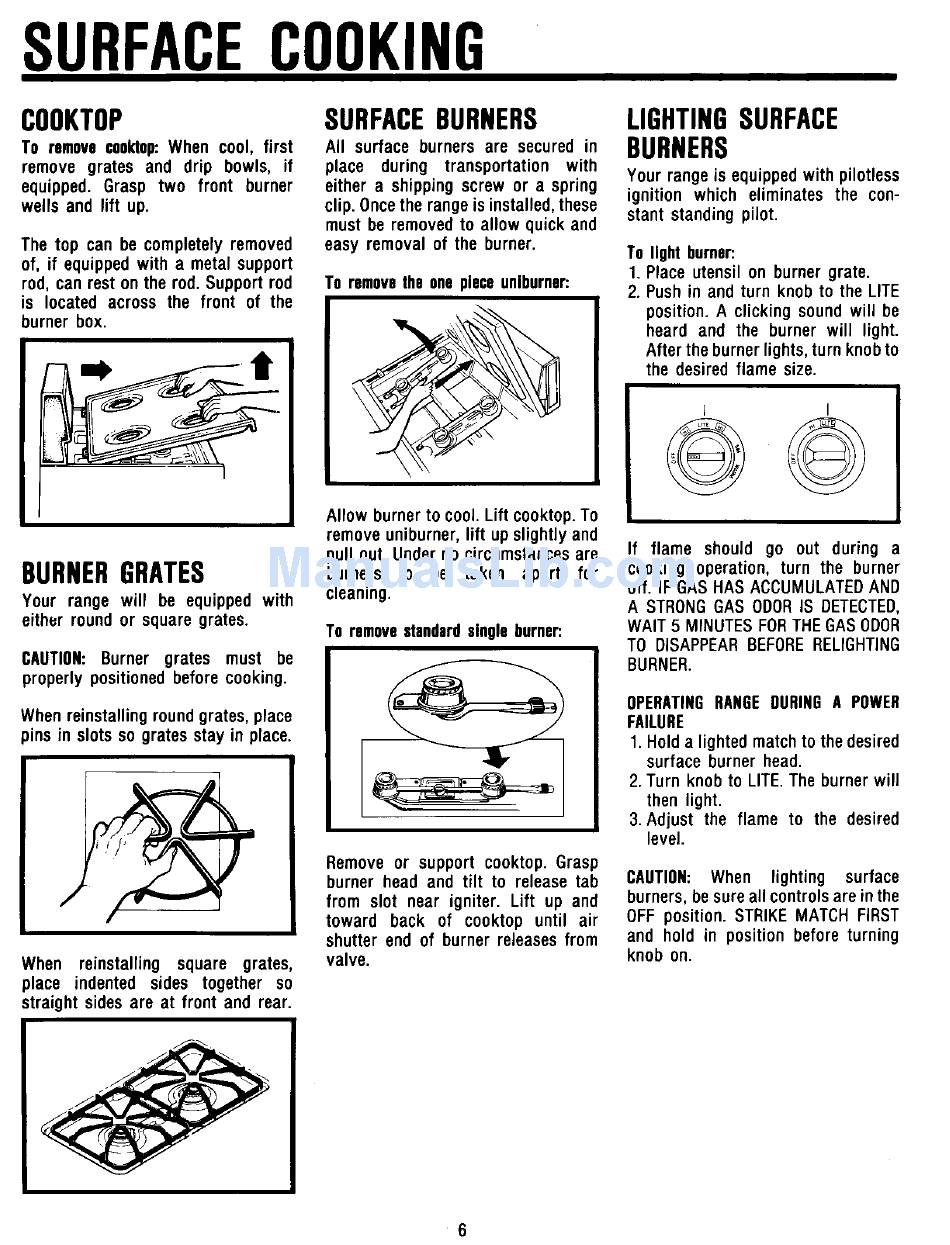

SURFACE COOKING
COOKTOP SURFACE BURNERS LIGHTING SURFACE
TOremoveceoktop: W hen cool, first All surfaceburnersare securedin
BURNERS
remove grates and drip bowls, if place during transportation with
equipped. Grasp two front burner either a shipping screw or a spring Your rangeis equippedwith pilotless
wells and lift up. clip. Oncethe rangeis installed,these ignition which eliminatesthe con-
mustbe removed to allowquickand stantstandingpilot.
The top can be completely removed easy removalof the burner. To lightburner:
of, if equipped witha metalsupport 1. Placeutensilon burnergrate.
rod,canrestonthe rod.Support r od Toremove t heonepiece unlburner: 2. Pushin and turn knobto the LITE
is locatedacrossthe front of the position. A clickingsoundwill be
burnerbox. heard and the burnerwill light.
Aftertheburner l ights, t urnknob to
the desiredflame size.
I
Allowburnerto cool.Lift cooktop. T o
remove uniburner, lift upslightly and
pullout.Undernocircumstances are If flame shouldgo out during a
BURNER GRATES burners to be taken apart for cooking operation,turn the burner
Your range will be equippedwith cleaning, off. iF GASHASACCUMULATED AND
A STRONG GASODOR IS DETECTED,
eitherroundor squaregrates. To remove s tandard s ingle burner: WAIT5 MINUTES FOR THEGASODOR
TO DISAPPEAR B EFORE RELIGHTING
CAUTION: Burner grates must be __ BURNER.
properlypositioned beforecooking. _ ,___ OPERATING RANGE DURING A POWER
Whenreinstalling r ound grates, p lace __ FAILURE
pinsin slotsso gratesstayin place. 1.Holda lightedmatch to thedesired
surfaceburnerhead.
__ 2.Turn knobto LITE. T he burnerwill
then light.
3.Adjust the flame to the desired
level.
Removeor support cooktop. Grasp
burner head and tilt to releasetab CAUTION:When lighting surface
from slot near igniter. Lift up and burners,besureall controlsare in the
toward back of cooktop until air OFFposition. STRIKEMATCHFIRST
shutter end of burner releasesfrom and hold in position beforeturning
When reinstalling square grates, valve, knob on.
place indented sides together so
straight sidesare at front and rear.
6
