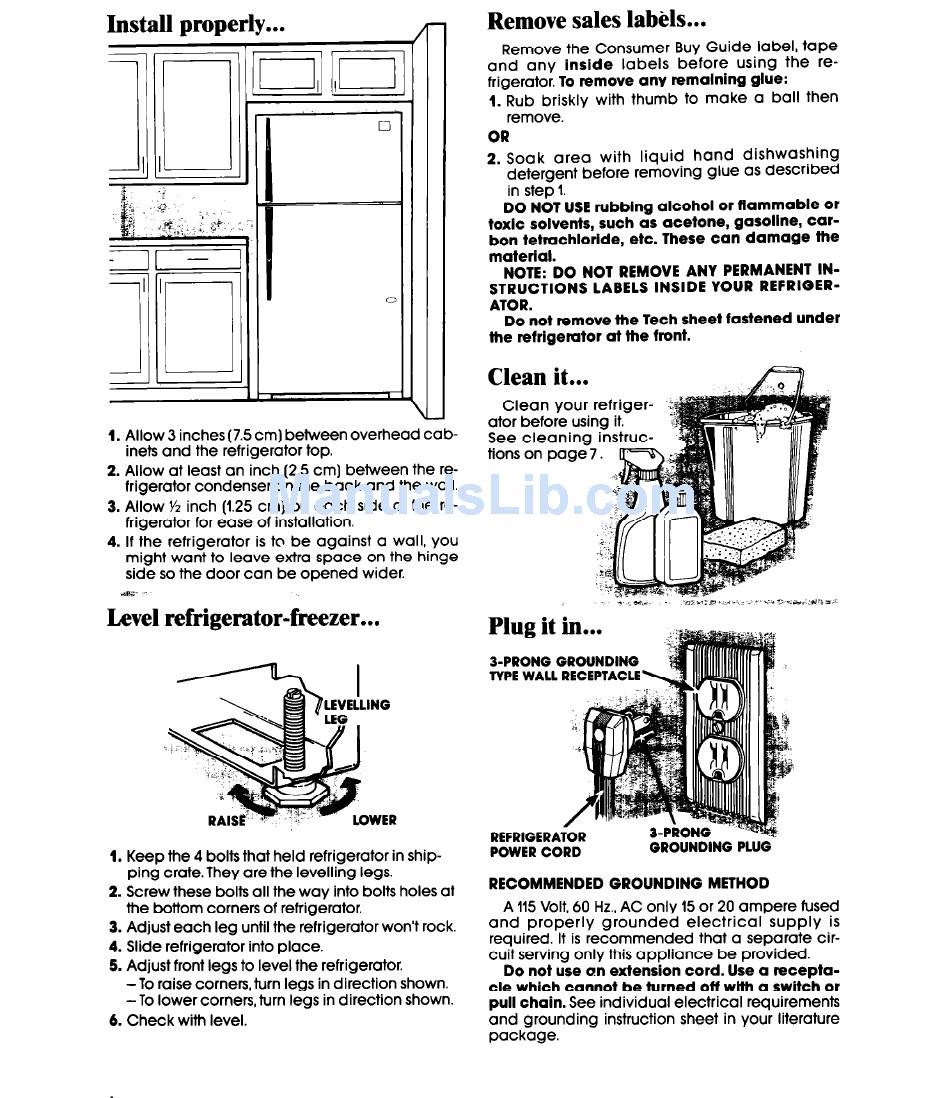

Install properly...
0
c
1. Allow 3 inches (7.5 cm) between overhead cab-
inets and the refrigerator top.
2. Allow at least an inch (2.5 cm] between the re-
frigerator condenser on the back and the wall.
3. Allow YZ inch (1.25 cm) on each side of the re-
frigerator for ease of installation.
4. If the refrigerator
is to be against a wall, you
might want to leave extra space on the hinge
side so the door can be opened wider.
&;. ,.
Level refrigerator-freezer...
1. Keep the 4 bolts that held refrigerator in ship-
ping crate. They are the levelling legs.
2. Screw these bolts all the way into bolts holes at
the bottom corners of refrigerator.
3. Adjust each leg until the refrigerator won't rock.
4. Slide refrigerator into place.
5. Adjust front legs to level the refrigerator.
-To raise corners, turn legs in direction shown.
-To lower corners, turn legs in direction shown.
6. Check with level.
Remove sales lab&Is.. .
Remove the Consumer Buy Guide label, tape
and any inside
labels
before
using the re-
frigerator. To remove any remalning
glue:
1. Rub briskly with thumb to make a ball then
remove.
OR
2. Soak area
with liquid
hand
dishwashing
detergent before removing glue as described
in step 1.
DO NOT USE rubbing alcohol
or flammable
or
toxic solvents, such as acetone,
gasollne,
car-
bon tetrachloride,
etc. These can damage
the
material.
NOTE: DO NOT REMOVE ANY PERMANENT IN-
STRUCTIONS LABELS INSIDE YOUR REFRIGER-
ATOR.
Do not remove the Tech sheet fastened
under
the refrigerator
at the front.
Clean it...
Clean your refriger-
';j
ator before using it.
:2
See cleaning
instruc-
tions on page 7.
m.G
-!
Plug it in...
TYPE WALL RECEPTACLE<
3-PRONG
GROUNDING
REFRIGERATOR
POWER CORD
3-PM
GROUNDING PLUG
RECOMMENDED GROUNDING METHOD
A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused
and properly
grounded
electrical
supply
is
required. It is recommended
that a separate cir-
cuit serving only this appliance
be provided.
Do not use an extension
cord. Use a recepta-
cle which cannot be turned off wlth a switch or
pull chain. See individual
electrical
requirements
and grounding
instruction sheet in your literature
package.
4
