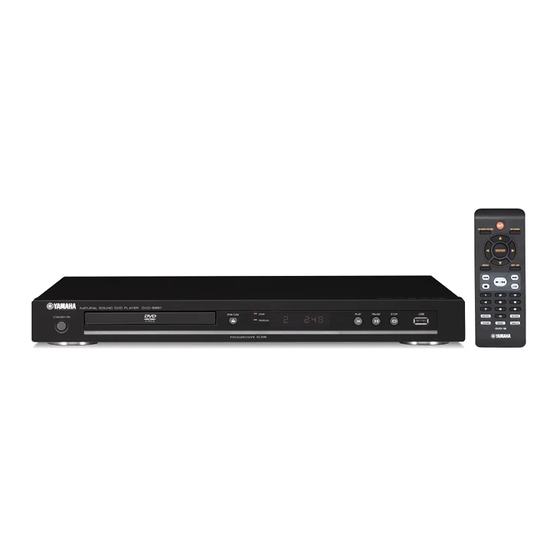

Yamaha DVD-S661 Service Manual
Hide thumbs Also See for DVD-S661:

Advertisement

This service manual is for the DVD-S661 (G model).
For the DVD-S661/DV-S6160 (U, K, A, L, P models) service manual, please refer to the following publication
number:
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.
WARNING:
IMPORTANT:
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
contact the distributor's Service Division.
WARNING:
IMPORTANT:
I CONTENTS
TO SERVICE PERSONNEL ...................................... 2-3
LOCALE MANAGEMENT INFORMATION ................... 4
FRONT PANEL .............................................................. 5
REAR PANEL ................................................................ 5
REMOTE CONTROL PANEL ........................................ 5
SPECIFICATIONS ...................................................... 6-7
INTERNAL VIEW ........................................................... 7
REPAIR NOTES ............................................................. 7
TRADE MODE ................................................................ 7
1 0 1 0 4 7
DVD-S661
For G model
DVD-S661/DV-S6160 (U, K, A, L, P models): 101050
IMPORTANT NOTICE
Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.
The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
2007
This manual is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronically without permission.

DVD PLAYER

SERVICE MANUAL
SERVICE MANUAL
SERVICE MANUAL
DISASSEMBLY PROCEDURES ................................... 8
TEST MODE ................................................................... 9
BLOCK DIAGRAM ....................................................... 10
WIRING DIAGRAM ...................................................... 11
PRINTED CIRCUIT BOARDS ................................ 12-17
SCHEMATIC DIAGRAMS ...................................... 18-24
REPLACEMENT PARTS LIST .............................. 26-27
REMOTE CONTROL .................................................... 27
SCENE CONTROL ....................................................... 28
All rights reserved.
P.O.Box 1, Hamamatsu, Japan
'07.03

Advertisement

Table of Contents
loading

Summary of Contents for Yamaha DVD-S661

  • Page 1: Table Of Contents

    This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated.
  • Page 2: To Service Personnel

    DVD-S661 I TO SERVICE PERSONNEL AC LEAKAGE TESTER OR 1. Critical Components Information WALL EQUIPMENT EQUIVALENT OUTLET UNDER TEST Components having special characteristics are marked Z and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only)
  • Page 3 DVD-S661 WARNING The use of optical instruments with this product will increase eye hazard. Repair handling should take place as much as possible with a disc loaded inside the player. Warning for power supply The primary side of the power supply carries live mains voltage when the player is connected to the mains even when the player is switched off ! This primary area is not shielded so it is possible to touch copper tracks and/or components when servicing the player.
  • Page 4: Prevention Of Electrostatic Discharge

    DVD-S661 I PREVENTION OF ELECTROSTATIC DISCHARGE The laser diode in the DVD mechanism may be damaged due to static electricity from clothes or the human body. Use caution to prevent electrostatic damage when servicing or handling the DVD-mechanism. 1. Grounding for electrostatic damage prevention Some devices, such as the DVD player, use an optical pickup (laser diode) that will be damaged by static electricity in the working environment.
  • Page 5: Front Panel

    DVD-S661 I FRONT PANEL G model I REAR PANEL G model I REMOTE CONTROL PANEL...
  • Page 6: Specifications

    DVD-S661 I SPECIFICATIONS PLAYBACK SYSTEM DVD Video, VR (Video Recording) format (DVD-RW) Supported USB devices FLASH memory DVD-R, DVD-RW, DVD-R DL (FAT16 or FAT32 format) Card reader (up to 6 slots) DVD+R, DVD+RW, DVD+R DL Portable audio player Video CD, SVCD...
  • Page 7: Internal View

    DVD-S661 I REPAIR NOTES None of the components of the following unit can be supplied separately. • DIMENSIONS Manufactured under license from Dolby Labo- Each unit must be replaced as a whole in case of a failure. ratories. “Dolby”, “Pro Logic” and the double-D •...
  • Page 8: Disassembly Procedures

    DVD-S661 I DISASSEMBLY PROCEDURES When disassembling, use the special screw driver with tip shape in figure. See REPLACEMENT PARTS LIST for item numbers. Mounting Top Cover [240] 2.7 mm Remove 5 screws [250] (2 on side and 3 on rear side).
  • Page 9: Test Mode

    DVD-S661 I TEST MODE • Starting Test Mode a. Connect the power cable to the AC power outlet. b. Press the “STANDBY/ON” key while simultaneously pressing “PAUSE” and “STOP” keys of the main unit. At this time, keep pressing “PAUSE” and “STOP” keys for 8 seconds or longer.
  • Page 10: Block Diagram

    DVD-S661 I BLOCK DIAGRAM MONO • See page 18-20 → SCHEMATIC DIAGRAM • See page 21, 22 → SCHEMATIC DIAGRAM DIGITAL OUT COAXIAL 7301 HDMI 7111,7112 T2A1039HL 1103 1 7113,7114 +5VL 7105,7106 AV (SCART) 8,16 0/6/12,FBOUT 7108 179,181 +5STBY 7,11,15...
  • Page 11: Wiring Diagram

    DVD-S661 I WIRING DIAGRAM 30FE-BT-VK-N 30FE-BT-VK-N 1100 1201 MCLK MCLK BCLK BCLK LRCLK LRCLK AC IN PCM_DATA0 PCM_DATA0 B4B-EH-A WH04D-1 PCM_DATA1 PCM_DATA1 1105 1522 PCM_DATA2 PCM_DATA2 SPDIF SPDIF CVBS CVBS 8100 1001 FFC 30P/060/30P AD B_Cb_Pb B_Cb_Pb FRONT (3) P.C.B.
  • Page 12: Printed Circuit Boards

    DVD-S661 The first digit of a component indicates the component type. I PRINTED CIRCUIT BOARDS 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET FOR INFORMATION ONLY (NO SERVICE PARTS WILL BE AVAILABLE) 2xxx : Capacitor...
  • Page 13 DVD-S661 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper MONO...
  • Page 14 DVD-S661 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper (Top view)
  • Page 15 DVD-S661 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper (Bottom view)
  • Page 16 DVD-S661 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper FRONT (1)
  • Page 17 DVD-S661 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper FRONT (2)
  • Page 18: Schematic Diagrams

    DVD-S661 The first digit of a component indicates the component type. I SCHEMATIC DIAGRAMS 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET FOR INFORMATION ONLY (NO SERVICE PARTS WILL BE AVAILABLE) 2xxx : Capacitor...
  • Page 19 DVD-S661 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper MONO 2/3...
  • Page 20 DVD-S661 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper MONO 3/3...
  • Page 21 DVD-S661 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper AV 1/2...
  • Page 22 DVD-S661 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper AV 2/2...
  • Page 23 DVD-S661 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper FRONT 1/2...
  • Page 24 DVD-S661 The first digit of a component indicates the component type. 1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET 2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper FRONT 2/2...
  • Page 25 DVD-S661 MEMO MEMO MEMO MEMO...
  • Page 26: Replacement Parts List

    DVD-S661 I REPLACEMENT PARTS LIST When disassembling, use the special screw driver with such tip shape as shown in figure. 2.7 mm 250 251 3 x 6 S-Tight with the brim 3 x 6 S-Tight Black 3 x 8 P-Tight Black...
  • Page 27: Remote Control

    DVD-S661 WARNING I REMOTE CONTROL Components having special characteristics are marked Z and must be DVD-16 replaced with parts having specifications equal to those originally in- stalled. • PANEL • KEY NO. LAYOUT • KEY CODE Ref. No. Part No.
  • Page 28: Scene Control

    DVD-S661 I SCENE CONTROL • Example of connection RECEIVER/AMPLIFIER DVD/CD PLAYER (Model with SCENE function) (Model with SCENE control signal reception function) REMOTE CONTROL REMOTE CONTROL Monaural analog mini cable • SCENE control Press "STANDBY/ON" / Power relay ON Canceling MUTE function after power ON initialization...
