Models Included:
■ CLC
■ CLCA
CAUTION: Equip-
ment must be
installed to comply
with applicable federal, state,
or local plumbing/electrical
codes having jurisdiction.
CAUTION: Use this
setup procedure
before attempting
to use this appliance. Failure
to follow the instructions can
result in injury or the voiding
of the warranty.
CAUTION: DO NOT
connect this unit to
hot water. Inlet valve
not rated for hot water.
ISO 9001:2008 REGISTERED
WILBUR CURTIS COMPANY
Montebello, CA 90640
For the latest information
go to www.wilburcurtis.com

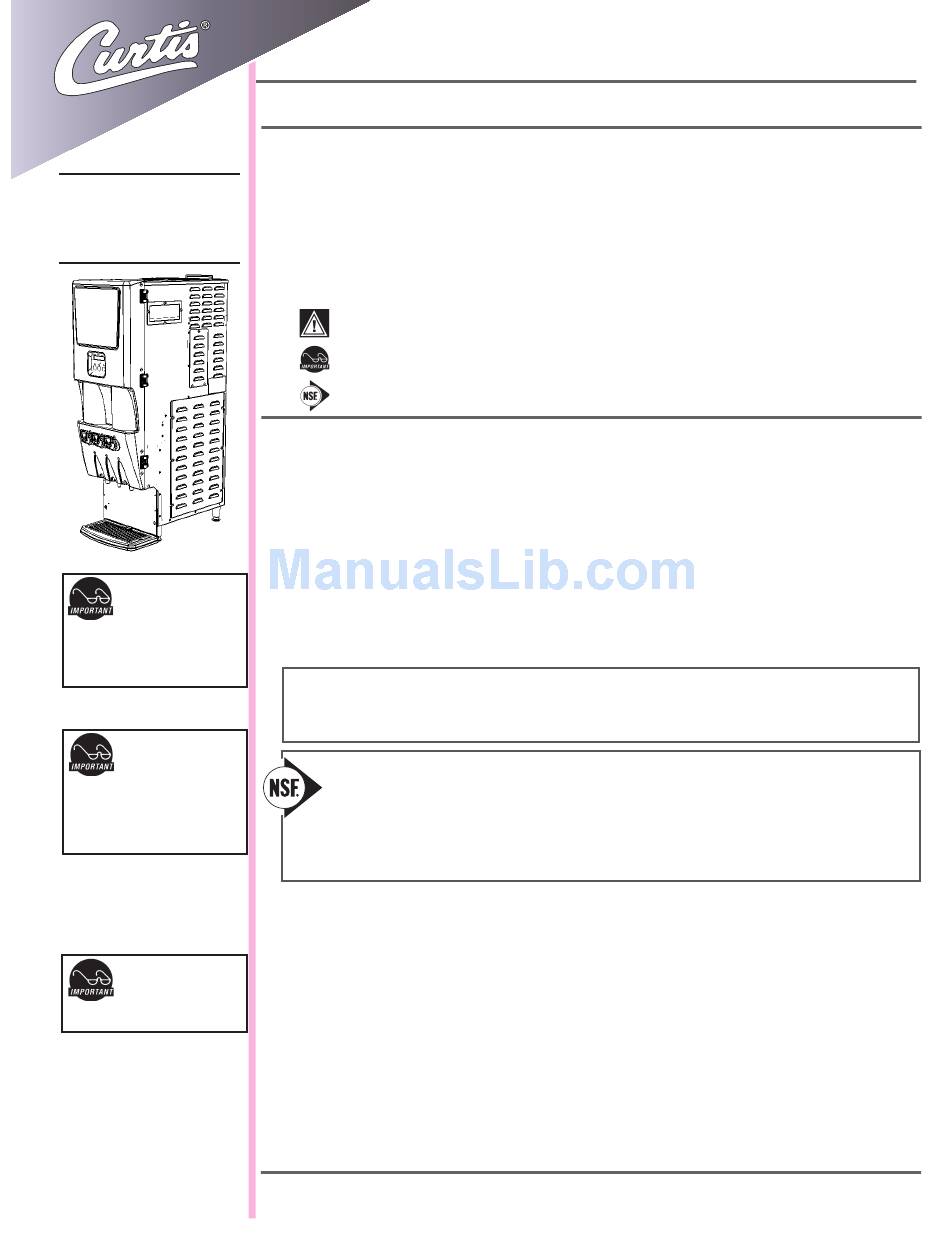

Service Manual, Liquid Coffee Machine
Important Safeguards/Symbols
This appliance is designed for commercial use. Any servicing other than cleaning and maintenance
should be performed by an authorized Wilbur Curtis Company service technician.
• Do NOT immerse the unit in water or any other liquid
• To reduce the risk of fire or electric shock, do NOT open service panels. There are no user
serviceable parts inside.
• Keep hands and other items away from hot parts of unit during operation.
• Never clean with scouring powders or harsh chemicals.
Symbols
WARNINGS – To help avoid personal injury
Important Notes/Cautions – from the factory
Sanitation Requirements
Installation
The Curtis Liquid Coffee (CLC) machine is factory pre-set and ready to go, right from the box. The
following are factory settings for the CLC:
• Tank Temperature = 190°F
• Dispensing Mode: Manual Dispense
Generally there will never be a reason to change your CLC programming
System Requirements:
• Water Source 20 – 90 PSI (Minimum Flow Rate of 1 GPM)
• Electrical: Wired at the Factory for 120VAC operation (see attached schematic)
Setup Steps
NOTE: A water filtration system must be used to maintain a trouble-free operation. (In areas
with extremely hard water, we suggest that a sedimentary and taste & odor filter be installed.)
This will prolong the life of your dispensing system and enhance the quality of the coffee
product.
NSF International requires the following water connection:
1. A quick disconnect or additional coiled tubing (at least 2x the depth of the unit) so that
the machine can be moved for cleaning underneath the unit.
2. This equipment is to be installed with adequate back flow protection to comply with ap-
plicable federal, state and local codes..
3. Water pipe connections and fixtures directly connected to a potable water supply shall
be sized, installed and maintained in accordance with federal, state, and local codes.
1. The unit should be level (left to right and slightly tilted back), located on a solid counter top.
Connect a water line from the water filter to the brewer.
2. Connect a water line from your facility to the 3/8" flare water inlet fitting of the valve, behind the
machine. Water volume going to the machine should be consistent. Use tubing sized sufficiently
to provide a minimum flow rate of one gallon per minute.
3. Plug the power cord into an electrical outlet rated at 20A.
4. Switch the toggle switch on (behind the unit) that runs power to the components in the machine.
The UCM display window will activate and the heating tank will start to fill.
5. Water in the heating tank will require approximately one hour to reach operating temperature
(factory setting of 190°F). When the unit reaches operating temperature, the UCM display win-
dow will read "READY TO DISPENSE".
FOR THE LATEST SPECIFICATIONS AND INFORMATION GO TO WWW.WILBURCURTIS.COM
W
C
C
ilbur
urtis
ompany
, i
.
nC
1

Advertisement

Table of Contents
loading

Summary of Contents for Curtis CLC

  • Page 1 WARNINGS – To help avoid personal injury Important Notes/Cautions – from the factory Sanitation Requirements Installation The Curtis Liquid Coffee (CLC) machine is factory pre-set and ready to go, right from the box. The following are factory settings for the CLC: • Tank Temperature = 190°F • Dispensing Mode: Manual Dispense...
  • Page 2 BIB product without spills or leaks. THE QCD CONNECTOR MAY BE A SNAP-IN TYPE (HOOKING ONTO SPOUT RIM) OR IT MAY BE A 3. Reach inside the CLC machine and pull out one of the two THREAD-ON QCD. tubes with a QCD at the end.
  • Page 3 IMPORTANT – Avoid sharp bends or kinks in the tubing as it enters and exits the pump. Allow a sufficient length of tubing to provide gradual bends when routing. When replacing product delivery tubes, use only genuine Curtis parts. Determine correct size before ordering. Delivery tubes come in two sizes, 3.2 mm and 4.8 mm (4.8 mm being the most common size).
  • Page 4 Cleaning the CLC Machine CAUTION - Do not use harsh cleaners, liquid bleach, powders or any other substance containing chlorine. THE USE OF THESE PRODUCTS WILL VOID YOUR WARRANTY. I. DAILY OR MORE OFTEN IF NEEDED Refer to the daily cleaning instructions on the inside of the front door. A. Make sure power is ON. B. To catch the rinse water, place a container on the drip screen, below the dispens- ing spout.
  • Page 5 3 gallon BIB that connects directly to your BIB system for line sanitizing. A. Remove the quick disconnect from the coffee concentrate bag. B. Place the BIB sanitizer container next to the CLC unit. Pull the spout from the sanitizer box through the marked area. Re- move the travel cap from spout.
  • Page 6 24 hours. Filling a Decanter 1. Select a coffee product. Curtis Ready to Dispens 2. Center the decanter on the drip screen below selected spout. 3. On the control panel, press the correspond- ing decanter button to start dispensing.
  • Page 7: Programming Mode

    Scroll through menu using ◄ or ► control button. Select menu items with the Stop/Wash button. This button serves as a select or enter control while you are programming the CLC unit. IMPORTANT: Your CLC is pre-programmed and should not require reprogramming. Adjustments should only be performed by qualified personnel. Program Menus...
  • Page 8 Illustrated Parts – CLC...
  • Page 9 Illustrated Parts – Detail Bubbles...
  • Page 10: Illustrated Parts List

    VALVE, DISPENSE 120V 14W WC-58198 COVER, ALCOVE WC-54308DV TANK, ASSY LIQUID COFFEE DV 6KW 240V WC-37408* KIT, DRIP TRAY & SCREEN CLC WC-1438-101* SENSOR, TANK TEMPERATURE WC-3512 LEG, 2½ – 3¼ ADJ 3/8-16 THRD WC- 522 * THERMOSTAT, HI LIMIT DPST 277V 40A...
  • Page 12: Error Message

    Error Message A Service Call phone number is displayed whenever there is a malfunction. This number will be displayed during a Heating system SENSOR ERROR or a WATER ERROR. ERROR MESSAGE DESCRIPTION CAUSE (800) 995-0417 Water Level Fill run error / Overflow The fill solenoid has either run for more than 10 minutes Error on the initial tank fill or 1.5 minutes in normal operation...
  • Page 13 This Page Intentionally Left Blank...
  • Page 14 Product Warranty Information The Wilbur Curtis Company certifies that its products are free from defects in material and workmanship under normal use. The following limited warranties and conditions apply: 3 Years, Parts and Labor, from Original Date of Purchase on digital control boards.
