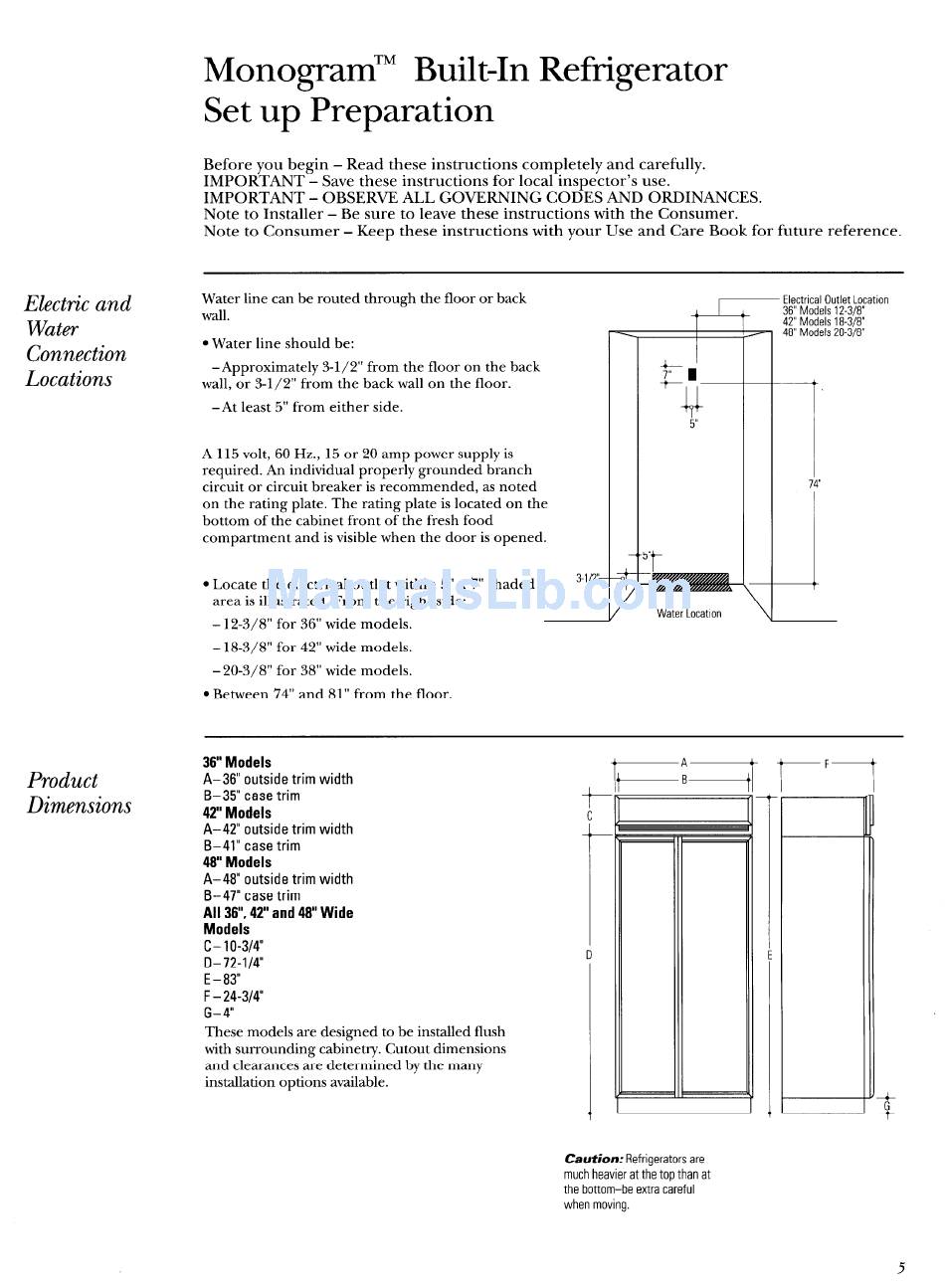

Monogram'"
Built-In Refrigerator
Set up Preparation
Before
you begin – Read these instructions
completely
and carefully.
IMPORTANT
– Save these instructions
for local inspector's
use.
IMPORTANT
– OBSERVE ALL GOVERNING
CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions
with the Consumer.
Note to Consumer
– Keep these instructions
with your Use and Care Book for future reference.
Electric and
Water
Connection
Locations
Water line can be routed through the floor or back
wall.
Water line should
be:
–Approximately
3-1/2"
from the floor on the back
wall, or 3-1/2"
from the back wall on the floor.
–At least 5" from either side.
A 115 volt, 60 Hz., 15 or 20 amp power supply is
required.
An individual
properly
grounded
branch
circuit or circuit breaker is recommended,
as noted
on the rating plate. The rating plate is located
on the
bottom
of the cabinet front of the fresh food
compartment
and is visible when the door is opened.
Locate
the electrical
outlet within 5" x 7" shaded
3-l/2'–
area is illustrated.
From the right side:
– 12-3/8"
for 36" wide models.
– 18-3/8"
for 42" wide models.
– 20-3/8"
for 38" wide models.
Between
7'4" and 81" from the floor.
Product
Dimensions
Electrical Outlet Location
36" Models 12-3/8"
42" Models 18-3/8"
48" Models 20-3/8"
/
Water Locat Ion
7
\
—
36" Models
A-36"
outside
trim width
B–35"
case trim
42" Models
t
c
A-42"
outside
trim width
B–41"
case trim
48
Models
A–48" outside
trim width
B–47"
case trim
All 36",42" and 48 Wide
Models
c-
10-3/4"
t
.
D-72-l/4
u
E -83"
F - 24-3/4
G- 4"
These models are designed
to be installed flush
with surrounding
cabinetry. Cutout dimensions
and clearances
a;e determined
by the many
installation options available.
A
B
I
1
—
—
r
F—
Caution:
Refrigerators are
much heavier at the top than at
the bottom–be extra careful
when moving.
5
