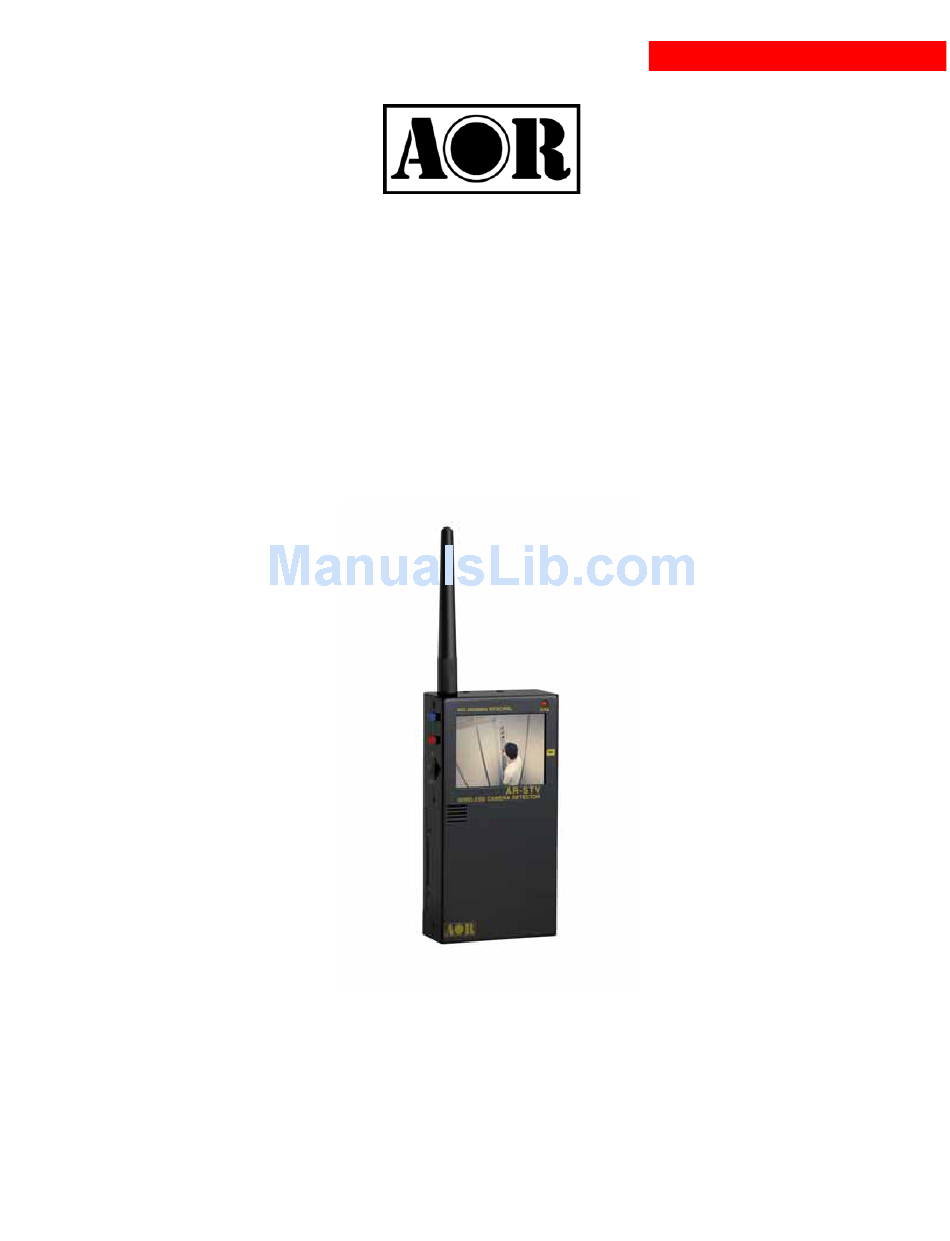

  • Page 1 American Communication Systems Discover the Power of Communications ™ http://www.ameradio.com TO ORDER – VISIT ® AR-STV WIRELESS CAMERA DETECTOR INSTRUCTION MANUAL AOR, LTD.
  • Page 2: Table Of Contents

    Control and functions ------------------------------------------------------------------------------ 3 Front panel controls ---------------------------------------------------------------------------- 3 Rear Panel --------------------------------------------------------------------------------------- 6 Connections -------------------------------------------------------------------------------------------- 6 Power Switch ------------------------------------------------------------------------------------------- 6 Operations of the AR-STV -------------------------------------------------------------------------- 6 Display --------------------------------------------------------------------------------------------- 6 Operation mode --------------------------------------------------------------------------------- 7 5-2-1 Search mode ----------------------------------------------------------------------------------7 5-2-2 Memory mode -------------------------------------------------------------------------------- 10...
  • Page 3: Index

    Level of risk As the AR-STV operates with a 6 V DC power source, there is little chance of serious injury as long as common sense is applied. Observe the polarity of connections if using an external battery charger . DC input is a nominal 6V DC, with the connector wired center conductor positive.
  • Page 4: Supplied Accessories

    2-1 Front panel The front panel of the AR-STV is dominated by the large color LCD. On the top right corner of the AR-STV, there is a red LED marked as “STA” (Status). The LED blinks while in the search mode.
  • Page 5 Right View Right Side of the AR-STV Power ON/OFF switch Slide the power switch upward to switch on the AR-STV. To switch off the AR-STV, slide the switch downward. CONT (USB connector) Using a USB cable (not supplied), connect between the CONT (Control) connector and a PC to download images.
  • Page 6 (Relay specifications: 50 V DC, 150 mA max. ) Sleeve --- Ground Left Side of the AR-STV MODE (Mode selector) switch Press this switch to select the operation mode. 8 REC (Record) switch Press this switch to store image onto memory.
  • Page 7: Rear Panel

    If not fully charged, connect an external battery charge into the DC 6V connector. 4. Power switch To switch on the AR-STV, slide the power switch on the right side of the AR-STV upward. Start-up After inserting the batteries, switch on the power switch. The LCD displays search screen and a STA (Status) LED will blink indicating the AR-STV is in the search mode.
  • Page 8: Operation Mode

    This section explains what you can expect to see on the AR-STV LCD monitor screen. Once the AR-STV is properly powered up, the display will appear on the screen. 1G 2G 3G (Hz) The horizontal axis displays the receive frequency. The AR-STV can receive between 900 MHz ~ 2800 MHz.
  • Page 9 This is a default operation mode of the AR-STV. On this mode, the AR-STV will search frequencies between 900 MHz ~ 2.8 GHz (2800 MHz) continuously until signal is detected. Once the AR-STV detects the signal, then it will automatically switch the screen to display the received video signal.
  • Page 10 2. The following search bank setting screen will appear. Search: Search bank number 0 ~ 9 To change the search bank, press the MODE key. Start: Select the start frequency. (Frequency range: 900 ~ 2800 MHz) On above example, 09 is highlighted in reverse color and 900 MHz has been set as the start frequency.
  • Page 11: Memory Mode

    Suggested level: 60 (for normal search) 20 (for weak signal) If the parameter is set to 0, then the AR-STV searches with the noise level setting. 3. To exit from this setting screen, press and hold the MODE key for 3 seconds.
  • Page 12: Setting Mode

    Duration of pause time. (Parameter: 1 ~ 50 (second), STOP) Set the view time before resuming search after detecting video signal. If set to STOP, the AR-STV stops searching once video signal is detected. Video Polar(ity): Reverse video polarity (ON/OFF)
  • Page 13 To change each parameter, press the FREQ. switch upward or downward to move the cursor to the desired position. Press the FREQ. switch inward to change the color of the selected parameter in reverse polarity with green color. Press the FREQ. switch upward or downward to change the parameter. To confirm entry, press the FREQ.
  • Page 14: Pc Interface

    OFF: The relay operation is disabled. 5-3 PC interface The AR-STV provides a USB interface for a PC. The memory contents on the SD memory card can be transferred to a PC through a USB interface. The stored image has following data format: Folder’s name: \DCIM\100ARSTV...
  • Page 15: Limited Warranty

    AOR USA, Inc. (AOR) warrants its products as described below: AOR will repair or exchange equipment as a result of defects in parts or workmanship for a period of one year from the date of original retail purchase from an authorized AOR dealer.
  • Page 16 AOR at (310) 787-8615 during normal business hours (9 am ~ 5 pm Pacific Time Zone), or write to AOR USA, INC., 20655 S. Western Ave., Suite 112, Torrance, CA 90501. You may also send a fax to AOR at (310) 787-8619. Additional information is available at the AOR web site: www.aorusa.com/support.html...
