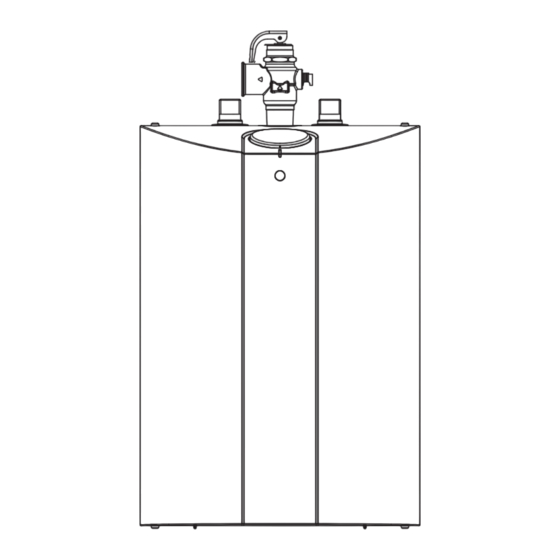

- Page 1 OPERATION AND INSTALLATION Sealed unvented (pressurised) small water heater » SHC 10 AU » SHC 15 AU...
-
Page 2: Special Information
14.1 Dimensions and connections ���������������������������������� 9 14.2 Wiring diagram �������������������������������������������������� 9 deposits. 14.3 Heat-up diagram ������������������������������������������������� 9 14.4 Country-specific approvals and certifications �������������� 9 | SHC 10 AU | SHC 15 AU www.stiebel-eltron.com... -
Page 3: General Information
Failure to observe this information will result in serious injury or death. WARNING Failure to observe this information may result in serious injury or death. CAUTION Failure to observe this information may result in non-seri- ous or minor injury. www.stiebel-eltron.com SHC 10 AU | SHC 15 AU |... -
Page 4: Appliance Description
The appliance is under mains water pressure. The water volume increases as the cylinder is being heated up. Dur- ing this process, expansion water drips through the safety valve. This is a necessary and normal process. | SHC 10 AU | SHC 15 AU www.stiebel-eltron.com... -
Page 5: Installation
The protective anode protects the inner cylinder against corrosion. Standard delivery The following are delivered with the appliance: - Wall mounting bracket - Safety valve G 1/2 - Reducer from R 3/4 male to G 1/2 female www.stiebel-eltron.com SHC 10 AU | SHC 15 AU |... -
Page 6: Appliance Installation
Observe the type plate. SHC 10 AU SHC 15 AU Connection to a freely accessible standard socket with matching plug Permanent connection to an appliance junction box with earth conductor | SHC 10 AU | SHC 15 AU www.stiebel-eltron.com... - Page 7 Check the function of the safety valve regularly. Draining the appliance"). 13.2 Draining the appliance WARNING Burns Hot water may escape during the draining process. f Drain the appliance via its connectors. www.stiebel-eltron.com SHC 10 AU | SHC 15 AU |...
-
Page 8: Maintenance
Remove the flanged immersion heater. f Remove the protective anode. f Carefully tap the heating element to remove coarse limescale deposits. f Immerse the heating element up to the flange plate in desca- ling agent. | SHC 10 AU | SHC 15 AU www.stiebel-eltron.com... -
Page 9: Specification
G 1/2 A G 1/2 A In the case of faults, a peak temperature of up to 99 °C may briefly Wall mounting Height occur in the system. bracket Horizontal hole spacing www.stiebel-eltron.com SHC 10 AU | SHC 15 AU |... - Page 10 Type of installation Undersink Undersink Type Pressurised Pressurised Internal cylinder material Steel, enamelled Steel, enamelled Thermal insulation material Polystyrene Polystyrene Casing material Plastic Plastic Colour White White Dimensions Depth Height Width Weights Weight | SHC 10 AU | SHC 15 AU www.stiebel-eltron.com...
-
Page 11: Guarantee | Environment And Recycling
Who gives the warranty apply to appliances acquired outside of Germany. In countries The warranty is given by Stiebel Eltron (Aust) Pty Ltd where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only grant- (A.B.N. - Page 12 The Stiebel Eltron warranty for the unit is in addition to any pool; rights and remedies you may have under the Australian Consumer Law.
- Page 13 NOTES www.stiebel-eltron.com SHC 10 AU | SHC 15 AU |...
- Page 14 NOTES | SHC 10 AU | SHC 15 AU www.stiebel-eltron.com...
- Page 15 NOTES www.stiebel-eltron.com SHC 10 AU | SHC 15 AU |...
- Page 16 Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.
