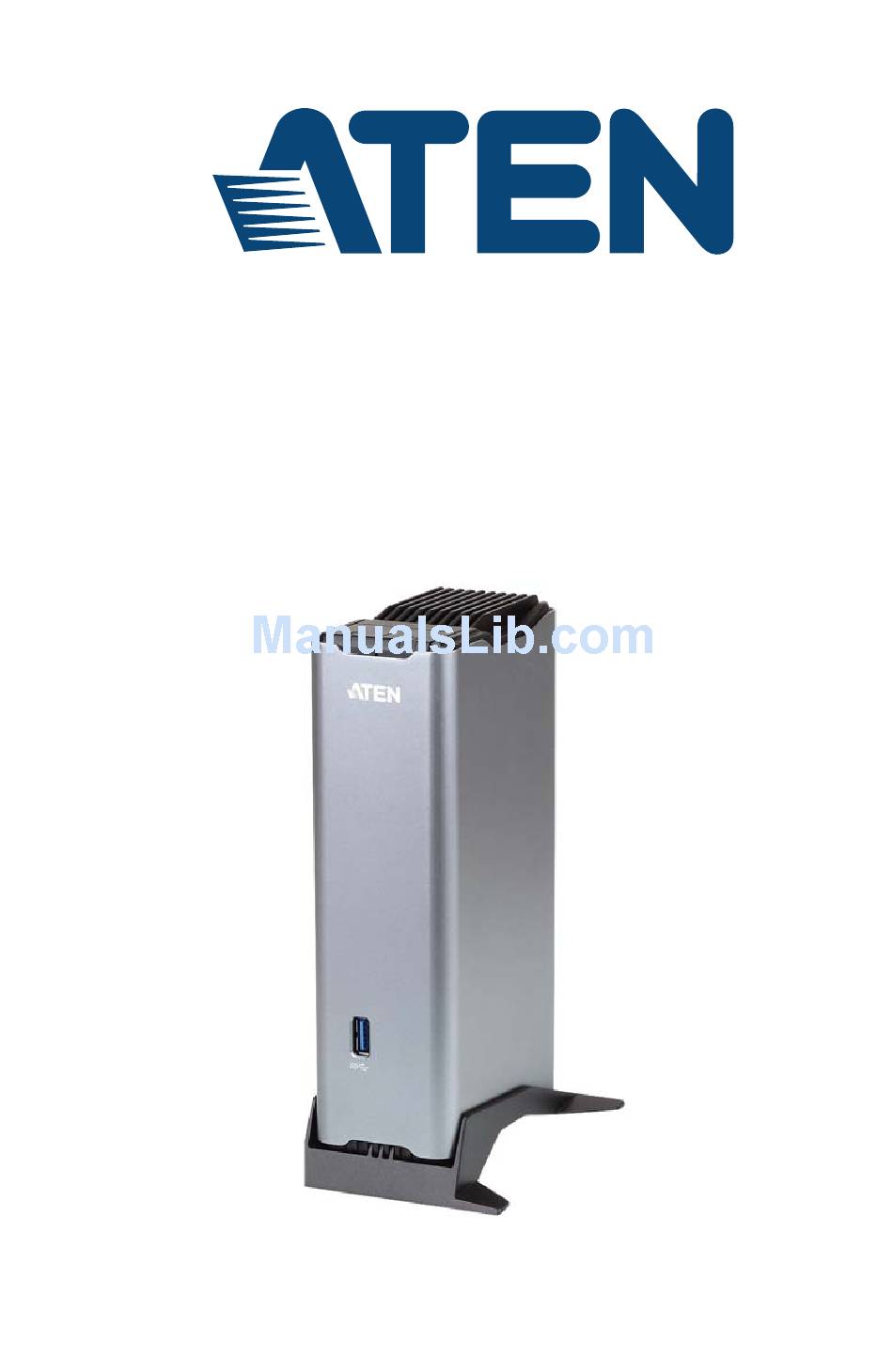

- Page 1 Thunderbolt 2 Sharing Switch US7220 User Manual www.aten.com...
-
Page 2: Fcc Information
US7220 User Manual FCC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Rohs
US7220 User Manual RoHS This product is RoHS compliant. Safety This product has been classified as Information Technology Equipment. -
Page 4: User Information
US7220 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-949-428-1111 United Kingdom... -
Page 5: Package Contents
© Copyright 2017 ATEN® International Co., Ltd. Manual Date: 2017-03-07 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 6: Table Of Contents
US7220 User Manual Contents FCC Information ..........ii RoHS . -
Page 7: About This Manual
US7220 User Manual About this Manual This User Manual is provided to help you get the most from your US7220 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Chapter 1. Introduction
With the ability to daisy-chain up to five Thunderbolt devices, the US7220 connects up to 11 peripherals including Thunderbolt monitors and video capture devices – plus USB drives, printers, high-definition cameras, keyboards, mice and more. -
Page 10: Features
US7220 User Manual Features Thunderbolt 2.0 compliant with data transfer rates up to 20 Gbps Connect 11 devices to a laptop through a single Thunderbolt cable* Two Thunderbolt ports connect two Thunderbolt computers One Thunderbolt port connects a Thunderbolt device and daisy-chains up... -
Page 11: Requirements
Chapter 1. Introduction Requirements The following devices are required for a complete US7220 installation: Compatible Hardware MacBook Pro (Retina, 13-inch, Late 2012) and later MacBook Pro (Retina, 15-inch, Mid 2012) and later MacBook Pro (13-inch, Early 2011) and later MacBook Pro (15-inch, Early, 2011) and later... -
Page 12: Components
US7220 User Manual Components Front View Component Description Port Selection Use this pushbutton to switch access/control of all Pushbutton (1) connected devices to the computer connected to Thunderbolt Port 1. Port Selection Use this pushbutton to switch access/control of all... -
Page 13: Rear View
Chapter 1. Introduction Rear View Component Description Thunderbolt 2 This Thunderbolt 2 port connects the first of two Thunderbolt-enabled computers. Port (1) - Page 14 US7220 User Manual Component Description Thunderbolt 2 This Thunderbolt 2 port connects the second of two Thunderbolt-enabled computers. Port (2) Thunderbolt 2 Daisy- This port connects a Thunderbolt 2 enabled device Chain Port that can daisy-chain up 5 additional Thunderbolt 2 devices.
-
Page 15: Chapter 2. Hardware Setup
Chapter 2 Hardware Setup 1. Important safety information regarding the placement of this device is provided on page 11. Please review it before proceeding. 2. Make sure that the power to all devices connected to the installation are turned off. You must unplug the power cords of any computers that have the Keyboard Power On function. -
Page 16: Cable Connections
2 Daisy-Chain port on the US7220. You can daisy-chain up to 4 additional devices through the Thunderbolt 2 Daisy-Chain port. 3. Connect an HDMI monitor to the HDMI port on the US7220. The HDMI monitor should automatically detect the additional display.* 4. -
Page 17: Installation Diagram
Chapter 2. Hardware Setup Installation Diagram... -
Page 18: Chapter 3. Operation
Operation Overview The US7220 can be operated via the two port selection pushbuttons found on the top of the unit. Press Port Selection Pushbutton (1) to switch all the device connections to the computer connected to Thunderbolt 2 Port (1); or press Port Selection Pushbutton (2) to switch all the device connections to the computer connected to Thunderbolt 2 Port (2).*... -
Page 19: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 20 US7220 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 21: Technical Support
Appendix Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iv: North America Email Support support@aten-usa.com Online Troubleshooting http://eservice.aten.com Technical Documentation Support Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase. -
Page 22: Specifications
US7220 User Manual Specifications Function US7220 Computer Connections Device Connections 1 Direct; 5 Max. (via Daisy chain mode) Connectors Computer 2 x Thunderbolt 2.0 Female (Black) Device 1 x Thunderbolt 2.0 Female (Black) 3 x USB3.1 Gen1 Type A Female (Blue) 2 x USB2.0 Type A Female (Black) -
Page 23: Limited Warranty
0.78 kg Dimensions (L x W x H) 5.70 x 9.75 x 19.19 cm **The US7220 supports either HDMI or Mini DisplayPort, but not both. Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION.
