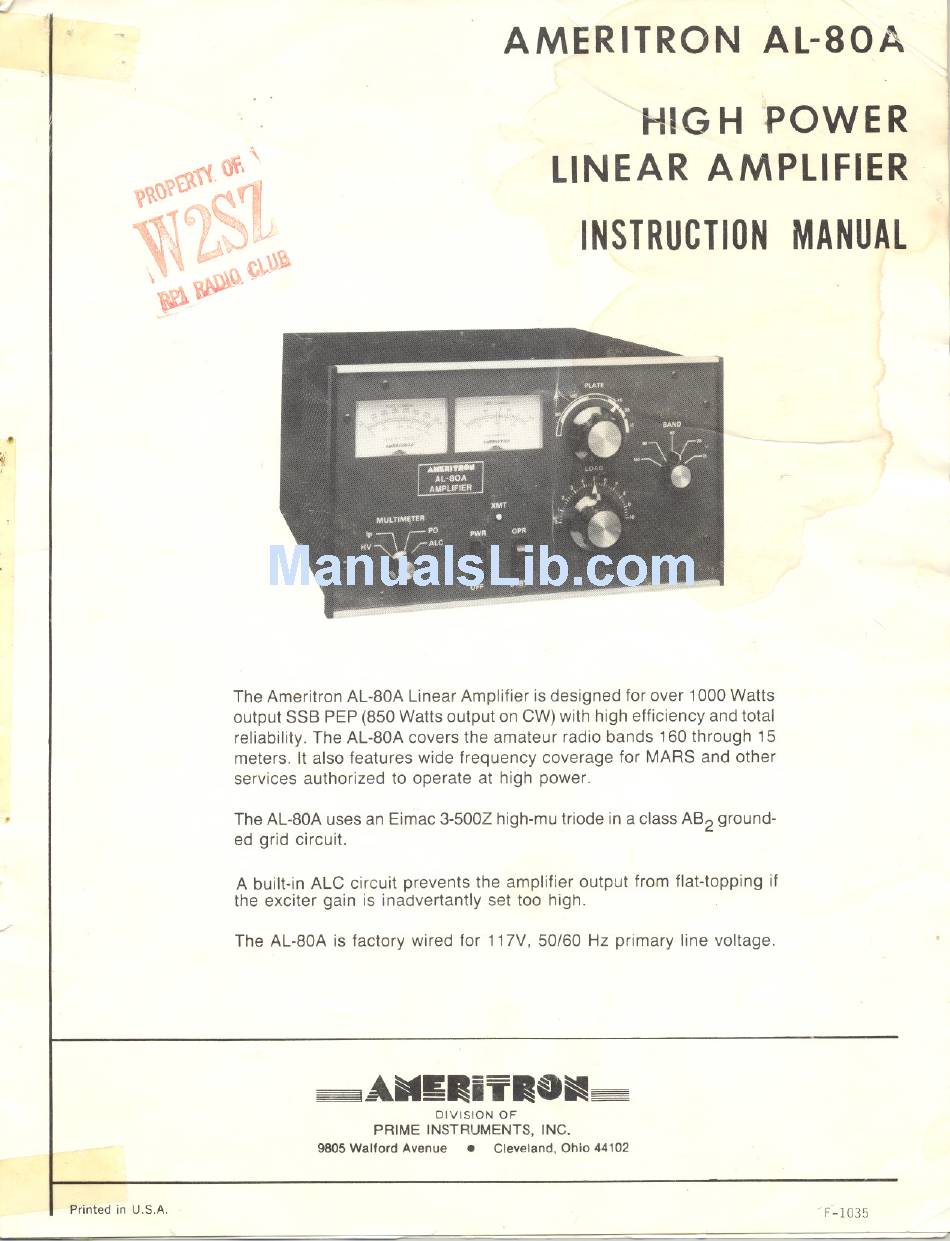

AMERITRON AL-80A Instruction Manual

~I
AMERITRON AL-80A
I
J
-"
~,
~~()V~\'t.\
HIG H POWER
LINEAR AMPLIFIER
\
~.~
V\-\\Y>
INSTRUCTION MANUAL
A
-- ---
~
..
The Ameritron AL-80A Linear Amplifier is designed for over 1000 Watts
output SSB PEP (850 Watts output on CW) with high efficiency and total
reliability. The AL-80A covers the amateur radio bands 160 through 15
meters. It also features wide frequency coverage for MARS and other
services authorized to operate at high power.
.
The AL-80A uses an Eimac 3-500Z high-mu triode in a class AB2 ground-
ed grid circuit.
A built-in ALC circuit prevents the amplifier output from flat-topping if
the exciter gain is inadvertantly set too high.
./
The AL-80A is factory wired for 117V, 50/60 Hz primary line voltage.
~A~!5liTII8~~
DIVISION OF
PRIME INSTRUMENTS,
INC.
9805 Walford
Avenue
8 Cleveland, Ohio 44102
Printed in U.S.A.
/ (-1035
.,
