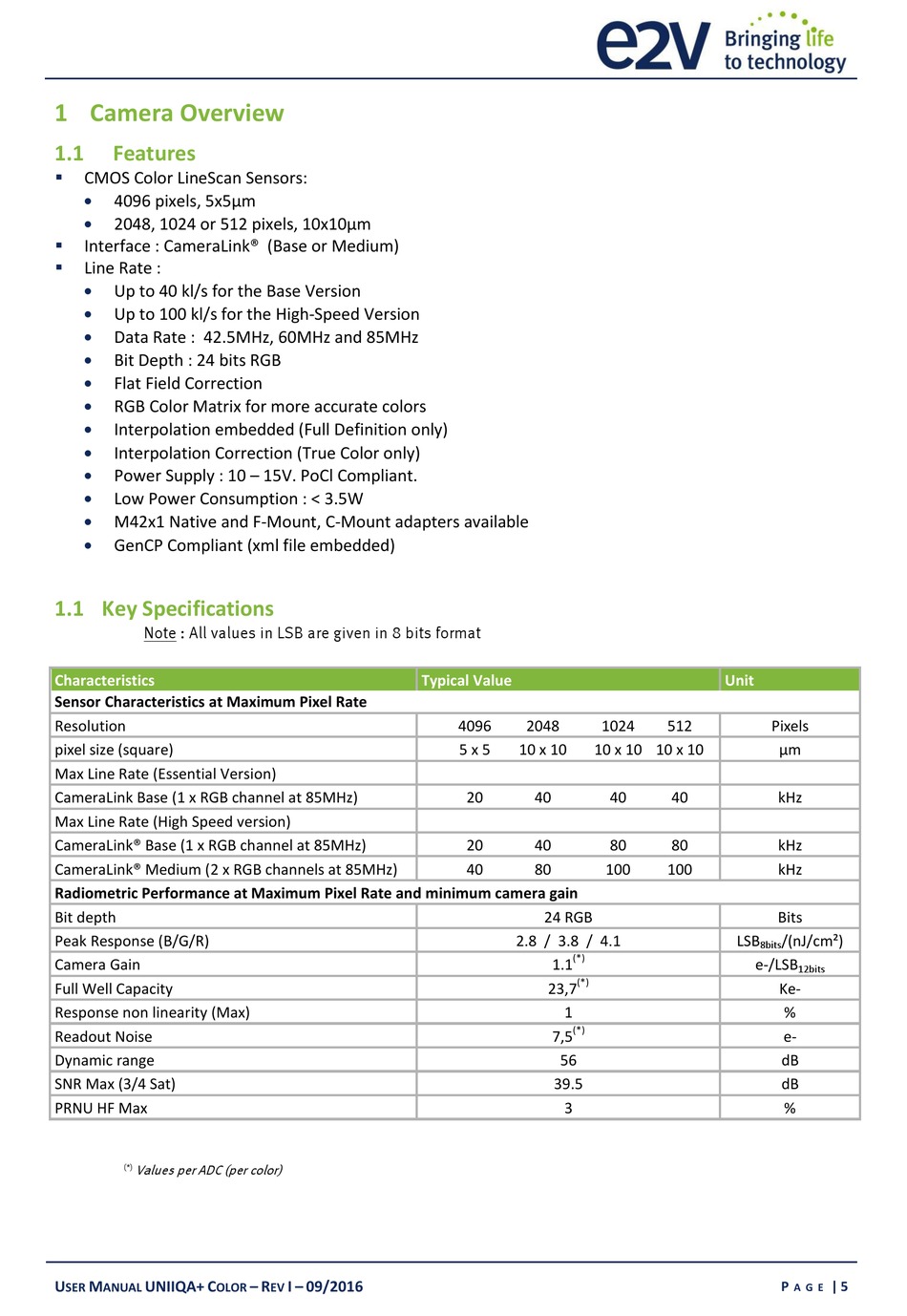

1 Camera Overview

1.1

Features


CMOS Color LineScan Sensors:

4096 pixels, 5x5µm

2048, 1024 or 512 pixels, 10x10µm

Interface : CameraLink® (Base or Medium)

Line Rate :

Up to 40 kl/s for the Base Version

Up to 100 kl/s for the High-Speed Version

Data Rate : 42.5MHz, 60MHz and 85MHz

Bit Depth : 24 bits RGB

Flat Field Correction

RGB Color Matrix for more accurate colors

Interpolation embedded (Full Definition only)

Interpolation Correction (True Color only)

Power Supply : 10 – 15V. PoCl Compliant.

Low Power Consumption : < 3.5W

M42x1 Native and F-Mount, C-Mount adapters available

GenCP Compliant (xml file embedded)

1.1 Key Specifications

Note : All values in LSB are given in 8 bits format
Characteristics
Sensor Characteristics at Maximum Pixel Rate
Resolution
pixel size (square)
Max Line Rate (Essential Version)
CameraLink Base (1 x RGB channel at 85MHz)
Max Line Rate (High Speed version)
CameraLink® Base (1 x RGB channel at 85MHz)
CameraLink® Medium (2 x RGB channels at 85MHz)
Radiometric Performance at Maximum Pixel Rate and minimum camera gain
Bit depth
Peak Response (B/G/R)
Camera Gain
Full Well Capacity
Response non linearity (Max)
Readout Noise
Dynamic range
SNR Max (3/4 Sat)
PRNU HF Max
(*) Values per ADC (per color)
U M UNIIQA+ C
SER ANUAL OLOR
– R I – 09/2016
EV
Typical Value
4096 2048
5 x 5 10 x 10
20 40
20 40
40 80
24 RGB
2.8 / 3.8 / 4.1
(*)
1.1
(*)
23,7
1
(*)
7,5
56
39.5
3
Unit
1024 512
10 x 10 10 x 10
40 40
80 80
100 100
LSB
8bits
e-/LSB
Pixels
µm
kHz
kHz
kHz
Bits
/(nJ/cm²)
12bits
Ke-
%
e-
dB
dB
%
