2.08 Duty Cycle

The rated duty cycle of a Welding Power Source, is a statement of the time it may be operated at its rated welding current output
without exceeding the temperature limits of the insulation of the component parts. To explain the 10 minute duty cycle period the
following example is used. Suppose a Welding Power Source is designed to operate at a 20% duty cycle, 100 amperes at 19 volts.
This means that it has been designed and built to provide the rated amperage (100 A) for 2 minutes, i.e. arc welding time, out of
every 10 minute period (20% of 10 minutes is 2 minutes). During the other 8 minutes of the 10 minute period the Welding Power
Source must idle and be allowed to cool.
100
90
80
70
60
50
40
30
20
10
0
0 10 20

2.09 Specifications

DESCRIPTION
Power Source Part No.
Power Source Dimensions
Power Source Weight
Cooling
Welder Type
Output Terminal Type
Standards
Number of Phases
Nominal Supply Voltage
Supply Voltage Range
Supply Frequency
Welding Current Range (MIG Mode)
Welding Current Range (LIFT TIG Mode)
Welding Current Range (STICK Mode)
Wirefeed Speed Range
MIG Welding Voltage Range
Nominal OCV
Manual 0-5420
Safe
Operating
Region
STICK (SMAW)
/ MIG (GMAW/ FCAW)
30 40 50 60 70
Welding Current (amps)

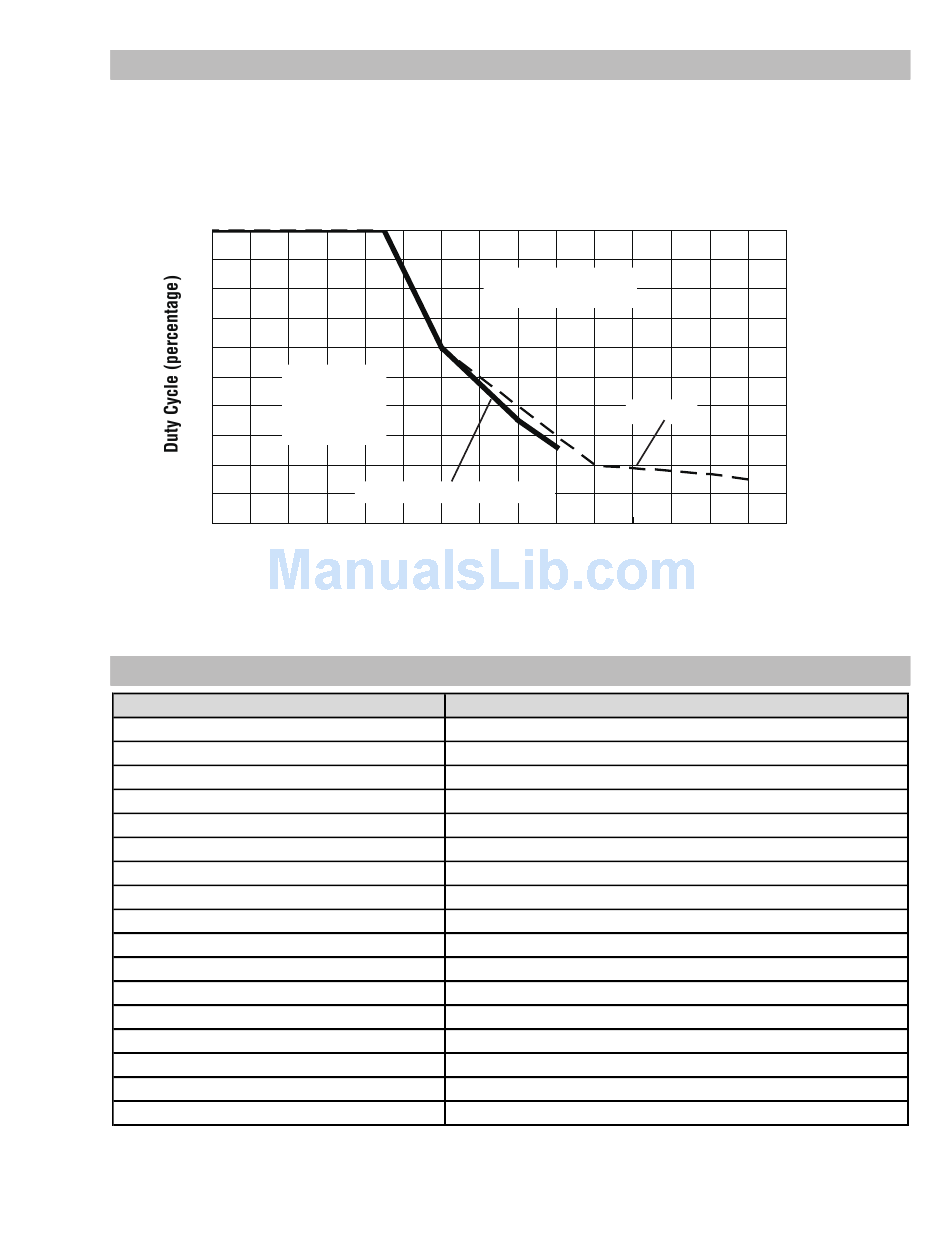

Figure 2-1: Fabricator 141i Duty Cycle
FABRICATOR 141i MULTI PROCESS 3 IN 1 WELDER
W1003140
H16.14" x W8.27" x D17.72" (410mm x 210mm x 450mm)
32.2lb(14.6kg)
Fan Cooled
Multi Process Welding System
DinseTM 25
CSA E60974-1-00 / UL60974-1 / IEC 60974-1
Single Phase
115V AC
95-140V AC
50/60Hz
10- 90A
10- 140A
10- 90A
95-390 IPM
10-19V DC
53V DC
ESAB FABRICATOR 141i
Fabricator 141i
TIG (GTAW)
80 90 100 110 120
2-3
130 140 150
Art # A-11276_AB
