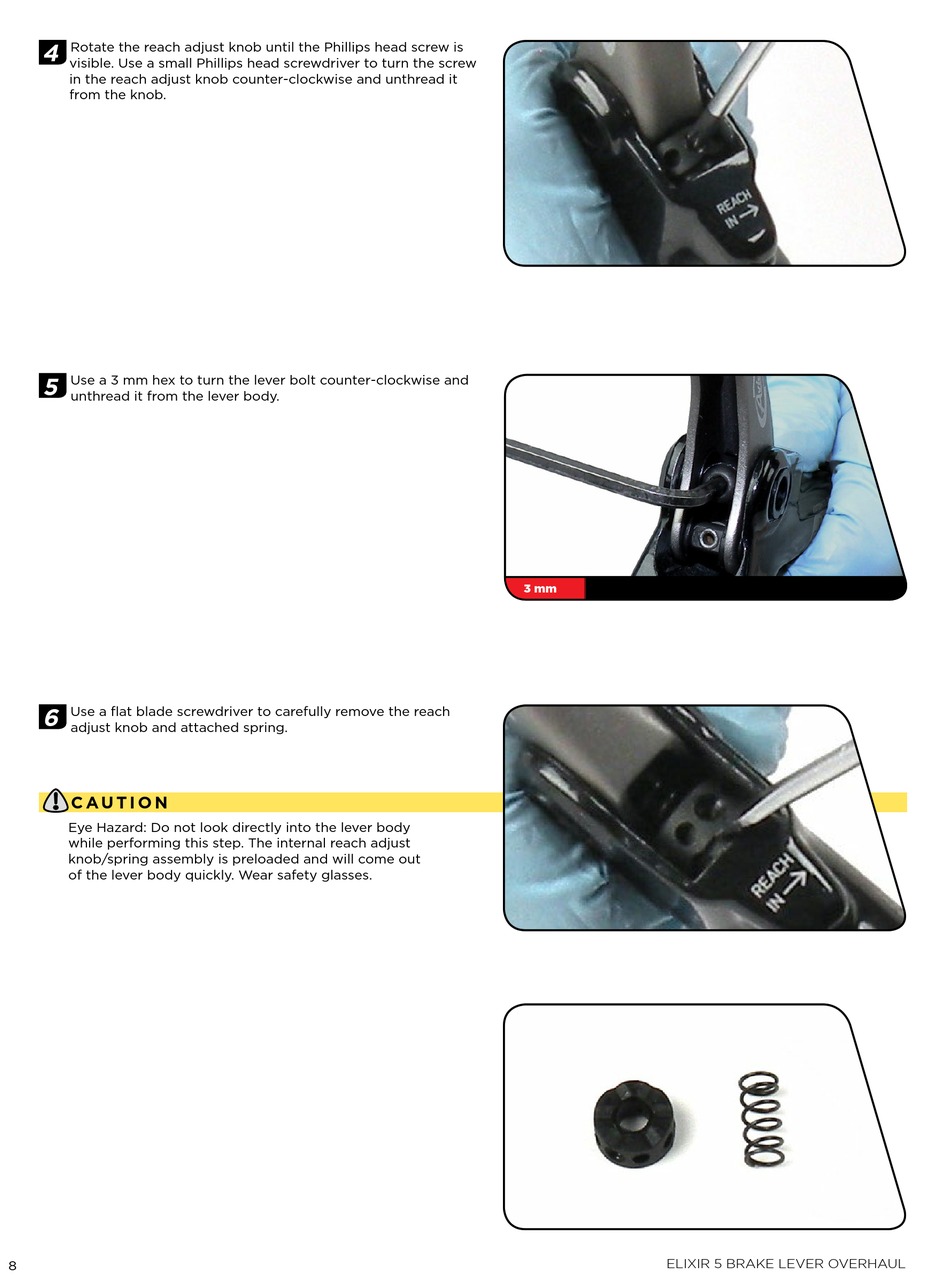

SRAM Elixir 5 Service Manual page 8

4
Rotate the reach adjust knob until the Phillips head screw is
visible. Use a small Phillips head screwdriver to turn the screw
in the reach adjust knob counter-clockwise and unthread it
from the knob.
5
Use a 3 mm hex to turn the lever bolt counter-clockwise and
unthread it from the lever body.
6
Use a flat blade screwdriver to carefully remove the reach
adjust knob and attached spring.
C a u T i o n
Eye Hazard: do not look directly into the lever body
while performing this step. the internal reach adjust
knob/spring assembly is preloaded and will come out
of the lever body quickly. Wear safety glasses.
8
3 mm
elixir 5 brake lever overhaul
