SRAM Elixir 5 Service Manual page 12

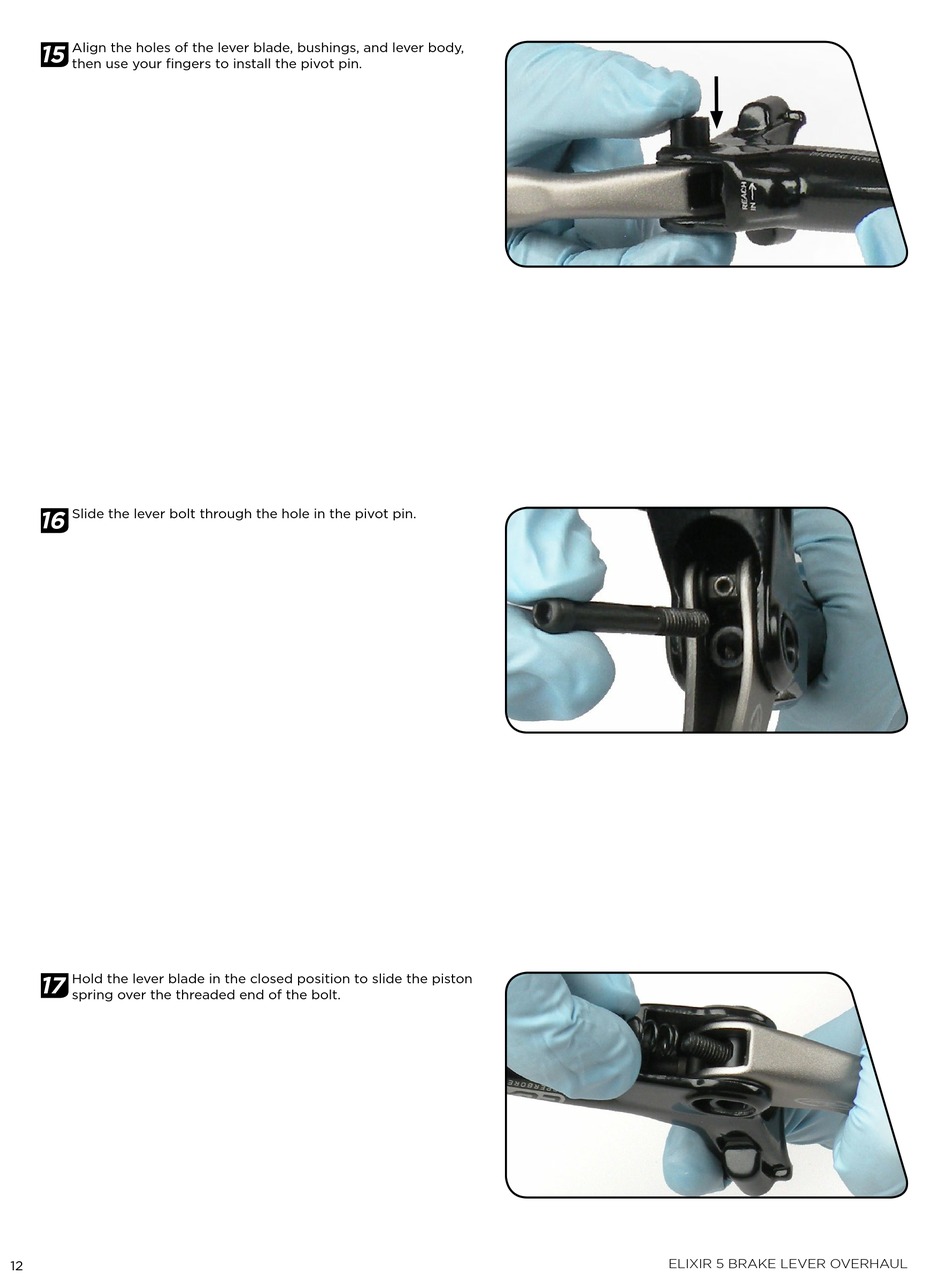

15
align the holes of the lever blade, bushings, and lever body,
then use your fingers to install the pivot pin.
16
Slide the lever bolt through the hole in the pivot pin.
17
Hold the lever blade in the closed position to slide the piston
spring over the threaded end of the bolt.
12
elixir 5 brake lever overhaul
