Martin Acrobat User Manual page 2

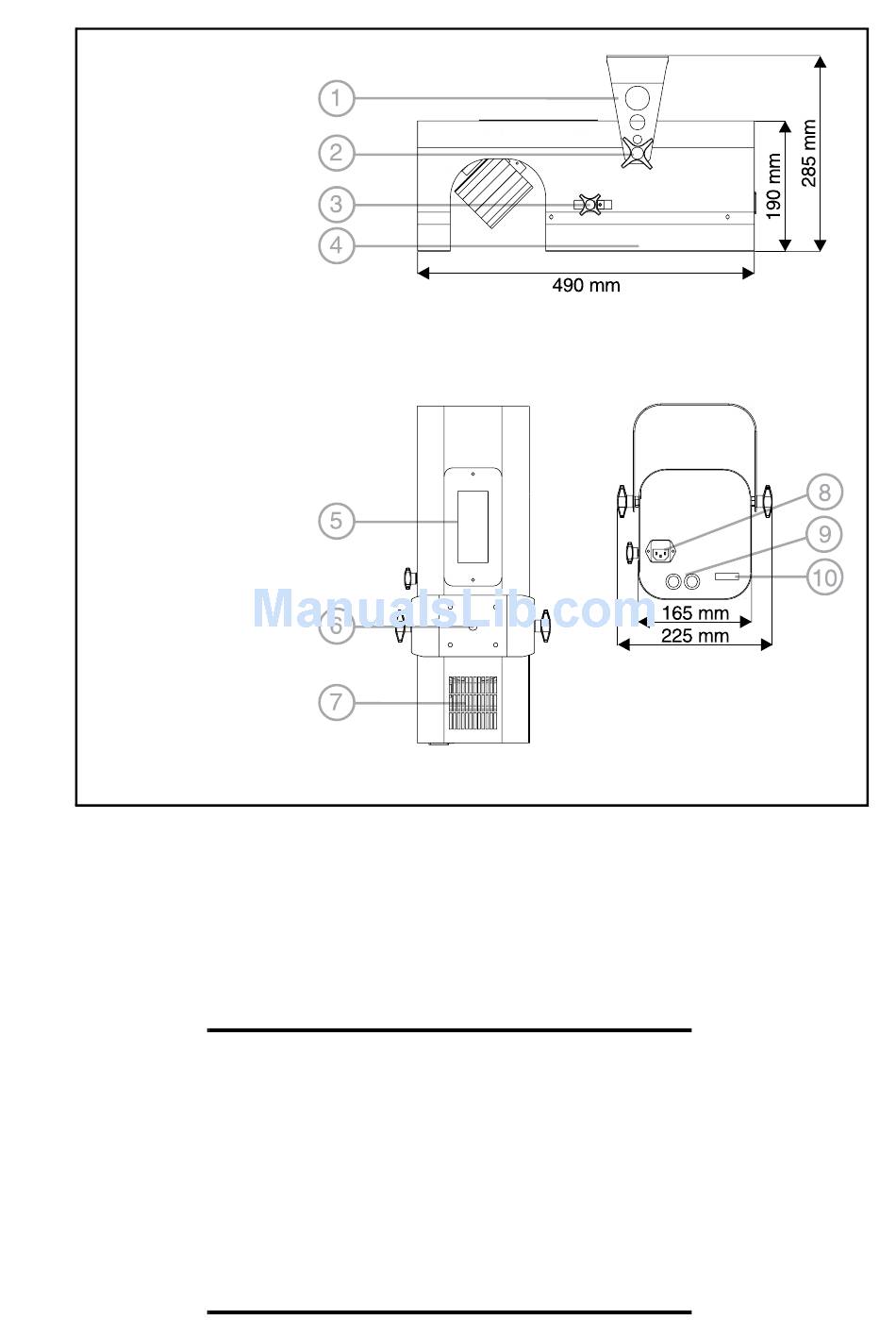

1 mounting bracket
2 swivel locks
3 focus adjustment
4 effects cover
5 lamp access
6 13 mm clamp hole
7 air vent
8 AC input & main
fuse
9 data sockets
10 DIP-switch
©1999 - 2001 Martin Professional A/S, Denmark.
All rights reserved. No part of this manual may be
reproduced, in any form or by any means, without
permission in writing from Martin Professional A/S,
Denmark.
Printed in Denmark.
P/N 35000039, Rev. H
