Right Pedal Leg (24) With Four M8 X 20Mm - Pro-Form CARDIO HIT User Manual

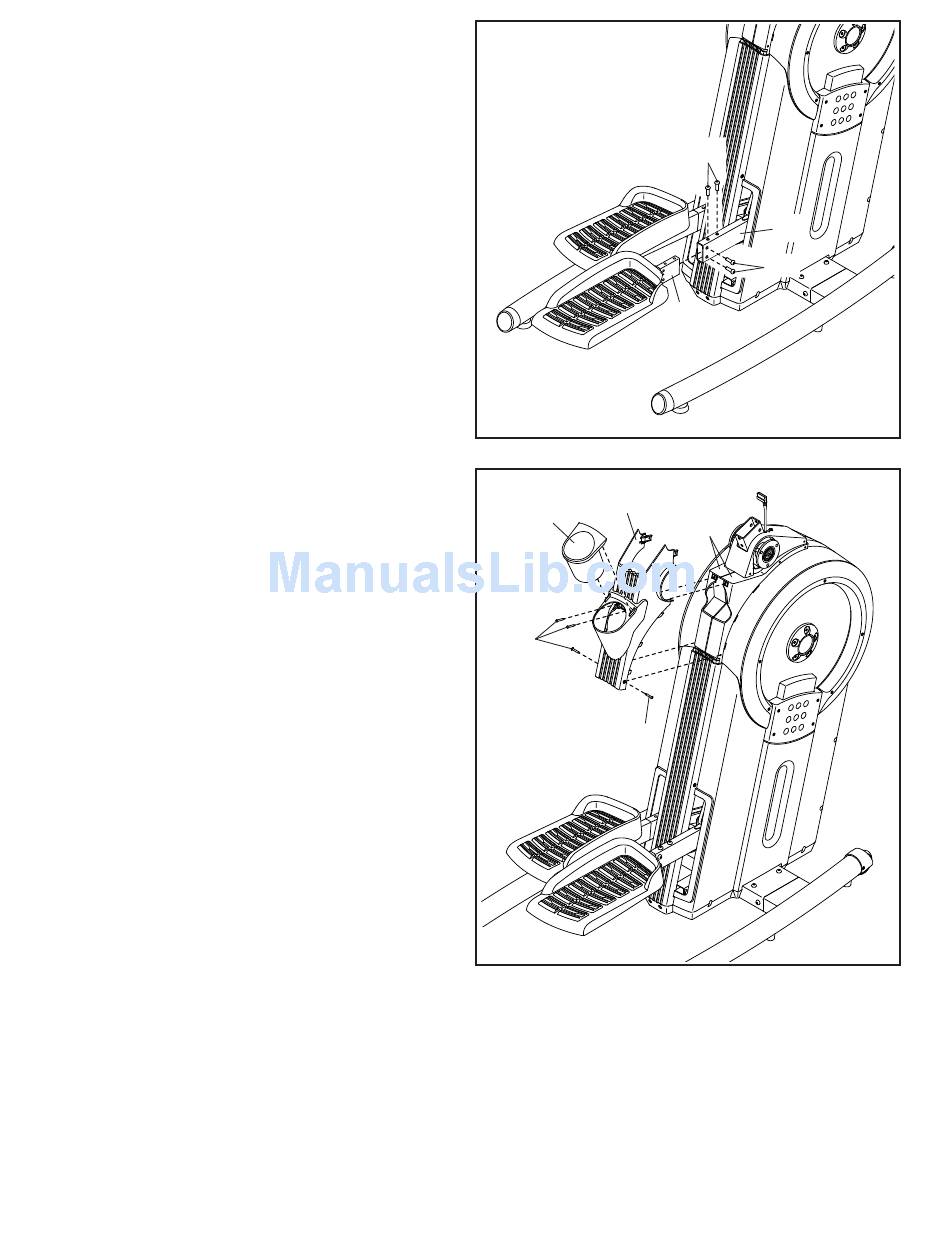

4. Attach the Right Pedal Base (2) to the

Right Pedal Leg (24) with four M8 x 20mm

Screws (102); start all the Screws, and then
tighten them.
Attach the Left Pedal Base (not shown) to the
Left Pedal Leg (not shown) in the same way.
5. Press the Rear Cover (53) onto the Left and
Right Shields (50, 51).
Attach Rear Cover (53) with four M4 x 16mm
Flat Head Screws (101); start all the Flat Head
Screws, and then tighten them.
Then, insert the Accessory Tray (18) into the
Rear Cover (53).
