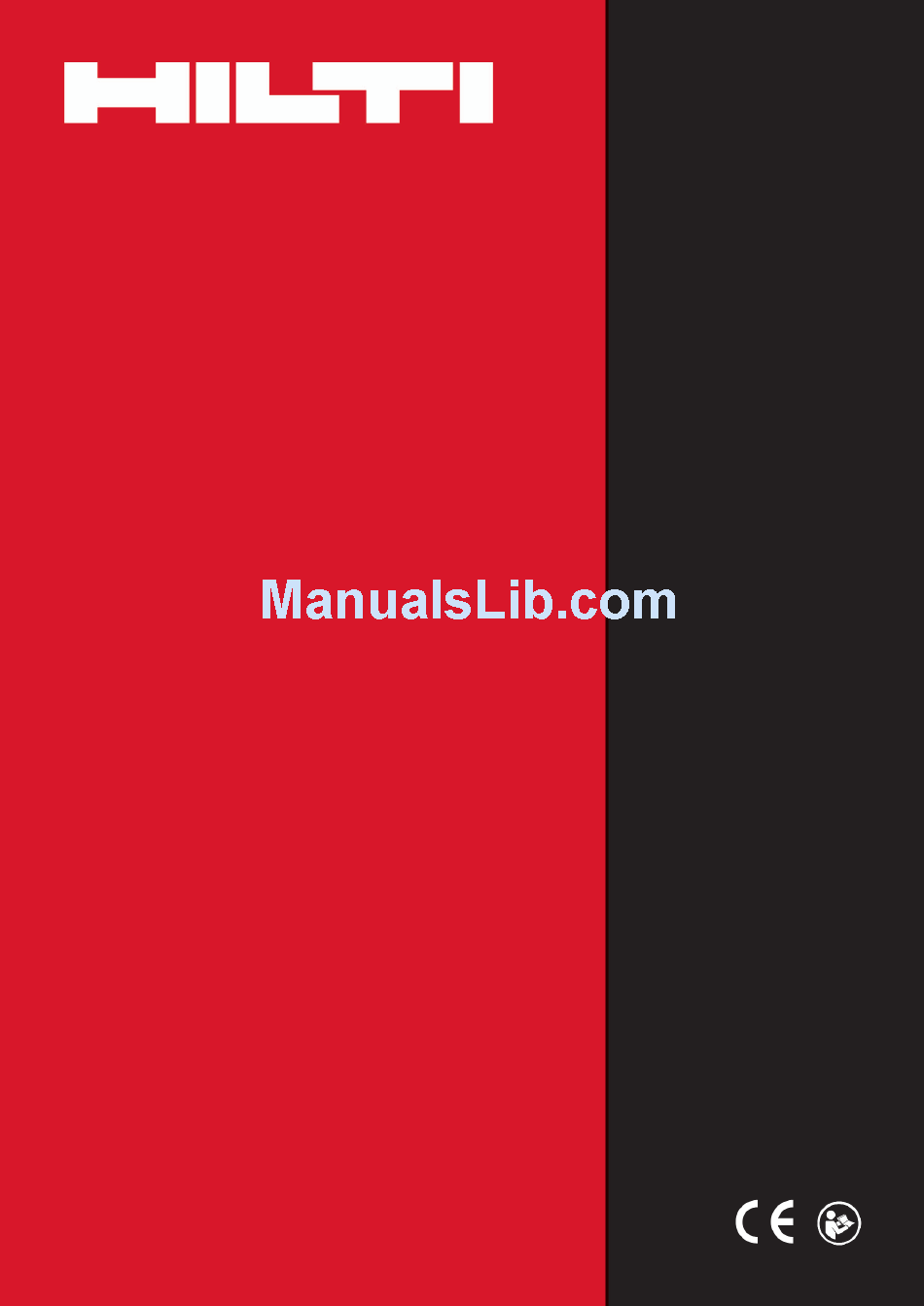

Page 1
BX 3-ME BX 3-IF Deutsch English Nederlands Français Español Português Italiano Dansk Svenska Norsk Suomi Eesti Latviešu Lietuvių Polski Slovenščina Hrvatski Srpski Български Română Ελληνικά ת י ר ב ע...
Page 6
1 Information about the documentation 1.1 Explanation of signs used 1.1.1 Warnings Warnings alert persons to hazards that occur when handling or using the product. The following signal words are used in combination with an icon: DANGER! Draws attention to imminent danger that will lead to serious personal injury or fatality. WARNING! Draws attention to a potentially dangerous situation that could lead to serious per- sonal injury or fatality.
Page 7
1.3 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered.
Page 8
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. ▶ Prevent unintentional starting. Ensure the switch is in the off‐position before connecting to power source and/or battery pack, picking up or carrying the tool.
Page 9
▶ Never trigger the tool again in an attempt to improve the hold of a previously driven nail or stud. Fasteners can break or jam. ▶ Do not drive fasteners into existing holes except in situations where this is recommended by Hilti. ▶ Always observe the application guidelines.
Page 10
▶ Do not use the tool in wet weather (rain) or in damp conditions. ▶ Avoid ingress of moisture. Ingress of moisture may cause a short circuit, resulting in burning injuries or fire. Workplace ▶ Do not attempt to drive fasteners into materials that are too hard, such as welded steel or cast steel. Attempting to drive fasteners into these materials may lead to malfunctions, incorrectly driven fasteners or breakage of fasteners.
Page 11
The fastening tool, battery and fasteners form a single technical unit. This means that trouble-free fastening can be ensured with this fastening tool only when it is used in conjunction with the Hilti fasteners specially designed and manufactured for it and with the batteries and chargers recommended by Hilti. The fastening and application recommendations made by Hilti apply only when this condition is observed.
Page 12
3.8 Items supplied BX 3-ME or BX 3-IF fastening tool, operating instructions. You can find other system products approved for your product at your local Hilti Center or online at: www.hilti.com 4 Technical data 4.1 Fastening tool Weight in accordance with EPTA procedure 3.8 kg...
Page 13
Noise and vibration information (measured in accordance with EN 60745-216) Typical Arated emission sound pressure level, L (when driving nails 100 dB into concrete and steel) Typical Arated emission sound pressure level, L (when driving nails 89 dB into concrete and steel) Uncertainty for the specified sound levels, K 3 dB Total uniaxial vibration values (in z-direction)
Page 14
5.5 Loading the fastening tool with nails 5.5.1 Loading for magazine operation CAUTION Risk of crushing! The nail pusher, if it jumps back under spring pressure, may cause injury and damage to the fastening tool. ▶ When pulling the nail pusher down, take care to ensure that it engages securely. Do not allow the nail pusher to jump back under spring pressure.
Page 15
1. Push against the support leg to release it from its resting position. 2. Pivot the support leg back through about 180°. 3. Push against the support leg from below until it engages in the retracted position. 6.1.2 Extending the support leg CAUTION Risk of finger injury! When extending/retracting the support leg there is a risk of trapping the fingers between the scaffold hook and the casing of the tool.
Page 16
Individual nails may get stuck in the fastener guide. You can remove jammed nails from the fastener guide with the aid of the X-NP drift punch set. Accessories are available from your Hilti Center or can be ordered online at www.hilti.com.
Page 17
▶ Do not use cleaning agents containing silicone. 7.2 Maintenance ▶ To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. You can find other spare parts, consumables and accessories approved for this product at your local Hilti Center or online at: www.hilti.com.
Page 18
Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
Page 19
Technical documentation filed at: • Hilti Entwicklungsgesellschaft mbH Zulassung Elektrowerkzeuge Hiltistraße 6 86916 Kaufering Germany Schaan, 11/2015 Norbert Wohlwend Lars Tänzer (Head of BA Quality and Process Management / (Head of BU Direct Fastening) Business Unit Direct Fastening)
