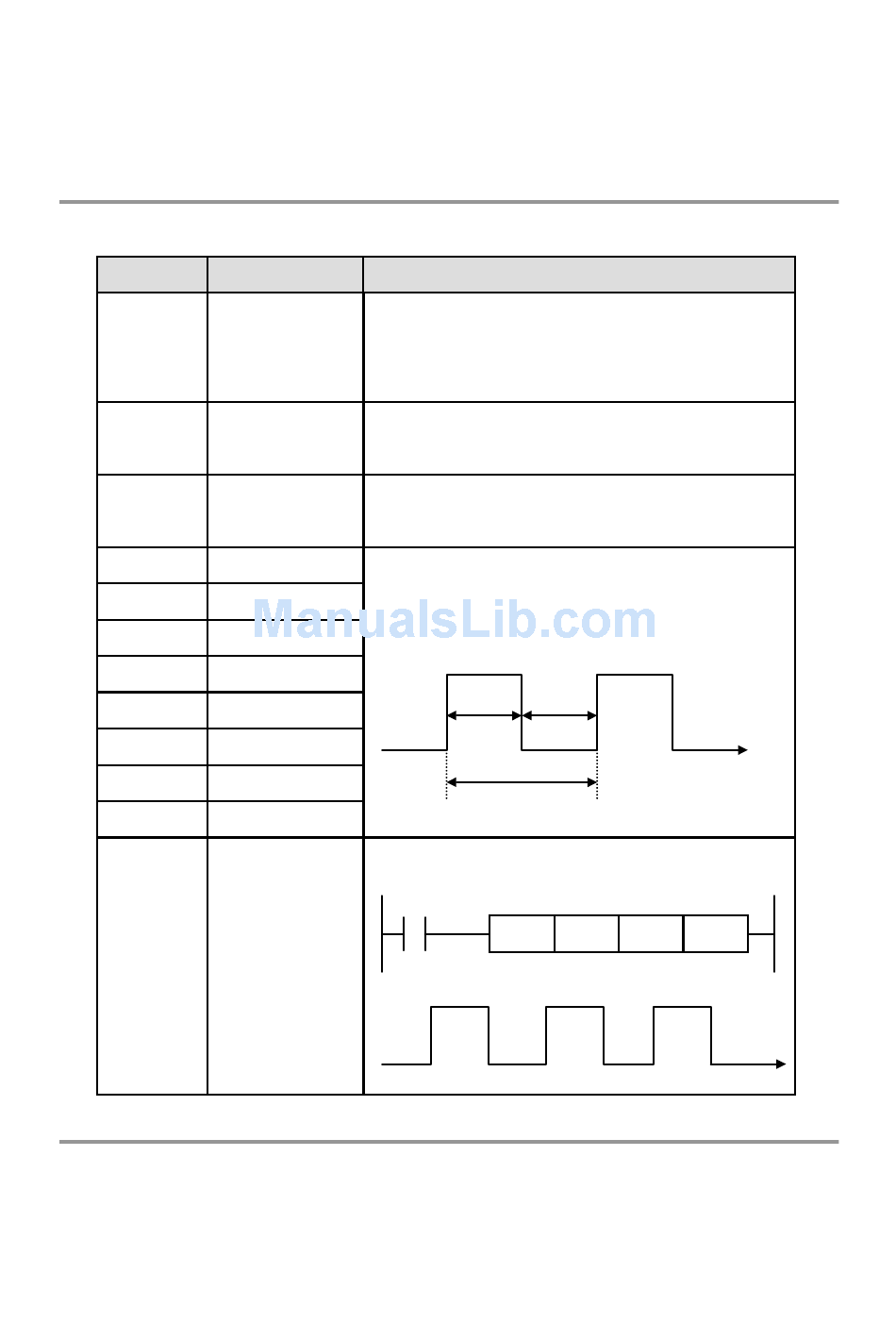

Relay
Name
The step No.
F060
where error
~ F06F
occurred
High speed
F070
counter output
~ F077
register
F080
PLC model
~ F08F
F090
20ms clock
F091
100ms clock
F092
200ms clock
F093
1sec clock
F094
2sec clock
F095
10sec clock
F096
20sec clock
F097
1 minute clock
F100
User defined
clock
~ F103
F100 : Clock 0
~
F103 : Clock 3
Description
• The step No. where program error occurred in
stored.
• In case of branch instruction error, the destination
step No. is stored.
• HSCNT instruction : F070 ~ F077
• HSC instruction : use only F070 bit
• K10S & K10S1 : h0031
• K30S : h0033
There relays repeat On/Off with fixed time interval,
and are operated only when the PLC is in RUN
mode.
Example) F094 : 2sec clock
1sec
1sec
2sec
These relays repeat On/Off based on a scan time.
(Initial state = Off)
Duty
n1
n2
MASTER-K10S1
• K60S : h0036
• K100S : h0035
F10x
n1
n2
n1
n2
7
