Summary of Contents for IK Multimedia iRig HD2
-

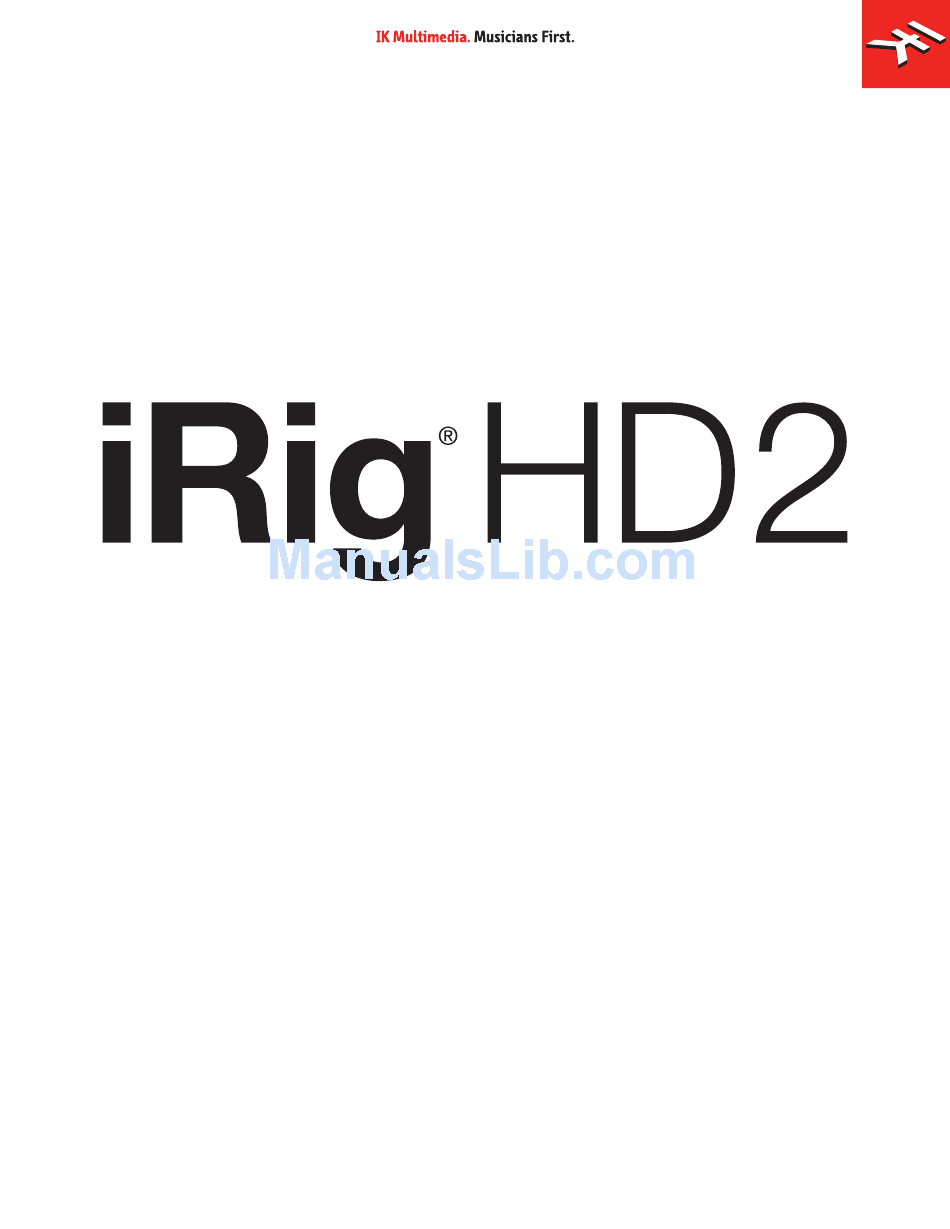

Page 1: User Manual
Guitar interface USER MANUAL... -
Page 2: Table Of Contents
Contents Table of Contents Contents English iRig HD 2 Register your iRig HD 2 Installation and setup iOS devices Setting input gain on iRig HD 2 Amplifier output jack THRU-FX switch Headphone output jack Stand adapter Troubleshooting Specifications Warranty Support and more info Regulatory... -
Page 3: English

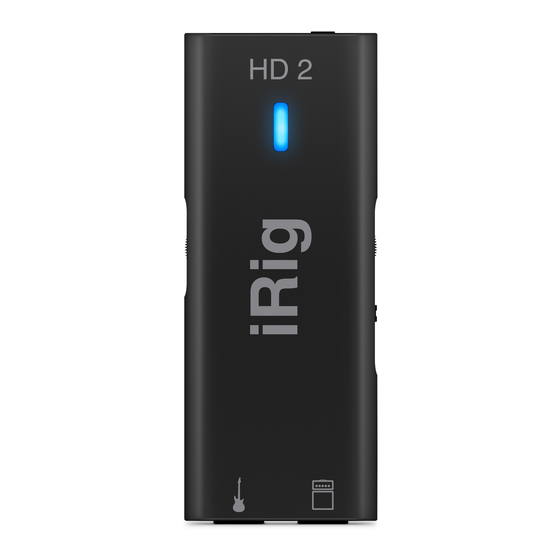

English iRig HD 2 Thank you for purchasing iRig HD 2. Your package contains: • iRig HD 2 • USB cable • Lightning cable • Velcro clip • Velcro strip • Quick Start Guide • Registration Card iRig HD 2 is the successor of the wildly popular iRig HD digital guitar interface for iPhone, iPad, Mac & PC. This new version of the iRig HD 2 is packed full of player-centric features in an all new enclosure. -
Page 4: Installation And Setup
English Installation and setup iOS devices 1. Connect the included micro-USB cable to the iRig HD 2. 2. Connect the cable to the Lightning port on your device. 3. Connect your guitar, bass or other mono instrument to the 1/4” input jack on iRig HD 2. 1/4"... - Page 5 English 4. Download your preferred app from your device’s app store. AmpliTube 4 iOS/Mac/PC FREE DOWNLOAD ikdownloads.com/irighd2 5. Connect your headphones, mixer or powered speakers to the iRig HD 2 headphone jack. 1/8" 1/8" AUX 1/8"...
- Page 6 English 6. Connect an external amplifier to the 1/4” TS Amplifier output jack on iRig HD 2 and select the type of signal sent to the output with the THRU-FX switch. 1/4" 7. If needed, connect the detachable velcro-slot to the back of iRig HD 2 and attach it to any stand or pole with the velcro strap.
-
Page 7: Mac
English 1. Connect the included micro-USB cable to the iRig HD 2. 2. Connect the cable to an available USB port on your Mac. The status LED on iRig HD 2 will turn dark blue. 3. Connect your guitar, bass or other mono instrument to the 1/4” input jack on iRig HD 2. 4. -
Page 8: Amplifier Output Jack
English Setting input gain on iRig HD 2 When playing your instrument check the iRig HD 2 status LED. BLUE GREEN ORANGE • If the LED is alternating between BLUE and GREEN or is always GREEN, you should increase the iRig HD 2 input gain by rotating the GAIN control toward the output connector. -
Page 9: Thru-Fx Switch
English THRU-FX switch THRU The Thru-Fx switch allows you to select the type of output that is sent thru the “Amplifier output jack.” When this switch is set to THRU, the “Amplifier output jack” carries the same signal that is sent to the instrument input. -
Page 10: Troubleshooting
English Troubleshooting Sound is distorted. Check that the input gain on iRig HD 2 has been set properly. If the LED is red when you play your instrument, decrease the input gain as described in this guide. I don’t get any sound. In order for iRig HD 2 to turn on, a Core Audio-compatible audio app must first be launched on your iOS device or Mac. -
Page 11: Regulatory
HD 2, AmpliTube®, VocaLive™, SampleTank®, iGrand Piano™ are trademarks or registered trademarks property of IK Multimedia Srl. All other product names and images, trademarks and artists names are the property of their respective owners, which are in no way associated or affiliated with IK Multimedia. iPad, iPhone, iPod touch, Mac, Mac logo and GarageBand are trademarks of Apple Computer, Inc., registered in the U.S.
