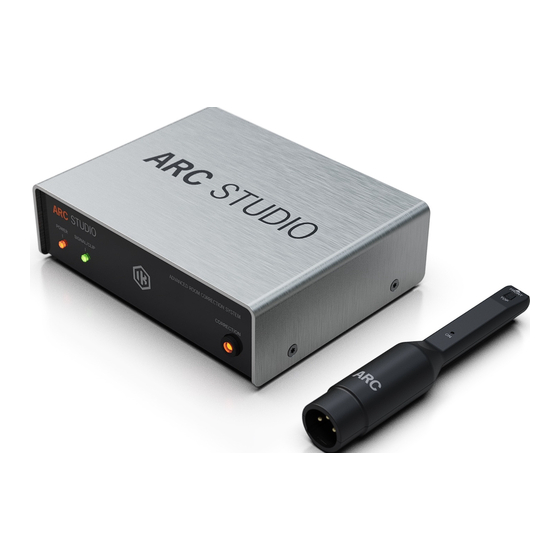

- Page 1 ARC Studio Advanced Room Correction System USER MANUAL...
-
Page 2: Table Of Contents
ARC Studio Table of Contents Contents 1 – ARC Studio device 1.1 – What’s inside the box 1.2 – Register your ARC Studio 1.3 – Main Features 1.4 – Precautions 1.5 – Installation and setup 1.5.1 – Front Panel 1.5.2 – Rear Panel 1.6 –... -
Page 3: Arc Studio Device
• 5V 3A Power Supply • Registration card 1.2 – Register your ARC Studio By registering, you can access technical support, activate your warranty, and receive free JamPoints™, which will be added to your account. JamPoints™ allows you to obtain discounts on future IK purchases! Registering also keeps you informed of all the latest software updates and IK products. - Page 4 Be careful not to let metal objects get into the equipment. If something does slip into the unit, unplug the Power and/or the USB cable, then contact your nearest IK Multimedia dealer or the store where the equipment was purchased.
-
Page 5: Installation And Setup
3. CORRECTION: This button enables or disables the audio processing. When CORRECTION is off, the unit is bypassed and the input signal is routed directly to the output. Keeping this button pressed during power-up makes the unit boot into DFU mode. ARC Studio device... -
Page 6: Rear Panel
1. NPUT: XLR balanced inputs connectors. 2. OUTPUT: XLR balanced output connectors. 3. USB: Type C USB port for connecting ARC Studio to a Mac/PC. 4. DC IN: barrel jack for connecting the power supply unit (5V, 3A). ARC Studio device... -
Page 7: Audio Specifications
• THD+N (1 kHz@-1dBFS): -107 dB • Channel Crosstalk (1 kHz): -122.5 dB • Max Phase Deviation: +7° 20Hz, +16° 22kHz • Input Impedance (balanced): 20 kOhm • Output Impedance (balanced): 50 Ohm • Maximum output level: +17 dBu ARC Studio device... -
Page 8: Support
ARC Studio 2 – Support For any questions you may have, please refer to the FAQ webpage at: www.ikmultimedia.com/faq Here you will find answers to the most commonly asked questions. To submit a Technical Support Form, go to: www.ikmultimedia.com/support For warranty information, please visit: www.ikmultimedia.com/warranty... - Page 9 All other product names and images, trademarks and artists names are the property of their respective owners, which are in no way associated or affiliated with IK Multimedia. Product names are used solely for the purpose of identifying the specific products that were studied during IK Multimedia’s sound model development and for describing certain types of tones produced with IK Multimedia’s digital modeling technology.
