- Page 1 USB guitar interface USER MANUAL...
-
Page 2: Table Of Contents
English iRig USB Register your iRig USB 1. iRig USB overview 2. Installation and setup 2.1 Setup 3. iRig USB status LED 4. Setting the input gain 5. Amplifier output jack 5.1 FX/THRU switch 6. Headphone output jack 7. Troubleshooting 8. -
Page 3: English
• iRig USB • USB cable iRig USB is the new entry of the iRig guitar interface family. This new iRig interface is packed in an all-new enclosure and sports some new important features. We still find all the I/Os that are made of the iRig interfaces the first choice for on-the-go guitarists: one 1/4 inches instrument input with dedicated gain control, a 1/4 inches Amp output with dual mode operation, and a 1/8 inches headphone output. -
Page 4: Irig Usb Overview

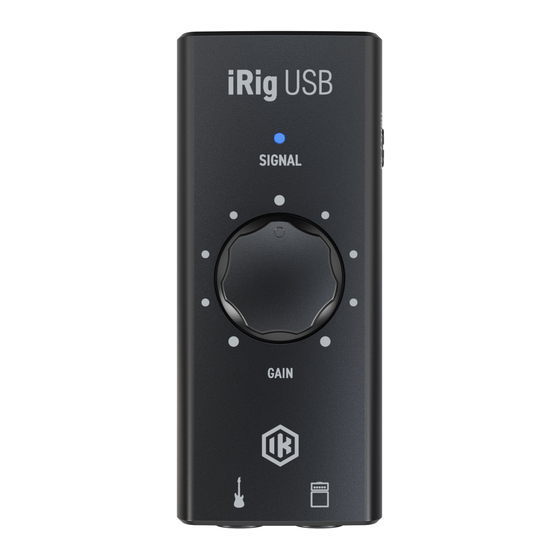

English 1. iRig USB overview 1. Status LED - This LED turn on blue when the iRig USB is connected to an host and turns red when the input signal is clipping. 2. Gain knob - This knob controls the level of the input signal. -
Page 5: Installation And Setup
3. Connect your guitar, bass or other mono instrument to the 1/4” input jack on iRig USB. 4. Launch your preferred audio App and set iRig USB as your default audio device. To do so, please refer to the documentations of the App or Software you’re using. -
Page 6: Fx/Thru Switch
This lets you plug your favorite amplifier into the “Amplifier output jack” and, at the same time, connect iRig USB to your mobile device that runs. For example, a tuner app or your favorite recording app. The headphone out lets you listen to the processed output of your device. -
Page 7: Troubleshooting
7. Troubleshooting Sound is distorted. Check that the input gain on iRig USB has been set properly. If the LED is red when you play your instrument, decrease the input gain as described in this guide. No sound is playback thru the connected headphones nor to the Amp out when in FX mode. -
Page 8: Warranty
English Warranty Please visit: www.ikmultimedia.com/warranty for the complete warranty policy. Support and more info www.ikmultimedia.com/support https://www.ikmultimedia.com/products/irigusb... - Page 9 Sunrise, FL 33325 4-11-1 Shiba Italy Minato-ku, Tokyo 108-0014 Japan iRig® USB is a trademark or registered trademark property of IK Multimedia Production Srl. All other product names and images, trademarks and artists names are the property of their respective owners, which are in no way associated or affiliated with IK Multimedia.
