- Page 1 3-in, mono out streaming audio interface USER MANUAL...
-
Page 2: Table Of Contents
Contents Table of Contents Contents English iRig Stream Solo Register your iRig Stream Solo Installation and setup Connection examples Connecting headset/phones Connecting line level signal to the RCA inputs Using the loopback function Troubleshooting Specifications Warranty Support and more info Regulatory... -
Page 3: English

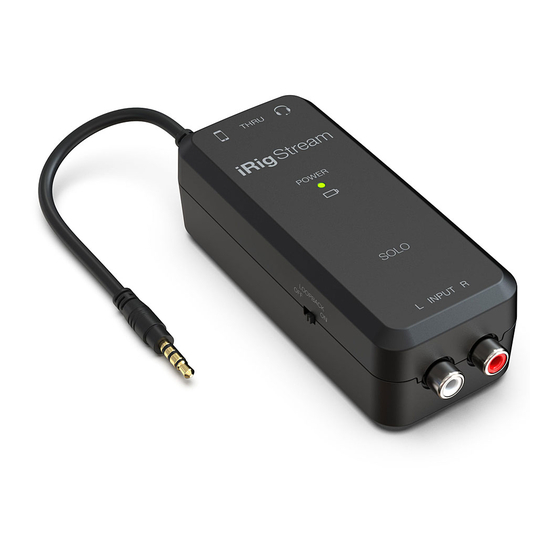

English iRig Stream Solo Thank you for purchasing iRig Stream Solo. Your package contains: • iRig Stream Solo. • 2xAA batteries. • Registration Card. iRig Stream Solo is an easy-to-use audio interface for iPhone, iPad and Android that lets you connect up to 3 distinct sources and mix them into your stream. -
Page 4: Installation And Setup
English Installation and setup 1. Insert the supplied AA batteries into the battery compartment of iRig Stream Solo. 2. Connect the iRig Stream Solo to the host device headphone socket. You will require a suitable adaptor (not supplied) if your phone or tablet does not provide a headphone socket. If there is sufficient battery power (ie. with new batteries) the LED in the iRig Stream Solo will display green. - Page 5 3. Download and launch the app. iRig Recorder ikdownloads.com/irigstreamsolo 4. Connect any line level signal (such as from an audio mixer) to the two front RCA input sockets. To adjust the volume of the device connected to these connectors, use the volume controls of that device and the Stream...
- Page 6 English 5. Connect a TRRS headset (compatible with CTIA standard) or an iRig analog microphone to the 1/8” Headset/Phone jack. You can adjust the microphone level with the Stream Level thumbwheel and the headphone level with the HP Level thumbwheel. Alternatively, you can directly connect a pair of headphone to the Headset/Phone jack and set its level with the HP Level thumbwheel.
- Page 7 English 6. The main Level knob lets you control the overall audio input streaming level coming from the RCA line input and from the (eventually) connected microphone/headset. Check the input level meter on the app you are using to record (like iRig Recorder). This level meter should peak as high as possible but should never reach the maximum or clipping level.
- Page 8 English 9. With the Loopback function turned on, the audio that is input to the iRig Stream Solo from your host via TRRS is returned back to the host. Also in this case, the main Level knob will control the overall level that is recorded.
-
Page 9: Connection Examples
English Connection examples Here are some examples of connecting mic or line level signals to iRig Stream Solo. Connecting headset/phones 1/8" 1/8" TRRS Connect a TRRS headset (compatible with CTIA standard) or an iRig analog microphone to the 1/8” Headset/ Phone jack. -
Page 10: Connecting Line Level Signal To The Rca Inputs
English Connecting line level signal to the RCA inputs It is possible to connect any line level source to the RCA inputs. This signal can come from an mp3 player, a computer or an audio mixer. The main Stream Level thumbwheel adjusts the overall volume that is recorded. To adjust the volume of the device connected to the RCA inputs, use the volume controls of the device. -
Page 11: Using The Loopback Function
English Using the loopback function LOOPBACK LOOPBACK With the LOOPBACK function turned on, the audio that is input to the iRig Stream Solo from your host via TRRS is returned back to the host. The main Stream Level thumbwheel will control the overall level that is recorded. Troubleshooting Sound is distorted. -
Page 12: Specifications
English Specifications Common Power: 2x AA batteries Metering: Battery status LED Device Connection: captive 1/8” / 3.5mm TRRS jack - CTIA/AHJ wiring standard Dimensions: 45 x 105 x 34 mm Weight (without batteries): 74g Line input Connector: 2x RCA (unbal.) Left/Right Nominal Input Level: -10 dBV Head Room: 9 dB Input Impedance: 15 kOhms... -
Page 13: Warranty
English Warranty Please visit: www.ikmultimedia.com/warranty for the complete warranty policy. Support and more info www.ikmultimedia.com/support www.irigstreamsolo.com... -
Page 14: Regulatory
Stream Solo is trademark property of IK Multimedia Production Srl. All other product names and images, trademarks and artists names are the property of their respective owners, which are in no way associated or affiliated with IK Multimedia.
