Logic IO PNM-200 Technical Manual page 7

Technical Manual 1.00, PNM-200 Series V1
Interface
Cable
Connector
Interface
Reset Button
Stylus
Interface Cable Connector
SD card compartment
Cover

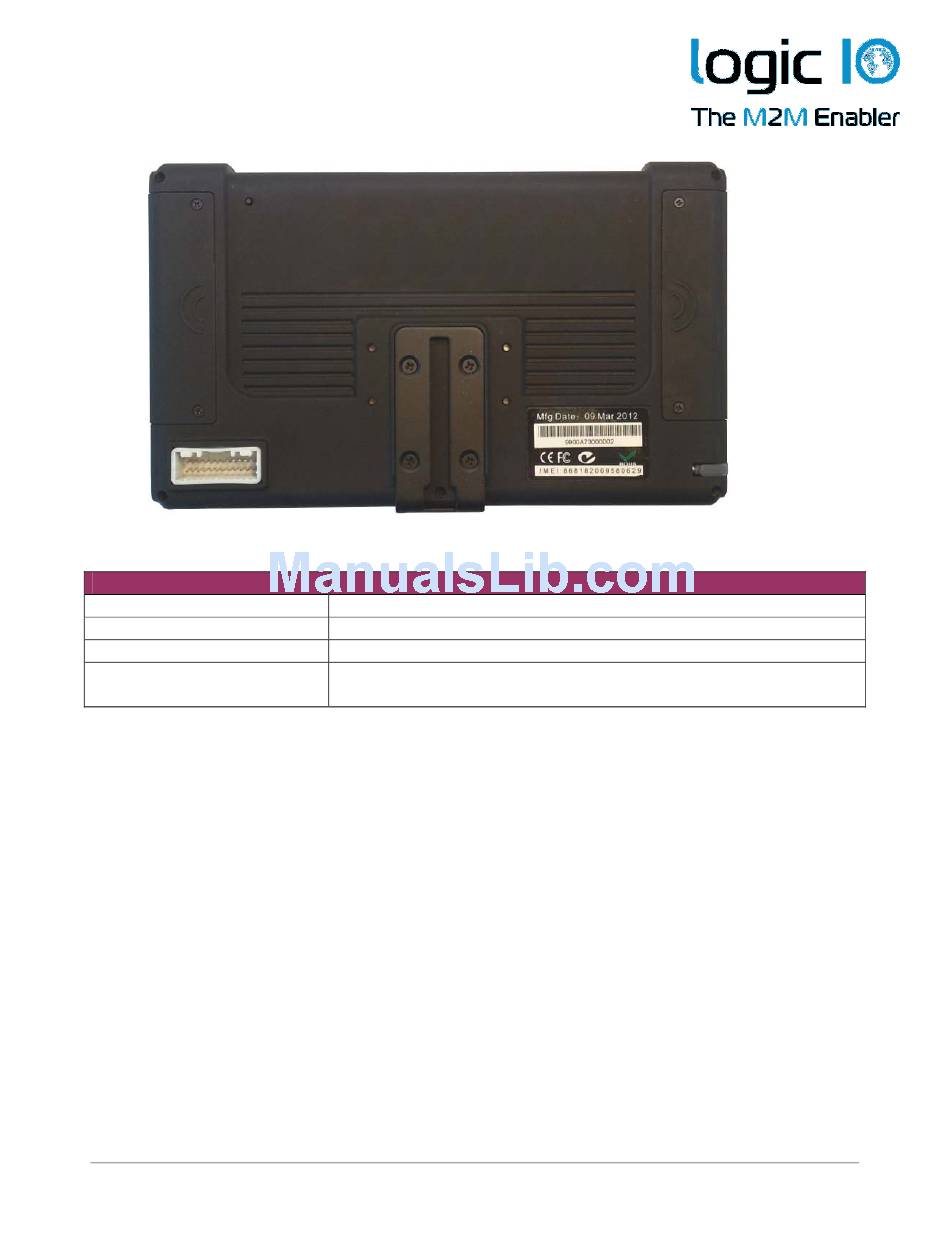

The PNM-200 series device can be reset asynchronously using the reset button, located at
the backside of the device. Please do not use the button unless it is absolutely needed.
The stylus can be used for more accurate handling of the touch screen. As the touch
screen is resistive a finger can be used, as well. The stylus is mounted tightly at the
backside of the device. It can be removed by sliding it out sideways.
Logic IO ApS.
Holmboes Allé 14
8700 Horsens
Denmark
Reset
Button
Mounting
Jack
Description
Reset button of the PNM-200 series device
Stylus for the touch screen
The connector for the PNM-200 series device interface cable
The cover for the compartment where the SD card reader is
located.
USB and
SD Card
Cover
Stylus
