4. The vertical angle and rotation of the PNM device can be adjusted using the screw
handle on the bracket.
5. Remove the protection paper of the adhesive and place the bracket on a proper
location at the dashboard. Please make sure that the bracket is mounted on the
correct location with the correct angle.
Logic IO ApS.
Holmboes Allé 14
8700 Horsens
Denmark

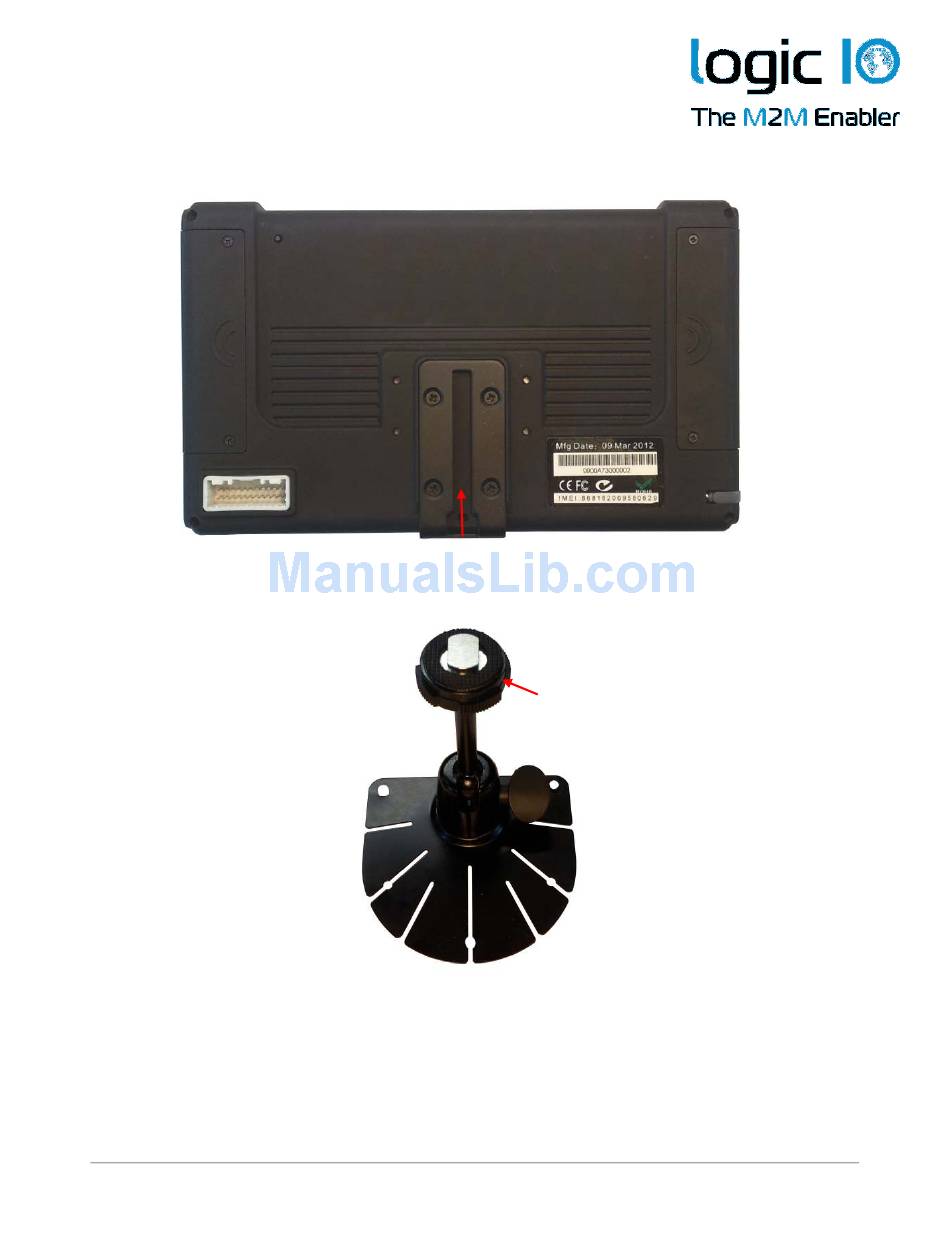

Mounting jack
Mounting jack
starting point
Securing
screw
