Interfacing to the RTCU IDE Simulator

The PNM-200 series is supported by the RTCU IDE Simulator. In order to connect the
PNM-200 series device to the PC, an optional cable with the order code RT-PNM-PC is
needed.

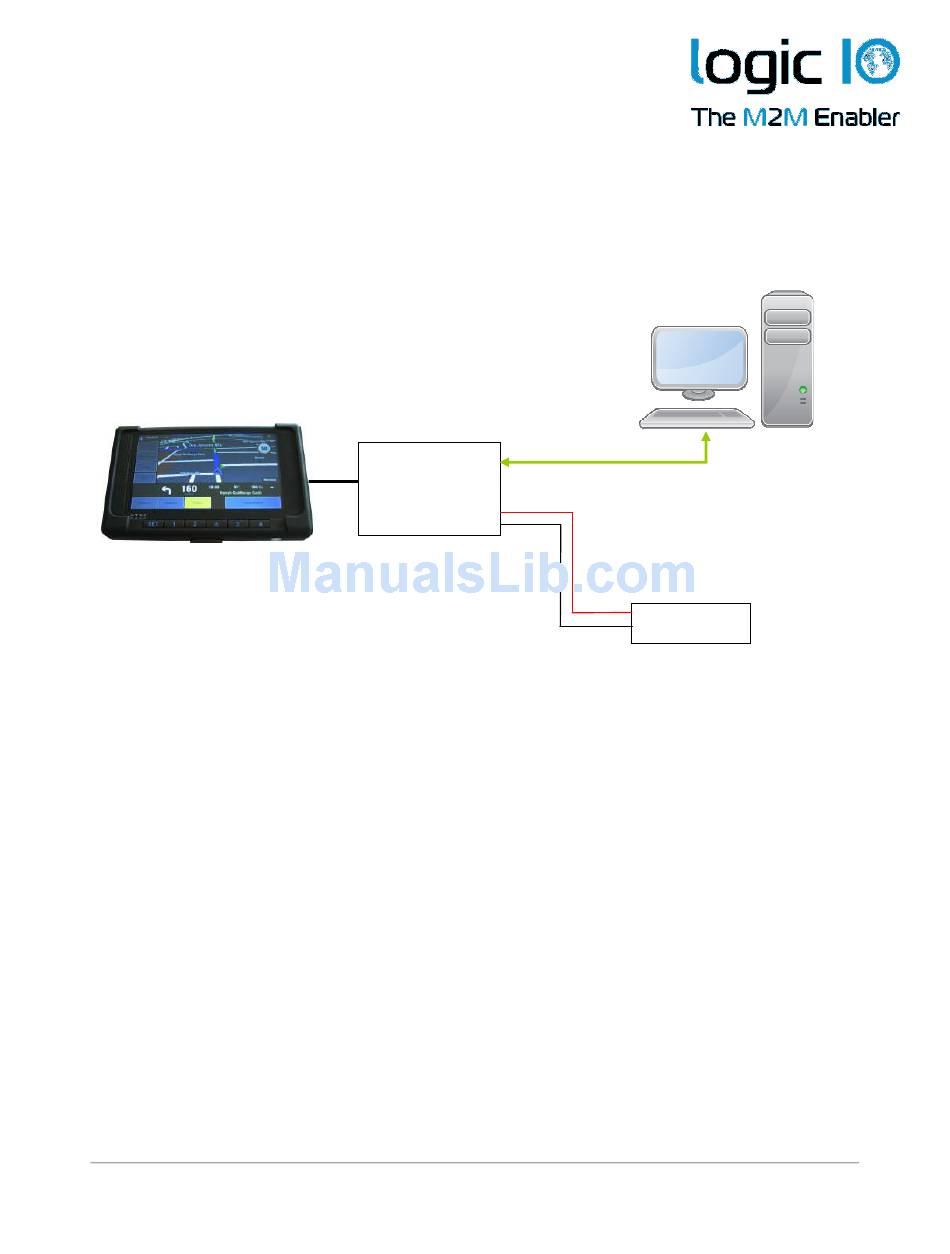

1. Connect the PNM device interface cable from the PNM device to the PNM interface
box.
2. Connect the PNM device interface to one of the available serial ports on the PC
with the PNM-200 series PC interface cable.
3. Connect the power supply to the power connector of the PNM interface box. The
power requirement is 12..36VDC. The black wire is (-) and the red wire is (+). Note
that the power to the PNM device is controlled by RTCU IDE application. The
module will not power on unless the RTCU IDE Simulator is running and the user
application enables the module. Please refer to the RTCU IDE online help for
enabling and using the NMP interface.
Logic IO ApS.
Holmboes Allé 14
8700 Horsens
Denmark
PNM interface PC interface cable
Power cable
12..36VDC
