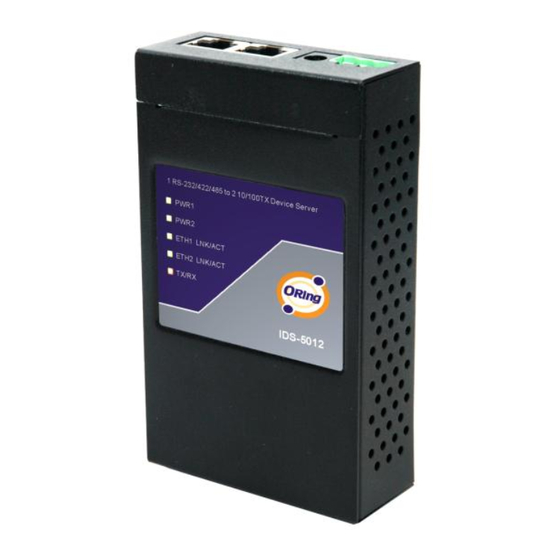

ORiNG IDS-5012 User Manual

Serial device server
Hide thumbs
Table of Contents

Advertisement

Quick Links

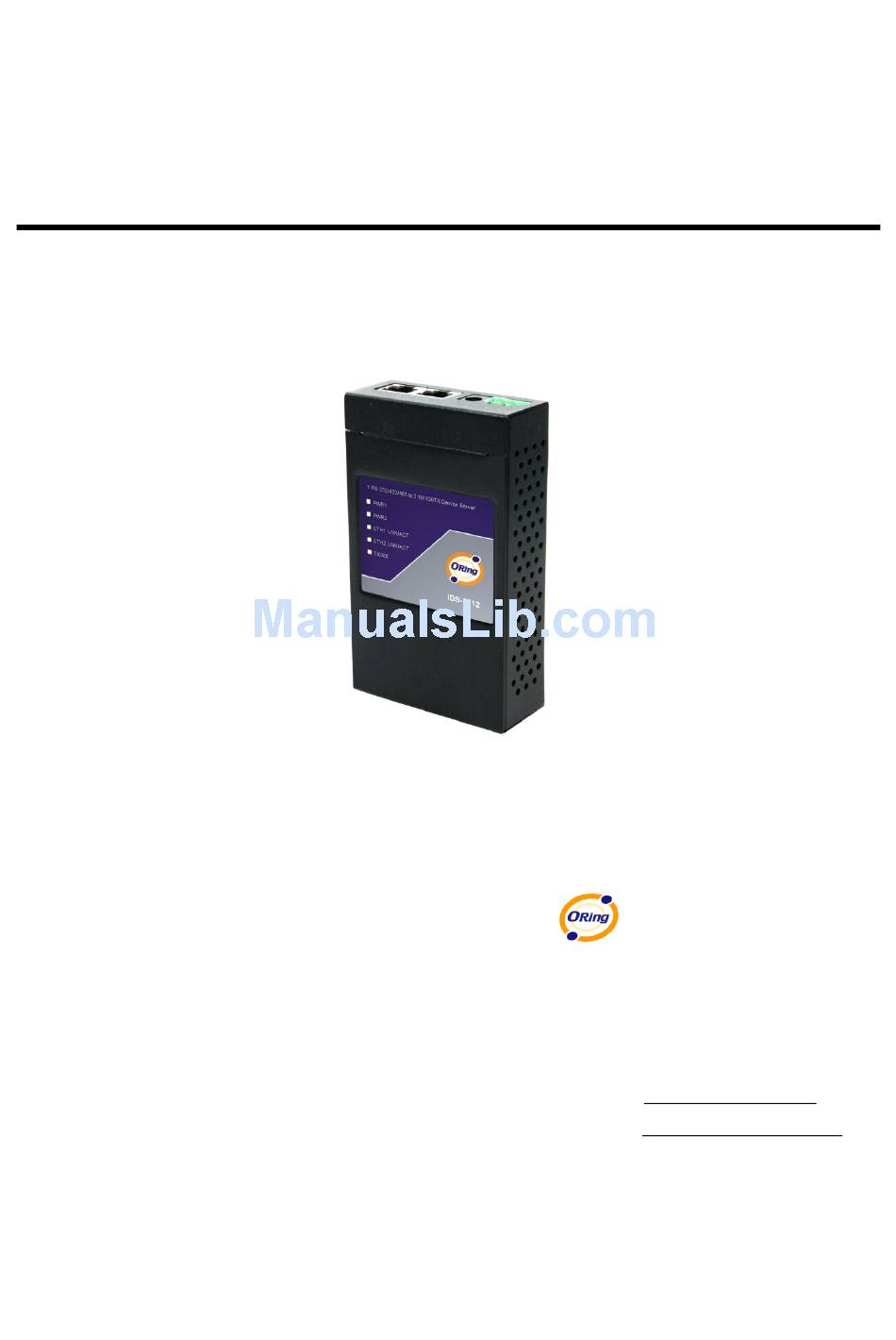

Industrial Device Server User's Manual
IDS-5012
Version 1.00
Aug 2010.
ORing Industrial Networking Corp.
4F., NO.3, Lane235, Baociao Rd.Sindian City,
Taipei County 23145 Taiwan, R.O.C.
Tel:
+ 886 2 2918 3036
Fax: + 886 2 2918 3084
Website :
www.oring-networking.com
E-mail :
support@oring-networking.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDS-5012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ORiNG IDS-5012

Summary of Contents for ORiNG IDS-5012

  • Page 1 Industrial Device Server User’s Manual IDS-5012 Version 1.00 Aug 2010. ORing Industrial Networking Corp. 4F., NO.3, Lane235, Baociao Rd.Sindian City, Taipei County 23145 Taiwan, R.O.C. Tel: + 886 2 2918 3036 Fax: + 886 2 2918 3084 Website : www.oring-networking.com E-mail : support@oring-networking.com...

  • Page 2: Table Of Contents

    Table of Content ..................... 1 ETTING TO EVICE ERVER About the IDS-5012 Serial Device Server ..................1 Software Features ........................1 Hardware Features ........................2 ........................3 ARDWARE NSTALLATION Install IDS-5012 on DIN-Rail ......................3 2.1.1 Mount IDS-5012 on DIN-Rail......................... 3 Wall Mounting Installation ......................
  • Page 3 IDS-5012 Series User’s Manual 5.2.1.4 Save/Reboot ..........................59 Configuration by SSH Console ...................... 60 5.3.1 Connect to DS ............................60 ......................... 61 ECHNICAL PECIFICATIONS...

  • Page 5: Getting To Know Your Device Server

    IDS-5012 also provides NAT pass through function so that you are able to manage IDS-5012 inside or outside the NAT router. It is easy for different IP domain to use IDS-5012. You can configure and mange the device server easily by using the windows management tool (DS-Tool).

  • Page 6: Hardware Features

    IDS-5012 Series User’s Manual  Switch Mode Supported: Daisy Chain support to reduce usage of switch ports  NAT-pass through: User can manage IDS-5012 through NAT router  PPPoE for internet connection.  Data Encryption with SSL for Security data transfer.

  • Page 7: Hardware Installation

    Installation Install IDS-5012 on DIN-Rail Each IDS-5012 has a Din-Rail kit on rear panel. The Din-Rail kit helps IDS-5012 to fix on the Din-Rail. It is easy to install the IDS-5012 on the Din-Rail: 2.1.1 Mount IDS-5012 on DIN-Rail Step 1: Slant the IDS-5012 and mount the metal spring to Din-Rail.

  • Page 8: Wall Mounting Installation

    Step 2: Figure 2-2 Wall Mounting Installation Each IDS-5012 has another installation method for you. A wall mount panel can be found in the package. The following steps show how to mount the IDS-5012 on the wall: ORing Industrial Networking Corp...

  • Page 9: Mount Ids-5012 On Wall

    IDS-5012 Series User’s Manual 2.2.1 Mount IDS-5012 on wall Step 1: Remove Din-Rail kit. Figure 2-3 ORing Industrial Networking Corp.
  • Page 10 Just like the picture shows below: Figure 2-4 The screws specification shows in the following two pictures. In order to prevent IDS-5012 from any damage, the size of screws should not be larger than the size that used in IDS-5012.
  • Page 11 IDS-5012 Series User’s Manual Step 3: Mount the combined IDS-5012 on the wall. . Figure 2-6 ORing Industrial Networking Corp.

  • Page 12: Hardware Overview

    Front Panel Figure 3-1 1. Product description of IDS-5012. 2. LED for PWR1 and system status. When the PWR1 links, the green led will be light on. 3. LED for PWR2 and system status. When the PWR2 links, the green led will be light on.

  • Page 13: Front Panel Leds

    IDS-5012 Series User’s Manual Front Panel LEDS The following table describes the labels that stick on the IDS-5012. Color Status Description DC power 1 activated. PWR1 Green/Red Indicates an IP conflict, or DHCP or BOOTP Red blinking server did not respond properly DC power 2 activated.

  • Page 14: Top Panel

    IDS-5012 Series User’s Manual Top Panel The Top panel components of IDS-5012 are shown as below: 1. Terminal block include: PWR1 (12 ~ 48V DC) 2. Power Jack include: PWR2 (12 ~ 48V DC) 3. RJ45 Ethernet Connector: 2 10/100Base-T(X) Ethernet interface.
  • Page 15 IDS-5012 Series User’s Manual 1. Reset button. 5 seconds for factory default. 2. Male DB9 connector: Serial interface of RS-232/422/485 (2 wire)(4 wire). DB9 connector RS 485 RS 485 Pin # RS 232 RS 422 ( 4 wire ) ( 2 wire )

  • Page 16: Rear Panel

    IDS-5012 Series User’s Manual Rear Panel The rear panel components of IDS-5012 are shown as below: 1. Screw holes for wall mount kit and DIN-Rail kit. 2. Din-Rail kit 3. Wall Mount kit. Figure 3-4 Rear Panel ORing Industrial Networking Corp...

  • Page 17: Cables

    Ethernet Cables The IDS-5012 has standard Ethernet ports. According to the link type, the IDS-5012 use CAT 3, 4, 5,5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications.
  • Page 18 Not used Not used Table 4-2 RJ-45 Pin Assignments The IDS-5012 supports auto MDI/MDI-X operation. You can use a straight- through cable to connect PC to IDS-5012. The following table below shows the 10BASE-T/ 100BASE-TX MDI and MDI-X port pin outs.

  • Page 19: Management Interface

    IDS-5012 Series User’s Manual anagement Interface DS-Tool DS-Tool is a powerful Windows utility for DS series. It supports device discovery, device configuration, group setup, group firmware update, monitoring functions...etc. It is easy for you to install and configure devices over the network.
  • Page 20 IDS-5012 Series User’s Manual When installation complete successfully, then click “OK”. Step 2: Figure 5-2 Step 3: Check for your selection. Figure 5-3 ORing Industrial Networking Corp...

  • Page 21: Using Ds-Tool

    IDS-5012 Series User’s Manual 5.1.2 Using DS-Tool 5.1.2.1 Explore device servers DS-Tool will broadcast to the network and search all available DS devices in the network. The default IP address of device is “192.168.10.2”, and selects the searching device you wish to use and press “Add” button.

  • Page 22: Configure Device Servers

    IDS-5012 Series User’s Manual 5.1.2.2 Configure device servers General settings This page includes the setting of device name, SNTP server and Auto IP Report. Figure 5-5 General settings The following table describes the labels in this screen. Label Description You can set the device name or related information. By clicking “Locate On” button you Device Name/location can locate the serial server’s position.
  • Page 23 IDS-5012 Series User’s Manual By Clicking the “Get current Host” button you will get your local IP, and then set the Set Auto IP Report Report interval time. The device server will report its status periodically. Table 5-1 General settings At IP collection option show the device server status.

  • Page 24: Network Setting

    IDS-5012 Series User’s Manual You can set the password to prevent unauthorized access from your server. Factory Password setting default is no password. Table 5-2 Security Network Setting Device can connect the Network by wire. You must assign a valid IP address for DS before attached in your network environment.
  • Page 25 IDS-5012 Series User’s Manual The following table describes the labels in this screen. Label Description Using DHCP/BOOTP IP Address automatically assigned by a DHCP server in your network. Static IP Address Manually assigning an IP address. All devices on the network must have the same subnet mask to communicate on the Subnet Mask network.
  • Page 26 IDS-5012 Series User’s Manual Figure 5-8 PPPoE Setting DDNS The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname, allowing your computer to be more easily accessed from various locations on the Internet. ORing Industrial Networking Corp...
  • Page 27 IDS-5012 Series User’s Manual Figure 5-10 DDNS Setting The following table describes the labels in this screen. Label Description Choose the DDNS service Provider Service Provider You must first apply an account from the DDNS service Provider such as www.dyndns.org, Hostname then register with the dynamic DNS service.
  • Page 28 IDS-5012 Series User’s Manual Notification Specify the events that should be notified to the administrator. The events can be alarmed by E-mail, SNMP trap, or system log. Figure 5-11 Notification The following table describes the labels in this screen. Label...
  • Page 29 IDS-5012 Series User’s Manual Apply Apply current setting. Apply and Save Apply and save current setting. Table 5-5 Notification Management Figure 5-11 Management The following table describes the labels in this screen. Label Description To enable management from Web. Click “Goto Web Management” button to Web Management Enable access web.

  • Page 30: Upgrade Firmware

    IDS-5012 Series User’s Manual SNMP Management Enable To enable management by SNMP. SNMP Management Settings To configure SNMP related settings. Table 5-6 Management Upgrade Firmware Figure 5-12 Upgrade Firmware The following table describes the labels in this screen. Label Description...
  • Page 31 IDS-5012 Series User’s Manual Save/Load Figure 5-13 Save / Load The following table describes the labels in this screen. Label Description Save Configuration to Save current configuration into flash memory. Flash Load default configuration except the network settings. If you want to load all factory Load Default default, you need to press “Reset”...

  • Page 32: Configure Serial Port

    IDS-5012 Series User’s Manual Export Configuration Exported current configuration to a file to backup the configuration. Table 5-8 Save / Load 5.1.2.3 Configure serial port Serial Settings Figure 5-14Serial Settings ORing Industrial Networking Corp...
  • Page 33 IDS-5012 Series User’s Manual The following table describes the labels in this screen. Label Description Port Alias Remark the port to hint the connected device. Interface RS422 / RS485(2-wires) / RS485(4-wires) 110bps/300bps/1200bps/2400bps/4800bps/9600bps/19200bps/ Baud rate 38400bps/57600bps/115200bps/230400bps/460800bps Data Bits 5, 6, 7, 8 Stop Bits 1, 2 (1.5)
  • Page 34 IDS-5012 Series User’s Manual Force TX interval time is to specify the timeout when no data has been transmitted. Force TX Interval Time When the timeout is reached or TX buffer is full (4K Bytes), the queued data will be sent.
  • Page 35 IDS-5012 Series User’s Manual The following table describes the labels in this screen. Label Description Encryption with SSL Use SSL to encrypt data. Map Virtual COM Select a Virtual COM Name to map on. The number of Max connection can support simultaneous connections are 5, default Max Connection values is 1.
  • Page 36 IDS-5012 Series User’s Manual Figure 5-16 TCP Server mode The following table describes the labels in this screen. Label Description Encryption with Use SSL to encrypt data. Data Port Set the port number for data transmission. Telnet Negotiation Full Telnet command / symbol compatible Auto Scan Scan the data port automatically.
  • Page 37 IDS-5012 Series User’s Manual function. Factory default is 0. The number of Max connection can support simultaneous connections are 5, default Max Connection values is 1. Table 5-11 TCP Server mode Service Mode – TCP Client Mode In TCP Client Mode, device can establish a TCP connection with server by the method you have settled (Startup or any character).
  • Page 38 IDS-5012 Series User’s Manual The following table describes the labels in this screen. Label Description Encryption with SSL Use SSL to encrypt data. Destination Host Set the IP address of host. Port Set the port number of data port. When serial port stops data transmission for a defined period of time (Idle...
  • Page 39 IDS-5012 Series User’s Manual Service Mode – UDP Mode Compared to TCP communication, UDP is faster and more efficient. In UDP mode, you can Uni-cast or Multi-cast data from the serial device server to host computers, and the serial device can also receive data from one or multiple...
  • Page 40 IDS-5012 Series User’s Manual Figure 5-19 Notification The following table describes the labels in this screen. Label Description When DCD (Data Carrier Detect) signal changes, it indicates that the modem DCD changed connection status has changed. Notification will be sent.

  • Page 41: Configuration By Web Browser

    IDS-5012 Series User’s Manual In TCP Server/Client Mode, when the device lost the TCP link, this event will be trigger. Port disconnected In Virtual COM Mode, When Virtual COM is not available, this event will be trigger. A notification will be sent.
  • Page 42 IDS-5012 Series User’s Manual Step 3: Input the name and password, then click “OK”. Figure 5-21 Certificate *Only if password is set. Step 4: The system information will be shown as below. Figure 5-21 System information ORing Industrial Networking Corp...

  • Page 43: System

    IDS-5012 Series User’s Manual 5.2.1.1 System Time (SNTP) Figure 5-22 Time (SNTP) The following table describes the labels in this screen. Label Description Name You can set the name of DS. SNTP Enable the SNTP server. Time zone After you set the SNTP enable, select the time zone you located.
  • Page 44 IDS-5012 Series User’s Manual IP Configuration You must assign a valid IP address for DS before attached in your network environment. Your network administrator should provide you with the IP address and related settings. The IP address must be unique and within the network (otherwise, DS will not have a valid connection to the network).
  • Page 45 IDS-5012 Series User’s Manual The following table describes the labels in this screen. Label Description DHCP/BOOTP Obtain the IP address automatically from DHCP server. Static IP Address Assigning an IP address manually. Subnet Mask Set the subnet mask to communicate on the network.
  • Page 46 IDS-5012 Series User’s Manual Figure 5-24 PPPoE setting. DDNS Configuration The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname, allowing your computer to be more easily accessed from various locations on the Internet.
  • Page 47 IDS-5012 Series User’s Manual Figure 5-26 DDNS setting The following table describes the labels in this screen. Label Description Service Provider Choose the DDNS service Provider Hostname You must first apply an account from the DDNS service Provider such as www.dyndns.org, then register with the dynamic DNS service.
  • Page 48 IDS-5012 Series User’s Manual Authentication You can set the password to prevent unauthorized access from network. Input the “Old password” and “New password” to change the password. Factory default is no password. Figure 5-27Authentication ORing Industrial Networking Corp...

  • Page 49: Port Serial Setting

    IDS-5012 Series User’s Manual 5.2.1.2 Port serial setting Serial configuration Figure 5-28 Serial configuration The following table describes the labels in this screen. Label Description Port Alias Remark the port to hint the connected device. Interface RS422 / RS485(2-wires) / RS485(4-wires)
  • Page 50 IDS-5012 Series User’s Manual Data Bits 5, 6, 7, 8 Stop Bits 1, 2 (1.5) Parity No, Even, Odd, Mark, Space Flow Control No, XON/XOFF, RTS/CTS, DTR/DSR Force TX interval time is to specify the timeout when no data has been transmitted.
  • Page 51 IDS-5012 Series User’s Manual Port Profile Figure 5-29 Port Profile The following table describes the labels in this screen. Label Description Flush Data Buffer After: The received data will be queued in the buffer until all the delimiters are matched.
  • Page 52 IDS-5012 Series User’s Manual Flush Data Buffer After: The received data will be queued in the buffer until all the delimiters are matched. When the buffer is full (4K Bytes) or after "flush E2S data buffer" timeout, the data will also be sent.
  • Page 53 IDS-5012 Series User’s Manual Figure 5-30 Virtual COM mode The following table describes the labels in this screen. Label Description Data Encryption Use SSL to encrypt data. When serial port stops data transmission for a defined period of time (Idle...
  • Page 54 IDS-5012 Series User’s Manual Service Mode – TCP Server Mode In TCP Server Mode, DS is configured with a unique Port combination on a TCP/IP network. In this case, DS waits passively to be contacted by the device. After the device establishes a connection with the serial device, it can then proceed with data transmission.
  • Page 55 IDS-5012 Series User’s Manual The following table describes the labels in this screen. Label Description Data Encryption Use SSL to encrypt data. Telnet Negotiation Full Telnet command / symbol compatible TCP Server Port Set the port number for data transmission.
  • Page 56 IDS-5012 Series User’s Manual Figure 5-32 TCP client mode The following table describes the labels in this screen. Label Description Data Encryption Use SSL to encrypt data. Destination Host Set the IP address of host and the port number of data port. .
  • Page 57 IDS-5012 Series User’s Manual Connect on Startup The TCP Client will build TCP connection once the connected serial device is started. Connect on Any The TCP Client will build TCP connection once the connected serial device starts to send Character data.

  • Page 58: Management

    IDS-5012 Series User’s Manual 5.2.1.3 Management Access IP Control Access IP Control Settings allow you to add or block the remote host IP addresses to prevent unauthorized access. If host’s IP address is in the accessible IP table, then the host will be allowed to access the DS. You can choose one of the following cases by setting the parameter.
  • Page 59 IDS-5012 Series User’s Manual Figure 5-34 Access IP ORing Industrial Networking Corp.
  • Page 60 IDS-5012 Series User’s Manual SMTP/SNMP Conf Email Server configuration includes the mail server’s IP address or domain. If the authentication is required, specify your name and password. There are 4 Email addresses that you can specify to receive the notification.
  • Page 61 IDS-5012 Series User’s Manual System Event Conf. Specify the events that should be notified to the administrator. The events can be alarmed by E-mail, SNMP trap, or system log. Figure 5-36 SMTP / SNMP conf The following table describes the labels in this screen.
  • Page 62 IDS-5012 Series User’s Manual sending E-mail, log information or an SNMP trap after booting. This refers to restart the computer without turning the power off. When performing a Software Reset (Warm warm start, DS will automatically send an E-mail, log information or SNMP trap after Start) reboot.

  • Page 63: Save/Reboot

    IDS-5012 Series User’s Manual 5.2.1.4 Save/Reboot Figure 5-37 Save / Reboot The following table describes the labels in this screen. Label Description Load default configuration except settings of Network. If you want load all factory default, Factory Default you should press “Reset” button about the five seconds on the device (Hardware restore).

  • Page 64: Configuration By Ssh Console

    IDS-5012 Series User’s Manual Upgrade Firmware Upgrade to a new firmware with specified file. Reboot Device Reboot the device server (warm start). Table 5-23 Save / Reboot Configuration by SSH Console 5.3.1 Connect to DS You can use SSH Tool (e.g., PUTTY) to access SSH console of DS. The SSH console interface is shown below.

  • Page 65: Technical Specifications

    IDS-5012 Series User’s Manual echnical Specifications Network Interface 2x 10/100Base-T(X) which support Redundant Dual Ethernet or Ethernet Switch Mode support. Auto-recover less than 10ms connector RJ-45 Protection Built-in1.5KV magnetic isolation ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP Protocols...
  • Page 66 IDS-5012 Series User’s Manual did not respond properly. 2) Green On: Power is on and functioning normally. Green Blinking: Located by Administrator. ETH1(2) Link / ACT: Amber ON/Blinking: 10 Mbps Ethernet Green ON/Blinking:100 Mbps Ethernet Serial TX / RX LEDS: Red: Serial port is receiving data Green: Serial port is transmitting data.
  • Page 67 IDS-5012 Series User’s Manual TCP server / TCP Client / UDP VCOM Driver Windows NT/2000/XP/2003/VISTA Web HTTPS console, SSH console, DS-Tool for Windows Configuration NT/2000/XP/VISTA Environmental Operating Temperature -10 to 60°C (14 to 140°F) Operating Humidity 5% to 95%(Non-condensing) Storage Temperature -40 to 85°C (-40 to 185°F)
