Serial Number:

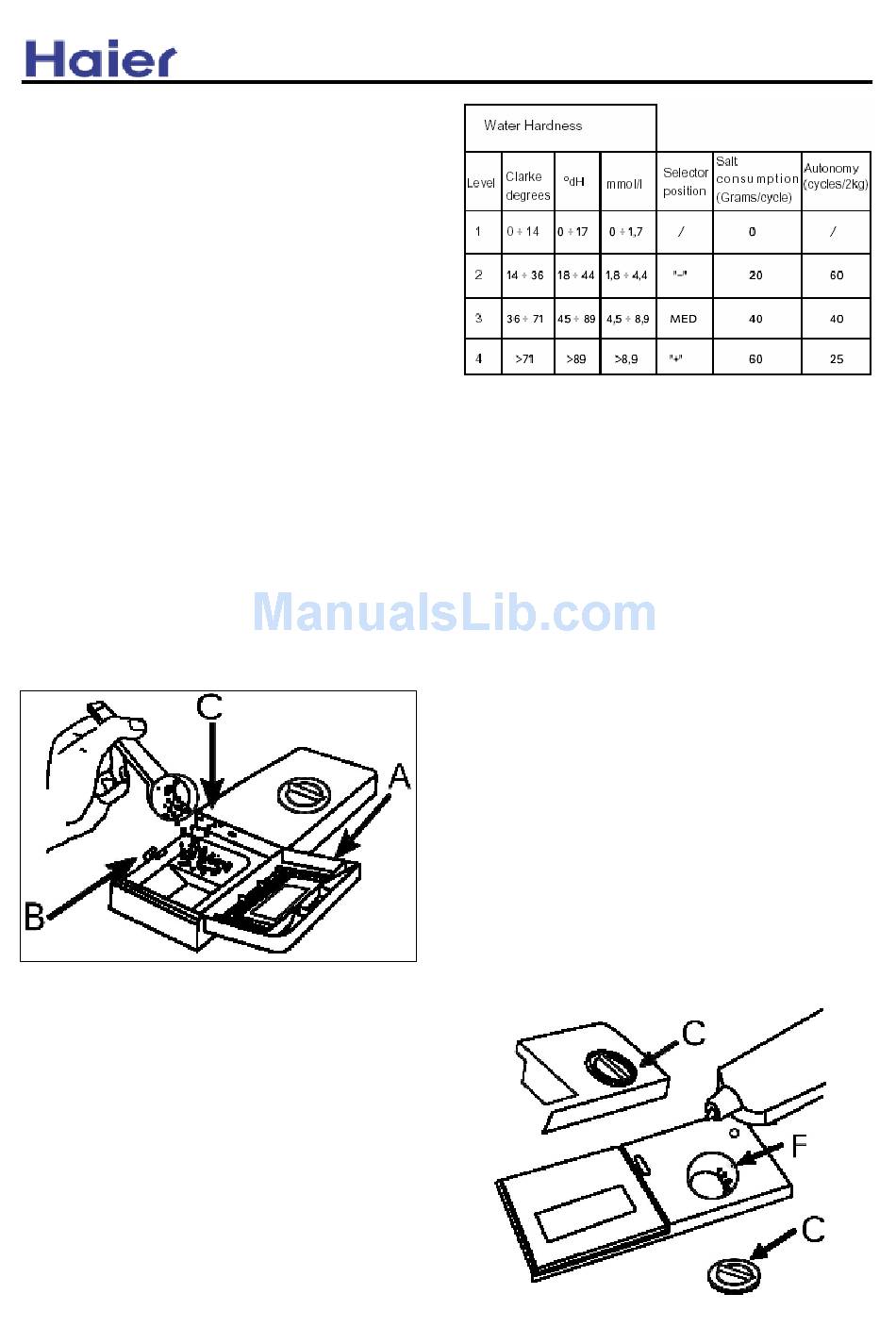

To adjust salt consumption,proceed as follows:
- Unscrew the cap from the salt container;
- There is a ring on the container with an arrow
on it (see figure to
rotate the ring in the anticlockwise direction
from the "-" setting towards the "+" sign,
based on the hardness of the water being
used.It is recommended that adjustments be
made in accordance with the following scheme:
Detergent
Detergent specifically intended for use with dishwashers must be used.The dispenser must be refilled
before the start of each wash cycle following the instructions provided in the "Wash Cycle Table." The
detergent dispenser is located on the inside panel the door.
Loading the detergent
To open the "A" cover on the dispenser,press the "B" button.The detergent for the wash cycle should be
poured into the "C" compartment.
After the detergent has been placed in the dispenser, close the cover and press down until it clicks in
place.
Notice:To facilitate closing the cover, remove any excess detergent on the edges of the dispenser.
dose adjustor ,located beneath the "C" cap, with a
screwdriver.There are 6 different settings; the normal
dosage setting is 3.
Important
Proper dosage of the rinse aid improves drying.
If drops of water remain on the dishes or spotting
occurs,the dosage adjustor should be turned to a
higher setting.
If the dishes have white streaks,turn the dosage
adjustor to a lower setting.
Version:00.00
Dishwasher
the side), If necessary,
Model: DW12-EFM
Rinse Aid
This product makes dishes sparkle and helps them to
dry without spotting.The dispenser is located on the
inside panel of the door and should be filled after every
80 wash cycle (or when the rinse aid indicator light
comes on for those models with this feature).
Loading The Rinse Aid
To open the dispenser,turn the "C" cap in the
anti-clockwise dierction and then pour in the rinse
aid,making sure not to overfill.The amount of rinse aid
used for each cycle can be regulated by turning the "F"
Edition: 2005-7
12/23
