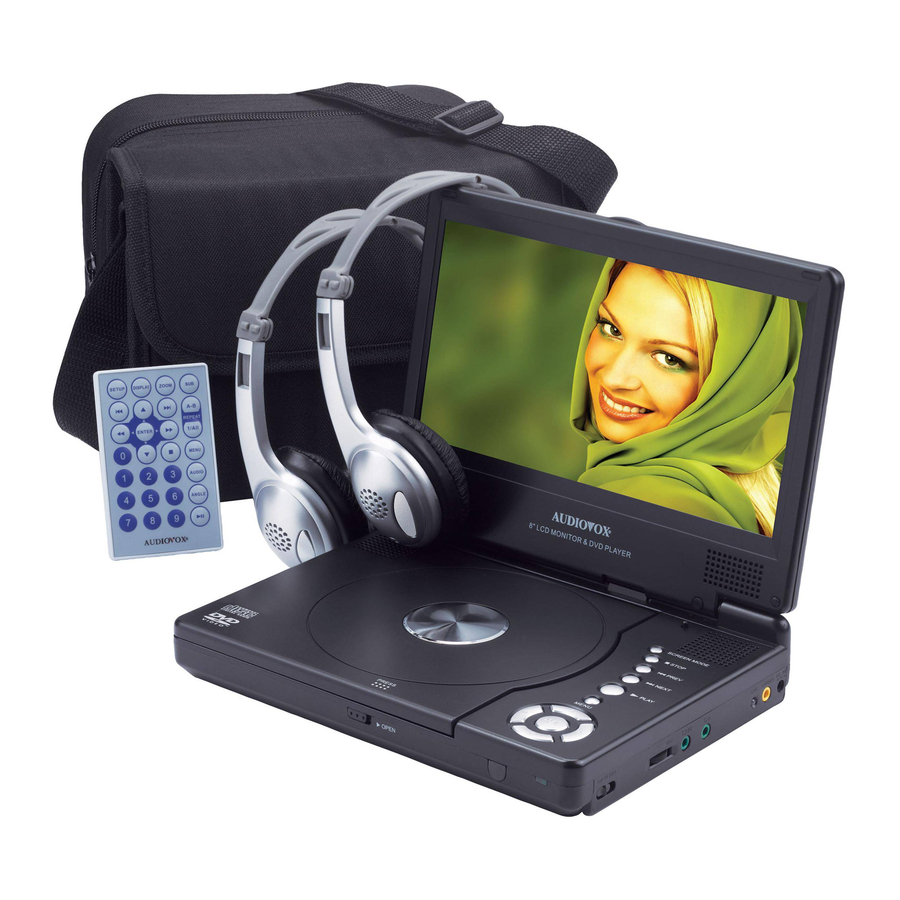

  • Page 1 D1809PK 8” LCD MONITOR WITH DVD PLAYER...
  • Page 2 In accordance with FCC requirements, changes or modifications not expressly approved by Audiovox Electonics Corp. could void the user’s authority to operate this product. This device generates and uses radio frequency(RF) energy, and if not installed and used properly, this equipment may cause interference to radio and television reception.If this equipment does cause interference...
  • Page 3 This power unit is intended to be correctly oriented in a vertical or floor mount position. WARNING: TO PREVENT FIREOR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCTTO RAIN OR MOISTURE. Notice: This Product incorporates copyright protection technology that is protected by method claims of certain U.S.

  • Page 4: Table Of Contents

    Content A. Introduction ... 5 B. Cautions and Warnings ... 5 C. Contents ...7 D. Powering and Installation ... 8 E. Vehicle Installation ..9 F. Controls, Indicators, and Connectors..10 G. Loading and Playing a Disc...11 H. Setup...12 I.

  • Page 5: Introduction

    A. Introduction Thank you for selecting the D1809PK portable DVD player. The main features include a 8" Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor and a DVD player. The unit applies the latest state of the art electronics and is designed for use in hotels, offices home or vehicle.
  • Page 6 Keep the unit away from an open flame such as fire, candle etc. Built-in battery is not user-serviceable. Contact Audiovox Customer Service for assistance. In order to protect the environ- ment please dispose of the battery properly.

  • Page 7: Contents

    Canada). Only DVD discs that have regional codes of 1 or ALL (for all regions) can be played by your player. Precautions When Watching When using your Portable DVD player donot sit or stand too close to the screen. Have a Blast-Just Not in your eardrums! Make sure you turn down the volume on the unit before you put on headphones.

  • Page 8: Powering And Installation

    D. Powering and Installation 1. Powering the System Indoors (Refer to Figure 1) Plug one end of the AC to DC adapter into the DC 9-12V jack on the right side of the main unit, then plug the other end into the 100- 240V AC power receptacle.

  • Page 9: Vehicle Installation

    Vehicle Headrest Vehicle Seat Back 1). Unfold the carry bag, and place the DVD player on the bag beneath the elastic straps. Ensure that the unit’s corners are secured by the elastic straps. 2). Secure the upper portion of the carry bag to headrest support bars using the headrest strap.

  • Page 10: Controls, Indicators, And Connectors

    F. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 3) 1) LCD Panel Shut Off Switch 2) Wide Screen Button 3) Stop Button 4) Previous Button 5) Next Button 6) Play/Pause Button 7) Menu Button 8) Up Button 9) Right Button 10) OK Button 11) Down Button...

  • Page 11: Loading And Playing A Disc

    19) PLAY/PAUSE Button G. Loading and Playing a Disc a. After connecting power to the unit, apply power to the DVD player with the POWER ON/OFF switch. The power indicator will light. b. Open the disc tray by sliding OPEN DOOR switch and place a disc into the tray with the label side facing up.

  • Page 12: Setup

    H. Setup Press SETUP button to display the Main screen of the SETUP Menu on the screen. Press SETUP button again to exit the SETUP Menu and the unit will resume it’s last playback mode. 1) Press SETUP button, the ‘GENERAL SETUP PAGE’ will display on screen.
  • Page 13 b) Select ‘ANGLE MARK’ using the DOWN button, and then press the ENTER button to enter the submenu. Choose Angle Mark on or off using the UP/DOWN buttons and then press ENTER button to confirm the setting. Press the LEFT button to return. Angle Mark Screen Display * ON: The screen will show the angle mark icon.
  • Page 14 Screen Saver Screen Display *ON: Enables screen saver. *OFF: Disables screen saver. NOTE: The DVD player will enter the Screen Saver mode after approximately five minutes if the same image remains on the screen. e) Select ‘LAST MEMORY’ by using the DOWN button, and then press the RIGHT button to enter the submenu.
  • Page 15 2) Select ‘VIDEO’ by using the LEFT/RIGHT buttons, press ENTER button to enter the VIDEO SETUP PAGE. Video Quality Setup Screen Display a) Select ‘BRIGHTNESS’ by using the UP or DOWN buttons ,then press ENTER button. Adjust the Brightness by pressing the LEFT or RIGHT buttons.
  • Page 16 3) Select ‘Password’ using the LEFT or RIGHT buttons, then press the ENTER button to enter the submenu. Password Setup Page Screen Display Press ENTER button twice to enter the PASSWORD CHANGE PAGE. Input the Old Password or the Default Password, the New Password, and the Confirmed New Password.

  • Page 17: Preferences Page

    4) With no disc inside the player select ‘PREFEREN’ using the LEFT or RIGHT buttons, then press ENTER button to enter the PREFERENCES PAGE . Preference Screen Display a) Select ‘AUDIO’ using the DOWN button, then press ENTER button to enter the submenu. Select the audio language you desire using the UP or DOWN buttons, then press ENTER button to confirm the setting.
  • Page 18 b) Select ‘SUBTITLE’ using the DOWN button, then press ENTER to enter the submenu. Select the desired subtitle lan- guage or SUBTITLE OFF using the UP or DOWN buttons, then press ENTER button to confirm the setting. Press LEFT to return. Preference Subtitle Language c) Select ‘DISC MENU’...
  • Page 19 d) Select ‘PARENTAL’ using the DOWN button, then press ENTER button to enter the submenu. Parental Preference Screen Display Select the parental level you desire using the UP or DOWN but- tons for discs with lock-out function or multiple rating levels. These are listed from the lowest level (KID SAFE) to the highest level (ADULT).

  • Page 20: Basic Operation

    I. Basic Operation POWER OPEN PLAY PAUSE STOP NEXT PREVIOUS FORWARD REVERSE LEFT/RIGHT/UP/DOWN ENTER NUMBERS MENU REPEAT DISPLAY ANGLE SUBTITLE AUDIO ZOOM SETUP Turn the unit on/off Remove/load the disc Start Play/Execute item or setting Still Picture (1 time) Stop at the present playing point / (2 times) Stop playback of the DVD Go to the next chapter, track or scene dur- ing playback...

  • Page 21: Menu

    J. Menu A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc. Press MENU during playback to display the menu.
  • Page 22 c. Press DISPLAY button a third time to display the Elapsed Time for the chapter. The heading will disappear automatically in 3 seconds. Chapter Elapsed Time Screen Display d. Press DISPLAY button a fourth time to display the Remaining Time for the chapter. The heading will disappear automatically in 3 seconds.
  • Page 23 2. Angle During playback of a disc, press ANGLE button to display the avail- able angles for discs containing multi-angles*, with the current angle number (1) and the total number of angles (2) displaying. Press ANGLE button to select another angle, then press it again to exit and return to the normal viewing angle.
  • Page 24 4. Audio During playback press AUDIO button to select the audio language you desire*, with the current Audio Channel Number (1) and the total number of Audio Channels (2) displayed. Press AUDIO again to select another audio language. The audio display will disappear automatically if the AUDIO button is not pressed within 3 seconds.
  • Page 25 6. A-B Repeat a. During playback press A-B button to set the Starting Point A. A-B Repeat Starting Point Screen Display b. Press A-B button a second time to set the Ending Point B and the player will repeatedly play the part between Point A and Point B.
  • Page 26 7. Repeat a. During playback press 1/ALL button once to repeatedly play the current chapter. Chapter Repeat ON Screen Display b.During playback press 1/ALL button again to repeatedly play the current title. Title Repeat ON Screen Display c. During playback press 1/ALL button a third time to repeat all chapters and titles.

  • Page 27: Playing Audio Cds

    d. Press 1/ALL button a fourth time, to resume normal playback. 8. Forward/Reverse Scan a. During playback press uu to scan forward at 2x, 4x, 8x,16x, 32x and normal speed. b. During playback press tt to scan backward at 2x, 4x, 8x,16x, 32x and normal speed.
  • Page 28 1. Using the Repeat Feature The default mode for the Repeat feature is OFF. Pressing 1/ALL button consecutively changes the repeat options: • Repeat one- repeats the track that is playing. • Repeat All - repeats the disc that is playing. •...

  • Page 29: Playing Jpeg Files

    M. Playing JPEG Files 1) Load a JPEG disc onto the disc tray. 2) A screen showing folders or picture files contain on the disc will be displayed automatically after loading. 3) You can select a picture you desire by pressing UP, DOWN, LEFT, RIGHT and ENTER buttons.

  • Page 30: Specifications

    2. Connecting Headphones Simply plug the headphones into either Headphone jack 1 or Headphone jack 2 on the right side of the DVD Player. (Refer to Figure 6) Plugging into Headphone jack 1 will disable the internal speakers. O. Specifications...

  • Page 31: Rechargeable Built-In Battery

    3. To charge the battery, please connect the power jack directly into the DVD Player and leave connected until the red power indicator turns green. Using and Maintaining Your Rechargeable Batteries 1.

  • Page 32: Troubleshooting

    No forward or reverse scan SOLUTION • Make sure the DVD player is connected properly. Make sure all cables are securely inserted into the appropriate jacks. • You can’t advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.
  • Page 33 • Check the type of disc you put into disc tray. This DVD player only plays DVDs and audio CDs. • Your DVD player has been designed to process regional management information that is stored on DVD discs. The regional code for your player is 1 (The U.S.,U.S.

  • Page 34: Day Limited Warranty

    90 DAY LIMITED WARRANTY Applies to Audiovox Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within ninety (90) days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 35 © 2009 Audiovox Electronics Corporation Printed in China 128-8576 (V 1.0)
