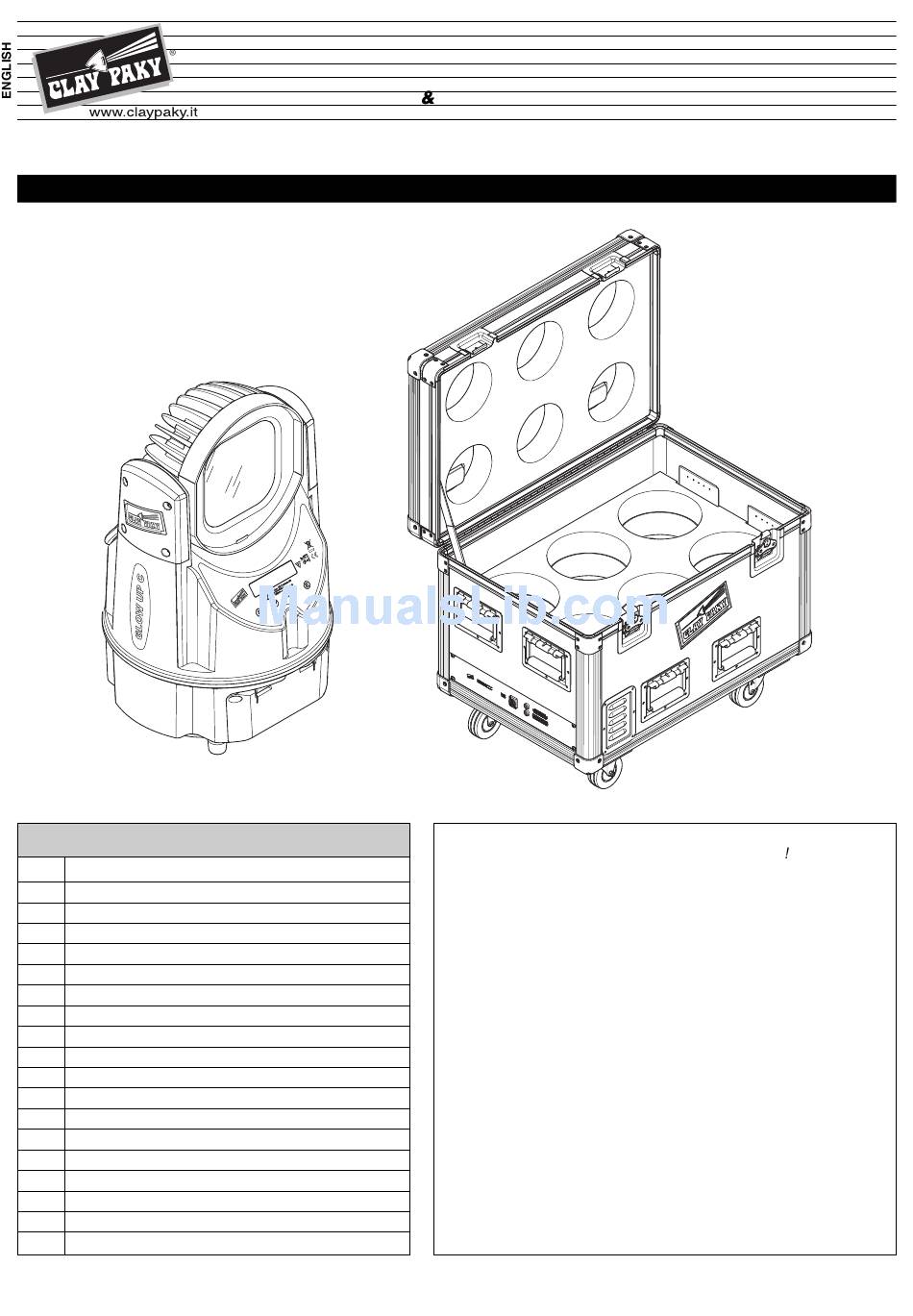

Clay Paky C C71050 Instruction Manual

Glow up & flight case
Hide thumbs Also See for C C71050:

Advertisement

Quick Links

CONTENTS
Page
Contents
2
3
4
4
5
6
8
8
9
10
Main menu
15
16
16
17
19
20
20
21
FLIGHT CASE
INSTRUCTIONS MANUAL
Congratulations on choosing a Clay Paky product
We thank you for your choice. Please note that this product,
as all the others in the rich Clay Paky range, has been
designed and manufactured with total quality to ensure
excellent performance and best meet your expectations and
requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference.
It is essential to know the information and comply with the
instructions given in this manual in order to ensure the fitting is
installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the
fitting or to the other property or persons deriving from
installation, use and maintenance that have not been carried
out in conformity with this instructions manual, which must
always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instructions manual at any time and
without prior notice.
1
C
C71050
TW
C71055
W
C71060
F21230

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C C71050 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clay Paky C C71050

  • Page 1: Table Of Contents

    Contents We thank you for your choice. Please note that this product, Safety information GLOW UP as all the others in the rich Clay Paky range, has been Safety information FLIGHT CASE designed and manufactured with total quality to ensure...
  • Page 2: Safety Information Glow Up

    SAFETY INFORMATION GLOW UP • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails, the fitting falls as little as possible.
  • Page 3: Safety Information Flight Case

    <Nessuno(a)> SAFETY INFORMATION FLIGHT CASE • Installation Ensure that the Flight Case, when used for charging Glow UP, is positioned at a distance of 15 cm from any surface or wall, to allow proper ventilation. • Maximum ambient temperature Do not operate the device if ambient temperature (Ta) exceeds 40°C. •...
  • Page 4: Unpacking And Preparation

    UNPACKING AND PREPARATION IST002/001 OPTIONAL ACCESSORY C71110 Packing content - Fig. 1 REMOVAL OF THE PROTECTIVE FILM GLOW UP...
  • Page 5: Installation And Start-Up

    INSTALLATION AND START-UP Projector installation - Fig. 3 The projector can be installed on the floor resting on specific rubber feet, on a truss, on the ceiling or wall. WARNING: the safety chain must be installed except when the projector rests on the floor. (Code 105015/801 available upon request). This must be secured to the projector support structure and then hooked to the fastening point at the centre of the base.
  • Page 6: Control Panel

    Switching on the projector - Fig. 7 The projector immediately turns on when the power cord is plugged in or, if used in battery mode, by pressing and holding down keys several seconds. Clay Paky GLOW UP Address xxx BAT xx GLOW UP Software release x.x x...
  • Page 7 When GlowUp is in idle status the information page will appear on the display: DMX Address Time or percent remaining of the battery charge ADDR 001 BAT 40 Yy DMX C Operating mode Warning Radio Link status (see page 14) W42 (radio board not found) (Wireless or Wired) W43 (radio board not interact)
  • Page 8: Shortcut Keys Menu

    SHORTCUT KEYS MENU By pressing the ENTER key and UP , the DMX address setting function can be quickly accessed. By pressing the ENTER key and DOWN , it is possible to assign the desired command to the GlowUp Radio module: 1) Use the UP and DOWN keys to select one of the following settings:...
  • Page 9: Preset Colors For Stand Alone "Glowup C

    PRESET COLORS FOR STAND ALONE “GLOWUP C” Bit value Colour Reference 01 RGBW 02 RED 03 GREEN 04 BLUE 05 YELLOW 06 CYAN 07 MAGENTA 08 WHITE 09 ORANGE 10 PINK 11 VIOLET 12 AQUA 13 SKY BLUE 14 FULL WHITE 15 COOL WHITE 16 WARM WHITE 17 WHITE 3200...
  • Page 10 MENU SET Program Edit scene Advanced Setup Radio Address Edit Mode Sequence Lock Option recorder Display Contrast Battery Display Fixture ID Set Model Color Tunable White White FW Uploader Appl. Upload Boot. Upload Charge Informations BAT hour Discharge BAT hour Battery Monitor temperature...
  • Page 11 PROGRAM MENU EDIT SCENE Program Edit scene To create/overwrite/modify a SCENE customised by the user: 1) Press ENTER – SCENE 1 appears on the display. 2) Use the UP and DOWN keys to select from the ten available SCENES. 3) Press ENTER to open a SCENE.
  • Page 12 MODE Advanced Setup Mode Assigns the desired command to the GlowUP Radio module 1) Press ENTER – current settings appear on the display. 2) Use the UP and DOWN keys to select one of the following settings: • SLAVE PRIORITY: GlowUp runs as a Slave Press ENTER and use the UP and DOWN...
  • Page 13 CONTRAST Advanced Setup Contrast Lets the user modify display contrast. 1) Press ENTER – current settings appear on the display. 2) Use the UP and DOWN keys to modify the value from 0 to 10 according to the desired contrast. 3) Press SELECT to return to the previous Menu.
  • Page 14 TOTAL LED HOURS Total LED Advanced Informations hours Displays total LED working hours, from construction to today. 1) Press ENTER – total LED working hours appear on the display. 2) Press SELECT to return to the previous Menu. SYSTEM VERSION System Displays the version of the firmware loaded on the CPU board.
  • Page 15: Operating Mode

    "Repeater"-> "Function"->"Repeat & Play" Advanced Reset "Repeater"-> "Direction"->"Wirel. to Cable" ‘’DMX address’’ = 1 "Display"-> Off “Contrast” = 5 “MOD”-> "Stand Alone/DMX" "Slave Priority"-> "Cable" CPU RESET Reset Used to reset the CPU. Settings will not be reset. 1) Press ENTER –...
  • Page 16: Rdm Controls Implemented For Glowup Series

    RDM CONTROLS IMPLEMENTED FOR GLOWUP SERIES Control Description controller side Gathers information from the device DEVICE_INFO 0x0060 Makes the red leds on the addressed device pulse IDENTIFY_DEVICE 0x1000 Reads or sets the DMX address DMX_START_ADDRESS 0x00F0 Reads the firmware version SOFTWARE_VERSION_LABEL 0x00C0 Gathers the PIDS on the non-basic controls...
  • Page 17: Maintenance

    MAINTENANCE Charging glow up - Fig. 9 From 1 to 6 Glow Ups can be simultaneously charged by appropriately connecting and powering the flight-case. Fuse 6,3x32mm 3AT 250Vac (030471) Fuse 6,3x32mm 10AT 250Vac (030470) Replacing flight case fuses - Fig. 10 Each flight-case has 2 fuses associated with the main power cord connection and one fuse for each Glow UP charge station.
  • Page 18 1/4 Turn Battery removal - Fig. 11 This product contains lithium iron tetraphosphate rechargeable battery. To protect the environment, please discard the battery at the end of its working life according to current law. LiFePO4 Notes on how to achieve correct battery operations 1) Do not tamper with the control electronic circuit, do not tamper with the battery, do not short-circuit the battery.
  • Page 19: Optional Accessories

    • General cleaning of internal parts. • General visual check of internal parts, cabling, mechanical parts, etc. • Electrical, photometric and functional checks; eventual repairs. OPTIONAL ACCESSORIES MAGNETIC HOLDER C7111---2- black C7111---7- white PADLOCK Not commercialized from Clay Paky GLOW UP...
  • Page 20: Technical Data

    TECHNICAL DATA Source Input Power 4 10 W MC-E Cree leds 170 VA Led pilot power Body • Injection pressed ABS case (UV protected) • Finish: Polished metallic – Painted White or Optics Black Optic zoom, manually adjustable, magnetic support •...
  • Page 21: Channel Functions

    CHANNEL FUNCTIONS GLOW UP C CHANNEL CHANNEL MODE GREEN BLUE WHITE DIMMER STOP / STROBE MACRO COLOR GLOW UP TW CHANNEL MODE (Colour temperature) CHANNEL INDEPENDENT CONSTANT INTENSITY MAX INTENSITY COOL WHITE 6200°K TUNABLE WHITE TUNABLE WHITE WARM WHITE 2700°K DIMMER DIMMER STOP / STROBE...
  • Page 22 • MACRO COLOR - channel 7 GLOW UP C EFFECT COLD TONE WARM TONE PASTEL TONE • COLOUR MIXING - channel 1 - 2 - 3 SEQ1 SKELTON EXOTIC SANGRIA FLESH PINK EFFECT CHERRY ROSE CHANNEL 1 CHANNEL 2 CHANNEL 3 MAYAN SUN COLOUR INSERTED LIGHT SALMON...
  • Page 23 GLOW UP TW INDEPENDENT MODE CONSTANT INTENSITY & MAX INTENSITY MODE INDEPENDENT CONSTANT INTENSITY MAX INTENSITY COOL WHITE 6200°K TUNABLE WHITE TUNABLE WHITE WARM WHITE 2700°K DIMMER DIMMER STOP / STROBE STOP / STROBE STOP / STROBE CONSTANT INTENSITY MAX INTENSITY COOL WARM COOL...
  • Page 24 GLOW UP W • DIMMER - channel 1 EFFECT OPEN (LIGHT) CLOSED (BLACK) • STOP / STROBE - channel 2 CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
