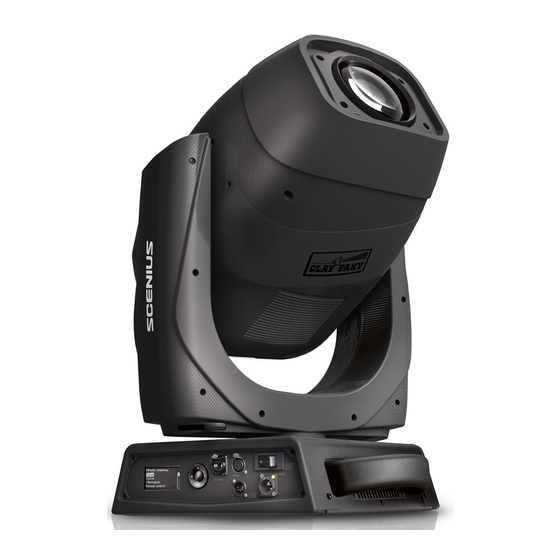

S ENIUS PROFILE C61505 INSTRUCTION MANUAL INDEX Congratulations on choosing a Clay Paky product Page Contents We thank you for your custom. Please note that this product, as all the others in the rich Clay Safety information Paky range, has been designed and made with total quality to...
SAFETY INFORMATION SAFETY INSTRUCTIONS IMPORTANT: Clay Paky recommends you carefully read and keep the safety information on this product, also http://www.claypaky.it/en available in digital format at the following link: Ref: [FIS00L – Safety Information Scenius] INFORMAZIONI DI SICUREZZA IMPORTANTE: Clay Paky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative a questo prodotto, sempre reperibili in versione digitale al seguente link: http://www.claypaky.it/en/download...
UNPACKING AND PREPARATION 2 x 183102/805 LAM00D (fitted into fixture) Packing contents - Fig. 1 UNLOCKED LOCKED UNLOCKED LOCKED PAN Mechanism Lock and Release every 90°) - Fig. 2 TILT Mechanism Lock and Release every 45°) - Fig. 3 S ENIUS PROFILE...
INSTALLATION AND START-UP Installing the projector - Fig. 4 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
CONTROL PANEL Mains Connecting to the mains supply - Fig. 6 DMX 512 5 PIN SCREEN SIGNAL SIGNAL Connecting to the control signal line DMX) - Fig. 7 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified.
Page 6
Reversal of the display - Fig. 9 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
MAINTENANCE 1/4 Turn 1/4 Turn 1/4 Turn CLICK!! Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10. Closing the head covers - Fig. 11. Continue S ENIUS PROFILE...
Page 8
• General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky. • General visual check of the internal components, cabling, mechanical parts, etc.
Page 9
Cleaning of the filters - Fig. 13. Continue S ENIUS PROFILE...
Page 10
Upper Side Lower Side Upper Side Extraction of the effect modules: Preliminary operations - Fig. 14. S ENIUS PROFILE...
Page 11
Upper Side Extraction of the effect modules: Preliminary operations - Fig. 15. Continue S ENIUS PROFILE...
Page 12
Upper Side Extraction of the effect modules - Fig. 16. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15, 16, 17 and 18 in reverse order. S ENIUS PROFILE...
Page 13
Upper Side Extraction of the effect modules - Fig. 17. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15, 16, 17 and 18 in reverse order. Continue S ENIUS PROFILE...
Page 14
Upper Side Lower Side Lower Side Extraction of the effect modules - Fig. 18. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15, 16, 17 and 18 in reverse order. S ENIUS PROFILE...
Page 15
Upper Side Lower Side Lamp change - Fig 20 Take the new lamp out of its package and insert in the fitting. WARNING: do not touch the lamp s envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it with a clean, dry cloth.
Page 16
Replacing rotating gobos ø 32.8 mm - max 23 mm image – thickness 1.1 mm) - Fig. 23 - Before use custom gobos contact Clay Paky; - The original gobos have a special coating designed specifically to resist to the high temperatures;...
Page 17
GOD00F/001 GOD00F/009 GOD00F/002 GOD00F/007 GOD00F/003 GOD00F/006 GOD00F/004 GOD00F/005 Replacing fixed gobos ø 31.5 mm - max 23 mm image - thickness 1.1 mm) - Fig. 24 IMPORTANT: Please contact CLAY PAKY before using customized gobos. Continue S ENIUS PROFILE...
Page 18
Battery removal - Fig. 25 This product contains a rechargeable lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 S ENIUS PROFILE...
