Clay Paky ALPHA SPOT QWO 800 Instruction Manual

Hide thumbs Also See for ALPHA SPOT QWO 800:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
INDEX
Page
Contents
2
3
4
5
7
14
23
23
24

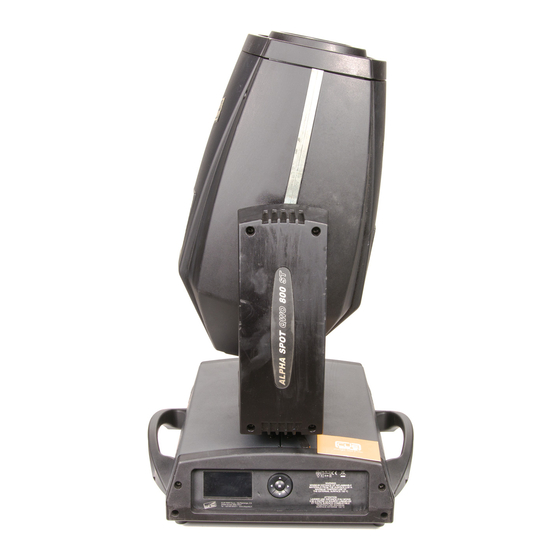

ALPHA SPOT QWO 800
ALPHA SPOT QWO 800
INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product!
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
1
C61380
ST
"
"
C61381

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALPHA SPOT QWO 800 and is the answer not in the manual?

Questions and answers

Related Manuals for Clay Paky ALPHA SPOT QWO 800

Summary of Contents for Clay Paky ALPHA SPOT QWO 800

  • Page 1: Table Of Contents

    Control panel the fitting is installed, used and serviced correctly and safely. CLAY PAKY S.p.A. disclaims all liability for damage to the fitting Menu setting or to other property or persons deriving from installation, use and...

  • Page 2: Safety Information

    LiFePO4 The products referred to in this manual conform to the European Community Directives to which they are subject: • Low Voltage 2006/95/CE • Electromagnetic Compatibility 2004/108/CE ALPHA SPOT QWO 800 & “ ”...

  • Page 3: Unpacking And Preparation

    099116 2 x 183102/802 Packing contents - Fig. 1 UNLOCKED LOCKED LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 ALPHA SPOT QWO 800 & “ ”...

  • Page 4: Installation And Start-Up

    This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. Connecting and disconnecting power cable - Fig. 5 ALPHA SPOT QWO 800 & “ ”...

  • Page 5: Control Panel

    During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status. It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the key will be cancelled. ➔ Continue ALPHA SPOT QWO 800 & “ ”...
  • Page 6 All that is needed is to press to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds. ALPHA SPOT QWO 800 & “ ”...

  • Page 7: Menu Setting

    Setting Preset User Preset 1 User Preset 2 User Preset 3 Manual Access code Lamp Pan / Tilt Advanced Control 1234 Colour Reset Upload Firmware Beam Channel Setup Model Gobo Calibration ➔ Continue ALPHA SPOT QWO 800 & “ ”...
  • Page 8 – the current Universe address appears on the display. 2) Use the UP , DOWN , RIGHT keys to set the Universe address. 3) Press to confirm the selection or LEFT to keep the current setting. ALPHA SPOT QWO 800 & “ ”...
  • Page 9 1) Use the UP and DOWN keys to enable (On) or disable (Off) the overwriting. 2) Press to confirm the selection or LEFT to keep the current setting. ➔ Continue ALPHA SPOT QWO 800 & “ ”...
  • Page 10 - the current settings appear on the display (On or Off). 2) Use the UP and DOWN keys to enable (On) or disable (Off) the decreasing of display brightness. 3) Press to confirm the selection or LEFT to keep current settings. ALPHA SPOT QWO 800 & “ ”...

  • Page 11: Information Menu

    Total counter Counts the number of projector working hours with the lamp on (from manufacture to date). Partial counter Counts the number of lamp working hours since the last reset to date. ➔ Continue ALPHA SPOT QWO 800 & “ ”...

  • Page 12: Manual Control

    (Are you sure ?) appears on the display. 2) Select YES to starting reset the fixture or NO to keep the current setting and return to the top menu level. ALPHA SPOT QWO 800 & “ ”...

  • Page 13: Test Menu

    – a confirmation message appears on the display (Reset calibration to factory default ?). 2) Select YES to reset calibration to factory default or NO to keep the current setting and return to the top menu level. ALPHA SPOT QWO 800 & “ ”...

  • Page 14: Maintenance

    1/4 Turn Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10. Closing the head covers - Fig. 11. ALPHA SPOT QWO 800 & “ ”...
  • Page 15 Opening and closing lamp compartment - Fig. 12 NORMAL Upper Side HOT SPOT Lower Side Lamp regulation - Fig. 14 To centre the lamp, turn the three adjusting screws as shown in the figure. ➔ Continue ALPHA SPOT QWO 800 & “ ”...
  • Page 16 085203-001 085206-001 085202-001 085207-001 GOM000-001 085208-001 Replacing fixed gobos (ø 31.5 mm – max 19 mm image – thickness max 1.1 mm) - Fig. 15 WARNING: Before using personalised gobos contact Clay Paky. ALPHA SPOT QWO 800 & “ ”...
  • Page 17 Replacing rotating gobos (ø 25.7 mm - max 19 mm image – thickness max 1.1 mm) - Fig. 17 IMPORTANT: Use only glass gobos on the rotating gobos wheel. WARNING: Before using personalised gobos contact Clay Paky. COATED GLASS GOBOS TYPE 1...
  • Page 18 • General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky. • General visual check of the internal components, cabling, mechanical parts, etc. • Electrical, photometric and functional checks; eventual repairs ALPHA SPOT QWO 800 &...
  • Page 19 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. ➔ Continue ALPHA SPOT QWO 800 & “ ”...
  • Page 20 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. ALPHA SPOT QWO 800 & “...
  • Page 21 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. ➔ Continue ALPHA SPOT QWO 800 & “ ”...
  • Page 22 Battery removal - Fig. 23 This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 ALPHA SPOT QWO 800 & “ ”...

  • Page 23: Technical Information

    Replace the cables. Incorrect addressing. Check addresses (see instructions). Fault in the electronic circuits. Call an authorised technician. Lenses or reflector broken Call an authorised technician. Dust or grease deposited. Clean (see instructions). ALPHA SPOT QWO 800 & “ ”...

  • Page 24: Channel Functions

    CHANNEL FUNCTION ALPHA SPOT QWO 800 & “ST” CHANNEL MODE CHANNEL STANDARD VECTOR CYAN CYAN MAGENTA MAGENTA YELLOW YELLOW COLOUR WHEEL COLOUR WHEEL MACRO COLORS MACRO COLORS STOP / STROBE STOP / STROBE DIMMER DIMMER DIMMER FINE DIMMER FINE IRIS...
  • Page 25 LIGHT GREEN + LAVENDER MACRO EFFECTS) 23.7 LIGHT GREEN 20.5 GREEN + LIGHT GREEN UNUSED RANGE 17.5 GREEN 14.2 CTO 2600 + GREEN 11.7 CTO 2600 RED + CTO 2600 WHITE + RED WHITE ➔ Continue ALPHA SPOT QWO 800 & “ ”...
  • Page 26 SLOW PULSATION, FAST OPENING FAST PULSATION 49-64 19.0-25.0 GOBO 3 51.7 SLOW PULSATION 128 - 131 50.0 - 51.2 MAXIMUM APERTURE 33-48 13.0-18.7 GOBO 2 17-32 6-7-12.5 GOBO 1 MINIMUM APERTURE 0-16 0.0-6.2 WHITE ALPHA SPOT QWO 800 & “ ”...
  • Page 27 FAST ROTATION (120 rpm) ° 49.7 POSITION 540 540° ° 41.7 POSITION 450 ° 33.0 POSITION 360 360° 24.7 POSITION 270 ° 16.2 ° POSITION 180 POSITION 90 ° 0° DISTANT POSITION 0 ° ➔ Continue ALPHA SPOT QWO 800 & “ ”...
  • Page 28 4 METRES 3 METRES 0.0-2.5 AUTOFOCUS OFF • AUTOFOCUS ADJUSTMENT - channel 24 Operation with option InvertPan (Tilt conventionally represented at 14% and option Invert Tilt Off) EFFECT FOCUS FINE 50.0 FOCUS FINE ALPHA SPOT QWO 800 & “ ”...
  • Page 29 5 seconds in Effects reset levels. 10.0 EFFECTS RESET UNUSED RANGE The functions are actived passing through the unused range and staying 5 seconds in necessary level ➔ Continue ALPHA SPOT QWO 800 & “ ”...
  • Page 30 • LAMP CONTROL (only with option LAMP DMX On) - channel: 32 IMPORTANT: Alpha Spot QWO 800 is not provided with hot restrike igniter EFFECT LAMP ON (FULL POWER) Lamp ignition after 5 s in full power levels. Immediate transition from half to full power.
  • Page 31 Dimmer - Frost - Iris - Focus - Zoom - Prism - Animation Disk Gobo time Static Gobo - Rotating Gobo Change TIME TABLE Seconds Seconds Seconds Seconds Seconds Seconds Full 10.2 10.4 10.6 Follow cue Data ALPHA SPOT QWO 800 & “ ”...
  • Page 32 CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
