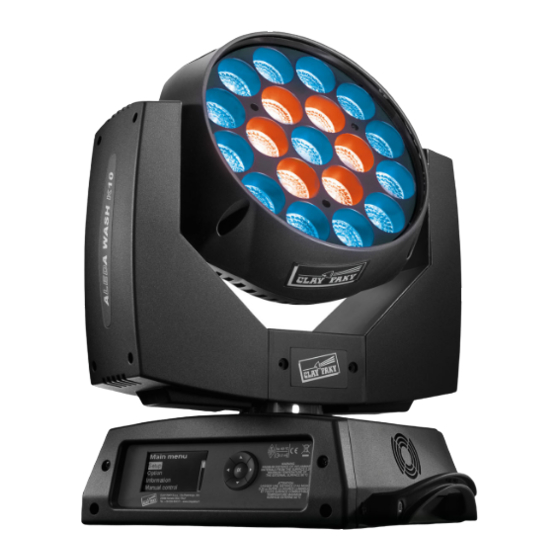

Clay Paky A.LEDA WASH K5l Instruction Manual
  1. Manuals
  2. Brands
  3. Clay Paky Manuals
  4. Flood Light
  5. A.LEDA WASH K5l
  6. Instruction manual

Clay Paky A.LEDA WASH K5l Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

INDEX
Page
Contents
2
Safety information
3
Unpacking and preparation
4
Installation and start-up
5
Control panel
7
Menu setting
14
Maintenance
16
Optional accessories
19
Technical information
19
Cause and solution of problems
20
Channel functions

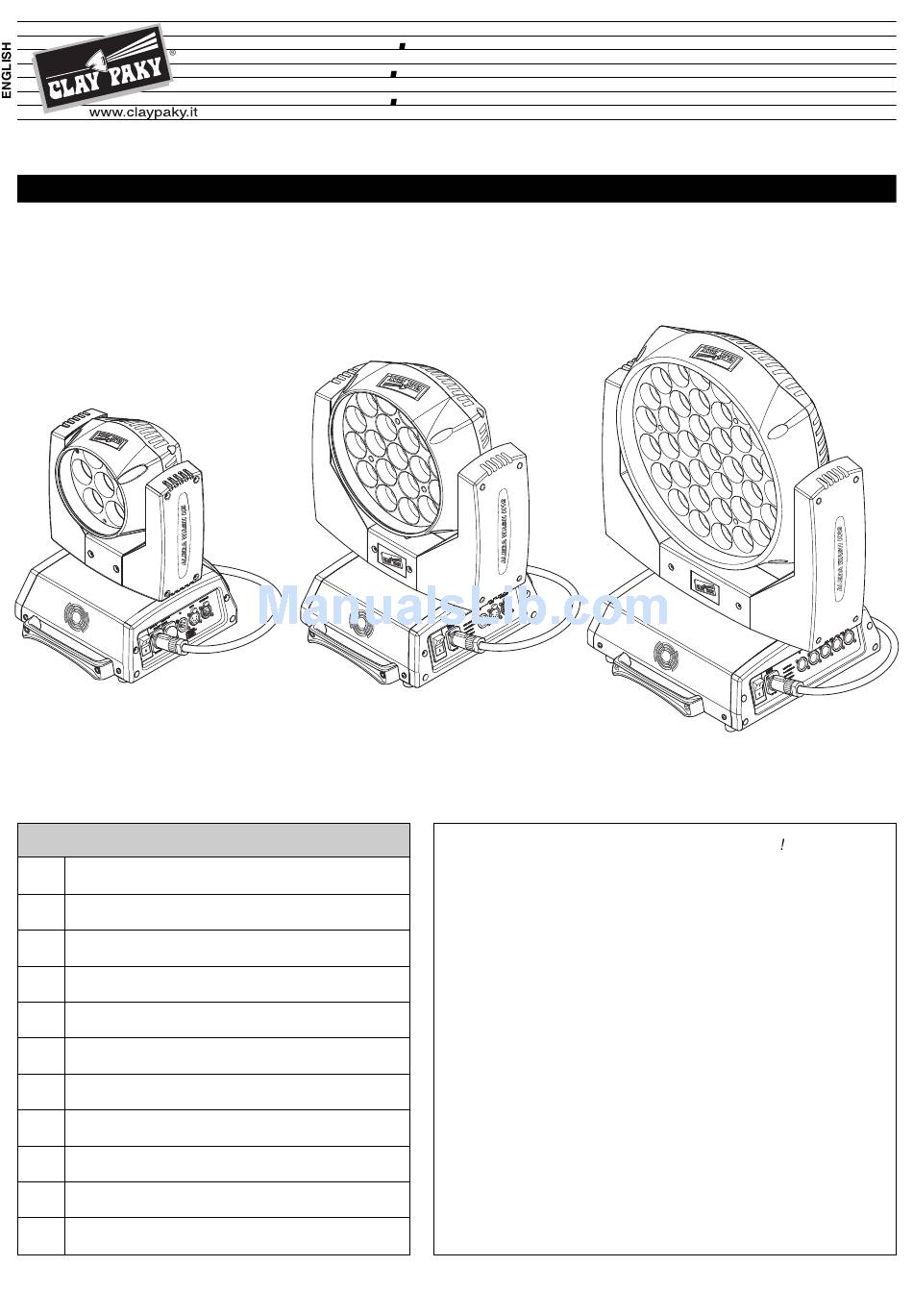

A LEDA WASH K5
A LEDA WASH K10
A LEDA WASH K20
INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
1
C61401
C61405
C61410

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A.LEDA WASH K5l and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clay Paky A.LEDA WASH K5l

Summary of Contents for Clay Paky A.LEDA WASH K5l

  • Page 1 Menu setting CLAY PAKY S.p.A. disclaims all liability for damage to the fitting Maintenance or to other property or persons deriving from installation, use and...

  • Page 2: Safety Information

    SAFETY INFORMATION • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails, the fitting falls as little as possible.

  • Page 3: Unpacking And Preparation

    UNPACKING AND PREPARATION IST004/001 2 x 183102/805 Packing contents - Fig. 1 UNLOCKED LOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 A LEDA WASH...

  • Page 4: Installation And Start-Up

    INSTALLATION AND START-UP Installing the projector - Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.

  • Page 5: Control Panel

    CONTROL PANEL Mains NB: connecting one “A.leda Wash K5” to the mains, it is possible to connect up to a maximum of 11 “A.leda Wash K5” in parallel at the same time. Connecting to the mains supply - Fig. 5 DMX 512 5 PIN SCREEN...
  • Page 6 Reversal of the display - Fig. 8 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

  • Page 7: Menu Setting

    MENU SETTING Invert System Set Up Option Pan / Tilt Information Address Errors Invert Channel Fixture Tilt Mode Hours Swap Pan-Tilt Fixture ID Energy Tot Encoder Pan-Tilt Ethernet System Interface Version Silent Standard Mode Board Quiet Option Diagnost. Display Information Monitor Special Pan/Tilt...
  • Page 8 NOTE: On grey the default options SET UP MENU DMX ADDRESS NOTE: without the DMX signal the Address (XXX) flashing Set Up Address xxx Allows you to select the DMX ADDRESS. Address 1) Press - the current DMX Adress appear on the display. 2) Use the UP and DOWN , RIGHT...
  • Page 9 OPTIONS MENU PAN / TILT Invert Invert pan Option Pan / Tilt Used for reversing Pan movement. 1) Press - the current settings appear on the display (On or Off). 2) Use the UP and DOWN keys to enable (On) or disable (Off) PAN inversion.
  • Page 10 Dimmer Curve Special Dimmer Option Functions Curve Lets you select four different Dimmer channel curves. 1) Press - the current setting appears on the display. 2) Use the UP and DOWN keys to select one of the following settings: - Curve 1 - Curve 2 - Curve 3 - Curve 4...

  • Page 11: Information Menu

    INFORMATION MENU SYSTEM ERRORS System Information Shows a list of warnings and messages relevant to errors occurred since Errors the fixtures switching-on. 1) Pressing you are allowed to reset the SYSTEM ERRORS list. A confirmation message (Are you sure you want to clear error list ?) appears on the display.

  • Page 12: Manual Control

    MANUAL CONTROL RESET Manual Used for resetting the projector. Reset Control 1) Press to reset the projectors, a confirmation message (Are you sure ?) appears on the display. 2) Select YES to starting reset the fixture or NO to keep the current setting and return to the top menu level.
  • Page 13 Battery removal - Fig. 9 This product contains a rechargeable lead-acid battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 A LEDA WASH...

  • Page 14: Maintenance

    MAINTENANCE Opening the covers - Fig. 10 Removing/Assembling the lens unit - Fig. 11 NB: Apply Loctite 222 (p/n COL002) to the threads of the 3 screws (1) before tightening them. A torque of 0.3N is recommended in order to avoid damaging the zoom movement actuators.
  • Page 15 DIM002/001 Replacing the line actuator - Fig. 12 NB: It is highly recommended to use the DIM002/001 (1) template whenever it is necessary to replace one of the three Zoom movement line actuators. DIM002/001 ensures the actuator group is centred correctly on the lens plate before tightening the 2 screws (2) that fasten the actuator in place. A LEDA WASH...

  • Page 16: Optional Accessories

    OPTIONAL ACCESSORIES A.LEDA WASH K5 C61452 C61453 Cover - Fig. 13 C61452 - Transparent cover C61453 - Frosted cover C61451 Transparent mask - Fig. 14 A LEDA WASH...
  • Page 17 A.LEDA WASH K10 C61455 C61456 Cover - Fig. 15 C61455 - Transparent cover C61456 - Frosted cover C61454 Transparent mask - Fig. 16 Continue A LEDA WASH...
  • Page 18 A.LEDA WASH K20 C61458 C61459 Cover - Fig. 17 C61458 - Transparent cove C61459 - Frosted cover C61457 Transparent mask - Fig. 18 A LEDA WASH...

  • Page 19: Technical Information

    TECHNICAL INFORMATION Power supplies available (8.66") 100-240V 50/60Hz (6.10") Input power (6.10") • K20 - 750VA • K10 - 450VA (9.65") • K5 - 170VA (14.72") Max 1800VA (with 11 A.leda Wash K5 connected in parallel) Total output K5 - Max 2100 lumens K10 - Max 5500 lumens K20 - Max 10500 lumens (15.00")

  • Page 20: Channel Functions

    CHANNEL FUNCTION A.LEDA WASH K5 STANDARD EXTENDED EXTENDED RGBW CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE Red fine Red fine Red fine Green Green Green Green fine Green fine Green fine Blue Blue Blue Blue fine Blue fine Blue fine White White...
  • Page 21 A.LEDA WASH K10 STANDARD EXTENDED CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE Blue LED 10 Red fine Red LED 11 Red fine Green Green LED 11 Green Green fine Blue Blue LED 11 Green fine Blue fine Blue Red LED 12 White Green LED 12...
  • Page 22 A.LEDA WASH K10 EXTENDED RGBW CHAN- CHAN- CHANNEL MODE CHANNEL MODE Green LED 8 Red fine Blue LED 8 Green White LED 8 Green fine Red LED 9 Blue Green LED 9 Blue fine Blue LED 9 White White LED 9 White fine Red LED 10 Green LED 10...
  • Page 23 A.LEDA WASH K20 STANDARD EXTENDED CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE Green LED 16 Red fine Red fine Blue LED 16 Green Green Red LED 17 Green fine Green fine Green LED 17 Blue Blue Blue LED 17 Blue fine Blue fine Red LED 18...
  • Page 24 A.LEDA WASH K20 EXTENDED RGBW CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE Red LED 10 Red LED 24 Red fine Green LED 10 Green LED 24 Green Blue LED 10 Blue LED 24 Green fine White LED 10 White LED 24 Blue Red LED 11...
  • Page 25 NOTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the Home position (Pan 50% - Tilt 50%) all the others channels stay at 0%. • C.T.O. • RED – GREEN - BLUE - WHITE EFFECT EFFECT COLOUR INSERTED...
  • Page 26 • MACRO COLOUR • STOP / STROBE BIT VALUE EFFECT COLOUR 252 - 255 OPEN REFERENCE (25 flash/sec) 239 - 251 RANDOM FAST STROBE 226 - 238 RANDOM MEDIUM STROBE 207-255 Alice Blue 213 - 225 RANDOM SLOW STROBE 208 - 212 OPEN 191-206 Congo Blue...
  • Page 27 • PAN • TILT Operation with option InvertPan Operation with option InvertPan (Tilt conventionally represented at 14% and option Invert Tilt Off) (Tilt conventionally represented at 14% and option Invert Tilt Off) 0-255 Bit: 2.65 sec (K20) 0-255 Bit: 1.45 sec (K20) 0-255 Bit: 2.01 sec (K10) 0-255 Bit: 0.87 sec (K10) 0-255 Bit: 1.41 sec (K5)
  • Page 28 • FUNCTION DIMMER CURVE 4 - S EFFECT 251 – 255 Reset to defult 103 – 250 Unused Range 98 – 102 Halogen Lamp Simulation, type 5 (2500 W) 93 – 97 Halogen Lamp Simulation, type 4 (2000 W) 88 – 92 Halogen Lamp Simulation, type 3 (1200 W) 83 –...
  • Page 29 SHAPE SELECTION - SHAPE SPEED - SHAPE OFFSET RANDOM SHAPE SELECTION SHAPE SPEED SHAPE OFFSET COLORS *1 32-255 N.a. N.a. N.a. Reserved Two rotating arcs of different colors and direction Two rotating arcs of different colors Two rotating bars of different colors Triangle Half moon Bar (2 arms)
  • Page 30 Macro Off DMX channel value: from 0 to 7. No shape effects activated. Turns off any previously selected shape. Static Rings DMX channel value: from 8 to 14. The ring or rings used by the macro are turned on with the foreground colour (Shape Red+Shape Green+Shape blue+Shape White). Avaliable combinations: Ring 1 On, Ring 2 On, Ring 3 On (Aleda K10, K20 only), Ring 4 On (Aleda K20 only),Ring 1+2 On, Ring 1+3 On (Aleda K10, K20 only), Ring 1+4 On (Aleda K20 only).
  • Page 31 • SH PE SMOOTHING • ZOOM EFFECT 246-255 Smooth, fading curve with automatic gamma * EFFECT Smooth, fading curve gamma 2 Smooth, fading curve gamma 1,993 WIDE BEAM Smooth, fading curve gamma 1,986 0-255 Bit: 0.68 sec (K20) 0-255 Bit: 0.69 sec (K10) Smooth, fading curve gamma 0,513 Smooth, fading curve gamma 0,506 Smooth, fading curve gamma 0,5...
  • Page 32 • SHAPE TRANSITION FADING TIME FADING TIME FADING TIME FADING TIME 4000 ms 2600 ms 1480 ms 650 ms 3970 ms 2580 ms 1460 ms 640 ms 3950 ms 2560 ms 1440 ms 630 ms 3920 ms 2530 ms 1430 ms 620 ms 3890 ms 2510 ms...
  • Page 33 A.LEDA WASH K5 A.LEDA WASH K10 LED reference number for pixel mapping LED reference number for pixel mapping TILT: channel 16 at 80% TILT: channel 16 at 80% A.LEDA WASH K20 LED reference number for pixel mapping TILT: channel 16 at 80% A LEDA WASH...
  • Page 34 A LEDA WASH...
  • Page 35 A LEDA WASH...
  • Page 36 CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
