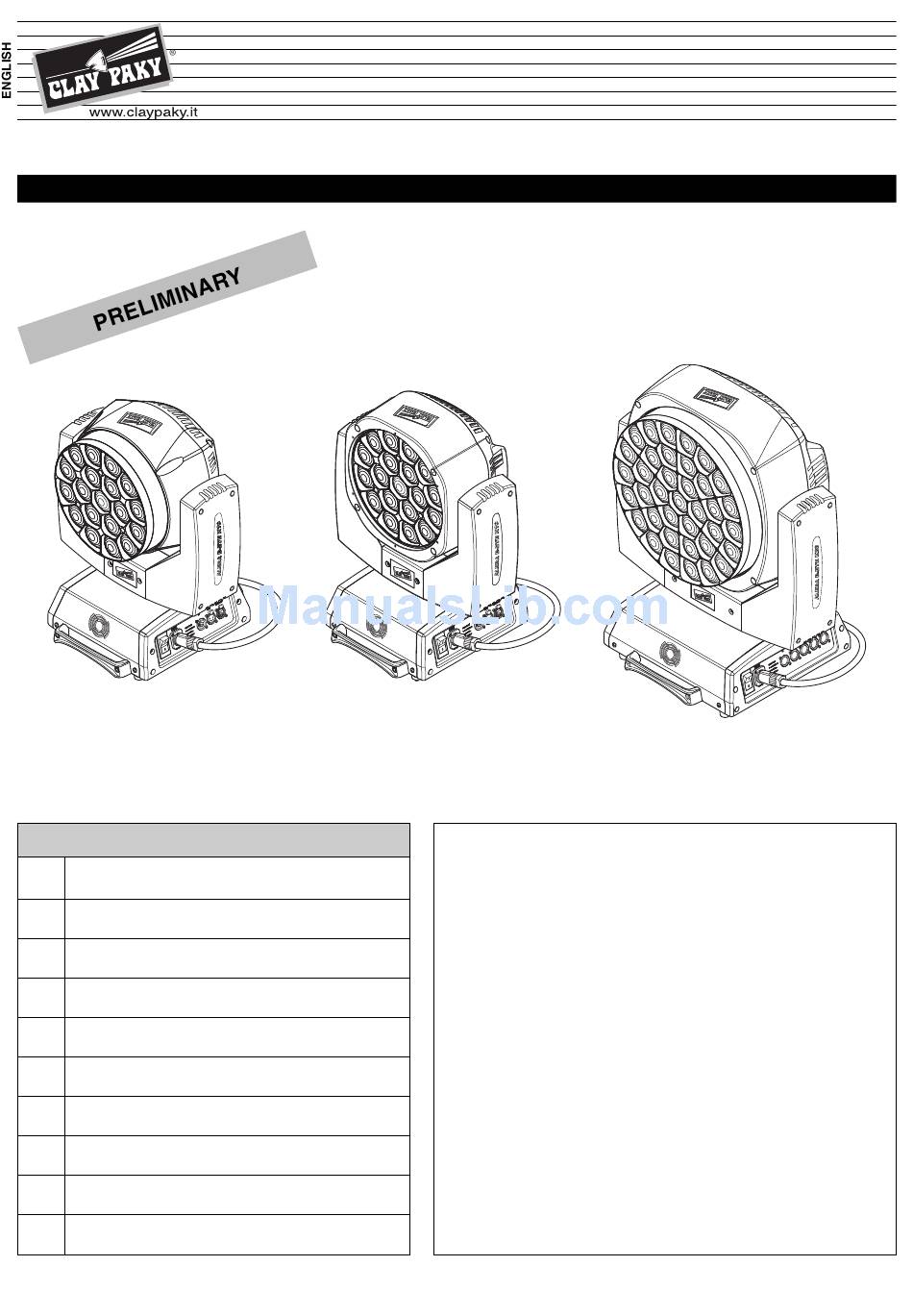

Page 1 Control panel the fitting is installed, used and serviced correctly and safely. CLAY PAKY S.p.A. disclaims all liability for damage to the fitting Menu setting or to other property or persons deriving from installation, use and...
Page 2: Safety Information
SAFETY INFORMATION • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails, the fitting falls as little as possible.
Page 3: Unpacking And Preparation
UNPACKING AND PREPARATION IST009/001 2 x 183102/805 Packing contents - Fig. 1 UNLOCKED LOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 A.LEDA B-EYE...
Page 4 INSTALLATION AND START-UP Installing the projector - Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
Page 5: Control Panel
CONTROL PANEL Mains Connecting to the mains supply - Fig. 5 DMX 512 5 PIN SCREEN SIGNAL SIGNAL DMX 512 3 PIN SIGNAL SCREEN SIGNAL Connecting to the control signal line (DMX) - Fig. 6 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified.
Page 6 Reversal of the display - Fig. 8 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
Page 7: Menu Setting
MENU SETTING Invert System Set Up Option Pan / Tilt Information Address Errors Invert Channel Fixture Tilt Mode Hours Swap Pan-Tilt Fixture ID Energy Tot Encoder Pan-Tilt Ethernet System Interface Version P/T Homing mode Board Option Pan Home Diagnost. Def Pos Tilt Home Information Def Pos...
Page 8 NOTE: On grey the default options SET UP MENU DMX ADDRESS NOTE: without the DMX signal the Address (XXX) flashing Set Up Address xxx Address Allows you to select the DMX ADDRESS. 1) Press - the current DMX Adress appear on the display. 2) Use the UP and DOWN , RIGHT...
Page 9 OPTIONS MENU PAN / TILT Invert Invert pan Option Pan / Tilt Used for reversing Pan movement. 1) Press - the current settings appear on the display (On or Off). 2) Use the UP and DOWN keys to enable (On) or disable (Off) PAN inversion.
Page 10 DISPLAY Option Display Used for automatically reduce brightness on the display after about 30 seconds in idle. 1) Press - the current settings appear on the display (On or Off). 2) Use the UP and DOWN keys to enable (On) or disable (Off) the decreasing of display brightness.
Page 11: Information Menu
1) Press , a confirmation message (Are you sure?) appears on the display. 2) Select YES to confirm the selction or NO to keep current setting. OPTION DEFAULT Invert Pan Invert Tilt Swap Pan-Tilt Encoder Pan-Tilt P/T Homing Mode Standard Pan Home Def Pos 270 degrees Tilt Home Def Pos...
Page 12: Manual Control
MANUAL CONTROL RESET Manual Used for resetting the projector. Reset Control 1) Press to reset the projectors, a confirmation message (Are you sure ?) appears on the display. 2) Select YES to starting reset the fixture or NO to keep the current setting and return to the top menu level.
Page 13 - General cleaning of internal parts. - Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky. - General visual check of the internal components, cabling, mechanical parts, etc. - Electrical, photometric and functional checks; eventual repairs.
Page 14 Battery removal - Fig. 10 This product contains a rechargeable lead-acid battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 A.LEDA B-EYE...
Page 15 MAINTENANCE Opening the covers - Fig. 11 Removing/Assembling the lens unit - Fig. 12 A.LEDA B-EYE...
Page 16: Cause And Solution Of Problems
Replacing the line actuator - Fig. 13 CAUSE AND SOLUTION OF PROBLEMS THE PROJECTOR WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. LED exhausted or defective. Call an authorised technician.
Page 17: Technical Information

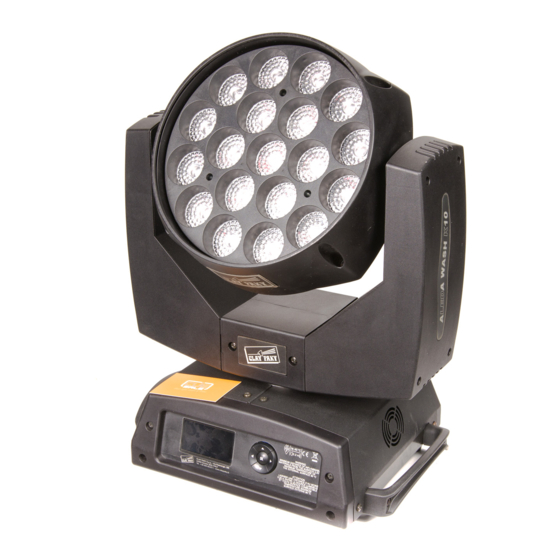

• Movement by means of two stepper motors, controlled by microprocessor. • Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit. (13.39") A.Leda B-EYE K10 easy Zoom OUT • Travel: (9.06") - PAN = 540°...
Page 18 CHANNEL FUNCTION A.LEDA B-EYE K10 EASY STANDARD SHAPES EXTENDED EXTENDED RGBW FULL CHAN- CHAN- CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE CHANNEL MODE CHANNEL MODE Red fine Red fine Red fine Red fine Red fine Green Green Green...
Page 19 A.LEDA B-EYE K10 STANDARD SHAPES EXTENDED EXTENDED RGBW FULL CHAN- CHAN- CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE CHANNEL MODE CHANNEL MODE Red fine Red fine Red fine Red fine Red fine Green Green Green Green Green Green fine Green fine Green fine Green fine...
Page 20 A.LEDA B-EYE K20 STANDARD SHAPES EXTENDED EXTENDED RGBW FULL CHAN- CHAN- CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE CHANNEL MODE CHANNEL MODE Red fine Red fine Red fine Red fine Red fine Green Green Green Green Green Green fine Green fine Green fine Green fine...
Page 21 NOTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the Home position (Pan 128 bit - Tilt 128 bit ) all the others channels stay at 0 bit. • RED • MACRO COLOUR GREEN BLUE BIT VALUE...
Page 22 • STOP STROBE • TILT • TILT FINE EFFECT 252 - 255 OPEN RANDOM FAST STROBE 239 - 251 226 - 238 RANDOM MEDIUM STROBE 213 - 225 RANDOM SLOW STROBE 208 - 212 OPEN FAST PULSATION (25 flash/sec) SLOW PULSATION (0,5 flash/sec) 104 - 107 OPEN FAST STROBE (25 flash/sec)
Page 23 • RESET • RED LED 1 to… GREEN LED 1 to… EFFECT BLUE LED 1 to… COMPLETE RESET WHITE LED 1 to… EFFECT Complete reset is activated passing throug the unused range and staying 5 seconds in complete reset levels LED ON COMPLETE RESET PAN / TILT RESET...
Page 24 SHAPE SELECTION - SHAPE SPEED - SHAPE OFFSET RANDOM SHAPE SELECTION Description SHAPE SPEED SHAPE OFFSET COLORS *1 Macro OFF N.a. N.a. N.a. Static effects. Ring 1 N.a. N.a. N.a. The ring or rings Ring 2 used by the Ring 3 macro are Ring 4 Ring 1 + 2...
Page 25 Macro Off DMX channel value: from 0 to 7. No shape effects activated. Turns off any previously selected shape. Static Rings DMX channel value: from 8 to 14. The ring or rings used by the macro are turned on with the foreground colour (Shape Red+Shape Green+Shape blue+Shape White). Avaliable combinations: Ring 1 On, Ring 2 On, Ring 3 On (Aleda K10, K20 only), Ring 4 On (Aleda K20 only),Ring 1+2 On, Ring 1+3 On (Aleda K10, K20 only), Ring 1+4 On (Aleda K20 only).
Page 26 • SHAPE FADE EFFECT 246-255 Smooth, fading curve with automatic gamma * Smooth, fading curve gamma 2 Smooth, fading curve gamma 1,986 Smooth, fading curve gamma 1,993 Smooth, fading curve gamma 0,513 Smooth, fading curve gamma 0,506 Smooth, fading curve gamma 0,5 0-15 Snap •...
Page 27 A.LEDA B-EYE K10 & K10 EASY LED reference number for pixel mapping TILT: channel 16 @ bit 200 A.LEDA B-EYE K20 LED reference number for pixel mapping TILT: channel 16 @ bit 200 A.LEDA B-EYE...
