Dynojet Power commander v Installation Instructions Manual page 4

FIG.D
FIG.E
FIG.F
22-054 www.powercommander.com
7
8
TPS
9

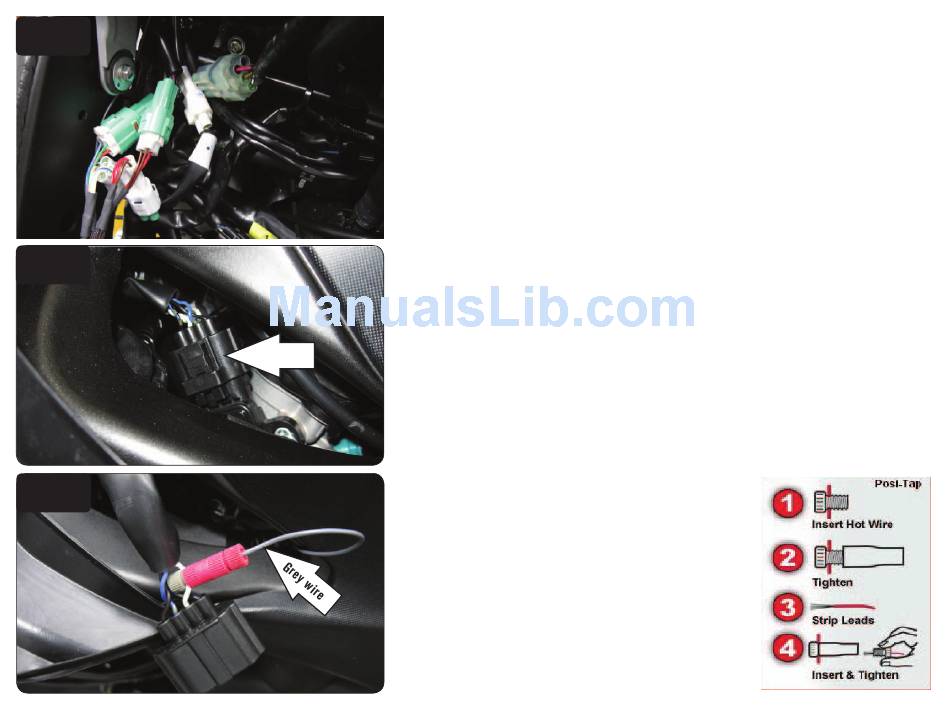

10 Plug the TPS back on to the throttle bodies
Plug the PCV harness in-line of the stock wiring harness and throttle bodies
(Fig. D).
Unplug the wiring harness from the Throttle Position Sensor (Fig. E).
This connector is located on the left side of the throttle bodies underneath the
inner fairing that was removed in step 3.
Using the supplied Posi-tap attach the GREY
wire of the PCV to the WHITE wire of the TPS
harness (Fig. F).
2012 Yamaha R1 PCV - 4
