Display Icon Descriptions for EX650
1. High voltage
2. Battery status
3. Relative mode
4. Auto power off
5. Data hold
6. Units of measure
7. Direct Current
8. Alternating Current
9. Diode
10. Continuity
11. Automatic range
12. Low Impedance mode (Lo Z)
13. Maximum and Minimum memory
14. Non‐Contact Voltage Detector
15. Low Pass Filter (LPF)
16. Temperature units
1 2 3 4 5
7
8
9
10
11
12

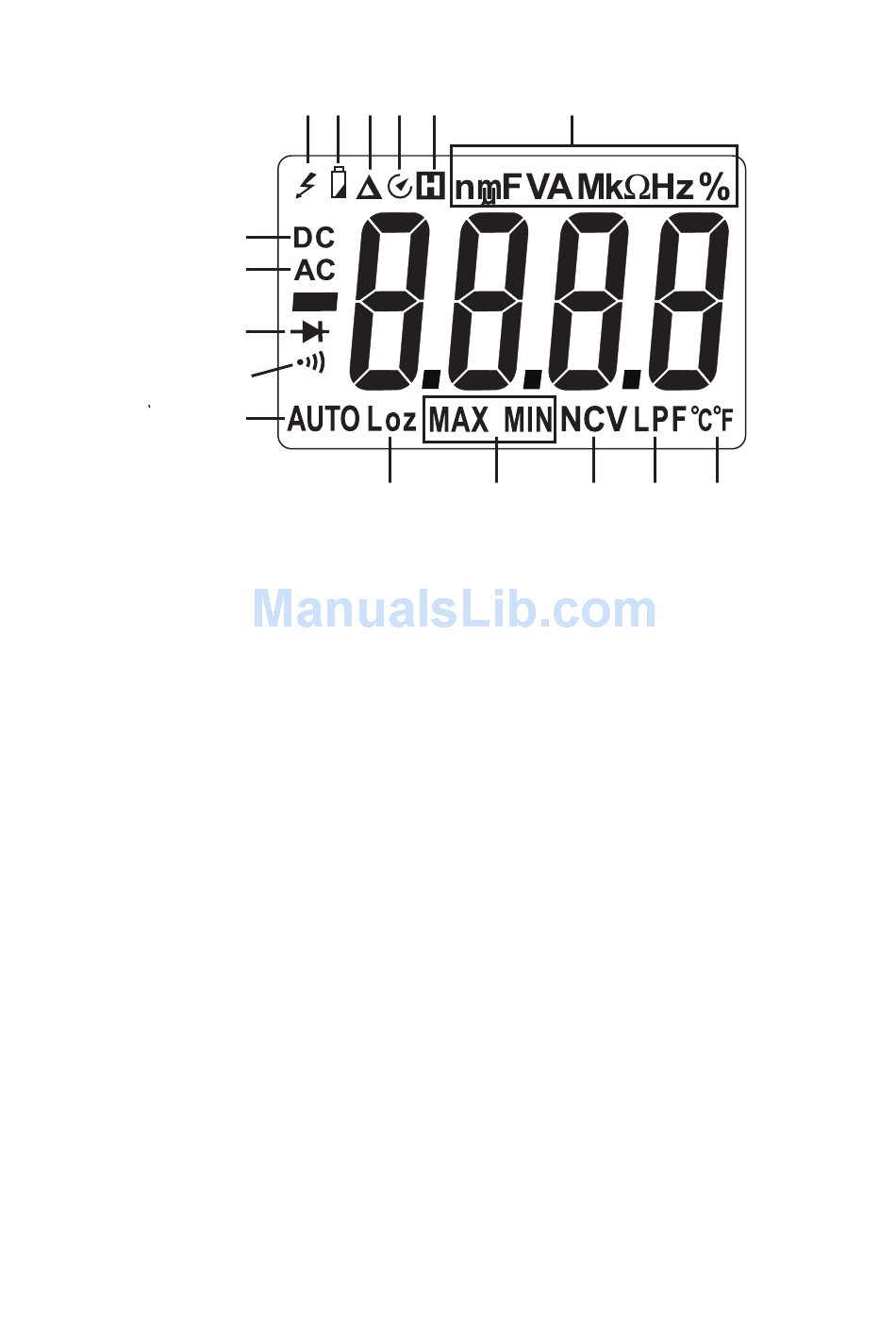

Fig 3‐2 EX650 METER DISPLAY
6
13 14 15 16
7
