Capacitance Measurements
WARNING: To avoid electric shock, remove power to the circuit under test and discharge
the capacitor under test before measuring. Do not test on circuits or devices where 60VDC or
30VAC is present.
1. Set the function switch to the
2. Insert the black test lead banana plug into the negative COM jack
and the red test lead banana plug into the positive
3. Press the M button to select the unit of measure symbol F.
4. Touch the test probe tips across the part under test.
5. Use the Relative mode to compare measurements to a saved, known capacitance value.
See the dedicated Relative mode instructions in this user guide for more detail.
6. Read the capacitance value in the display (bargraph is not available in capacitance mode).
7. The display will indicate the proper decimal point and value.
capacitance position.

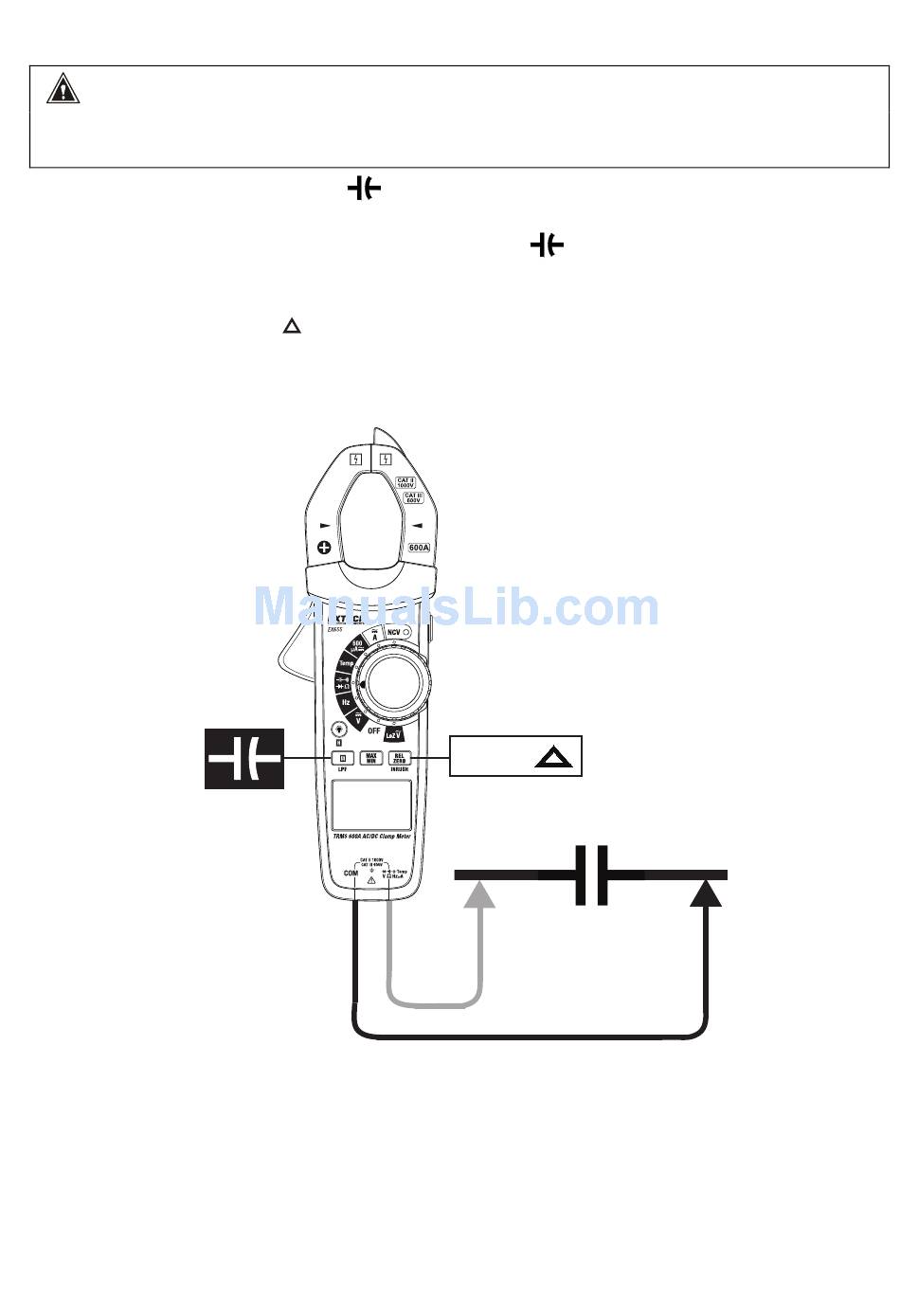

Fig 4‐8 CAPACITANCE MEASUREMENTS
23
jack.
Relative
